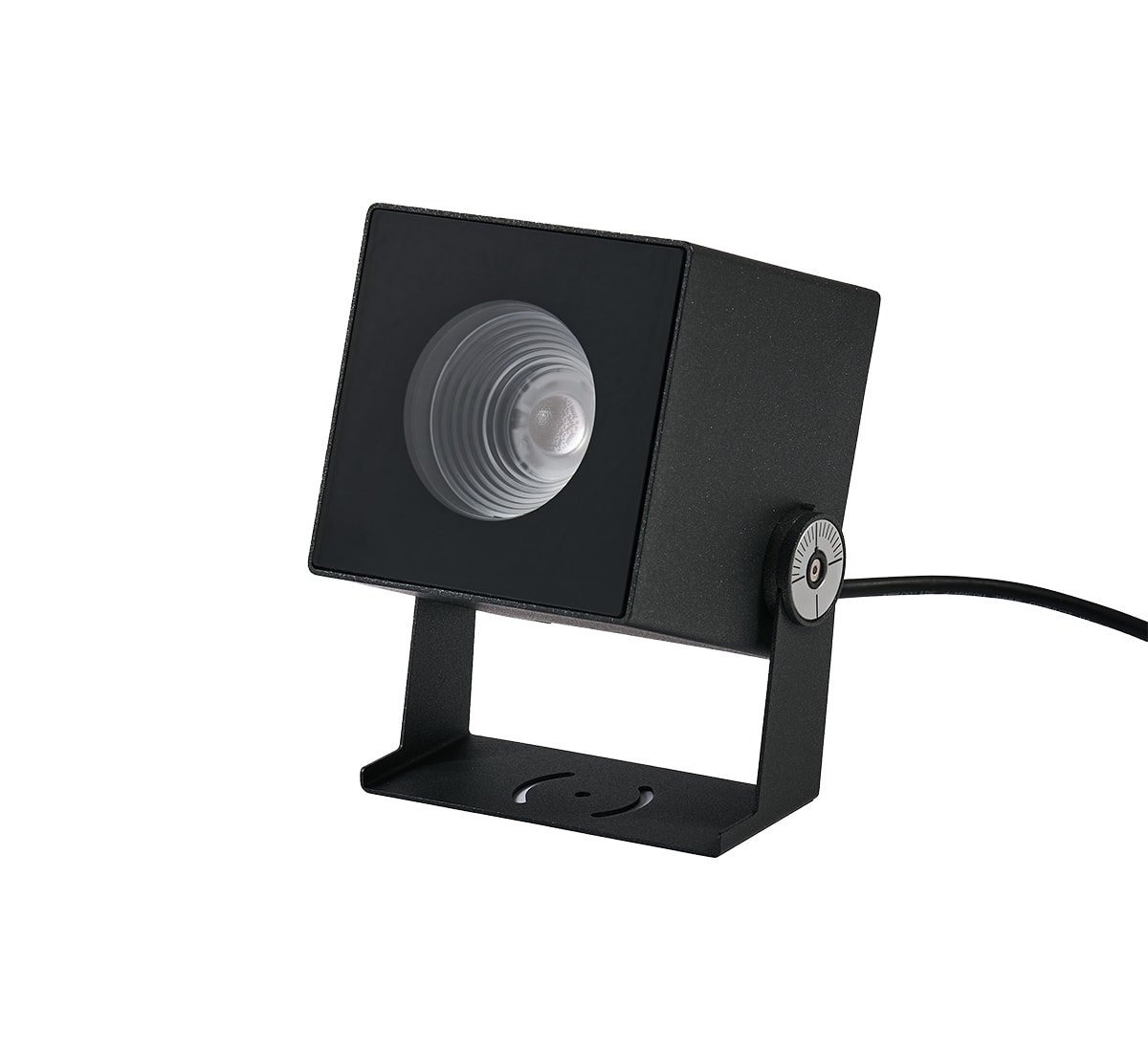

Astralis-S HP
Floodlights
Compact adjustable floodlight with bracket for any surface. Astralis-S HP now offers superior performance thanks to increased wattage, ensuring high power and efficiency for demanding projects while maintaining the range’s accessory flexibility.
Installation Type
Wall, ceiling or ground fixing installation
Body
Die-cast aluminium
Frame
Extra clear transparent tempered glass
Seals
EPDM
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilized polyester powder
Adjustable Floodlight HP - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-AH00/HC50NB |
Narrow/15°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 1900 lm | 2700K |
| LA-AH00/HC50MB |
Medium/25°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 1940 lm | 2700K |
| LA-AH00/HC50WB |
Wide/36°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 2000 lm | 2700K |
| LA-AH00/WC50NB |
Narrow/15°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 1900 lm | 3000K |
| LA-AH00/WC50MB |
Medium/25°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 1940 lm | 3000K |
| LA-AH00/WC50WB |
Wide/36°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 2000 lm | 3000K |
| LA-AH00/NC50NB |
Narrow/15°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 2000 lm | 4000K |
| LA-AH00/NC50MB |
Medium/25°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 2040 lm | 4000K |
| LA-AH00/NC50WB |
Wide/36°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | ON/OFF | 2100 lm | 4000K |
Adjustable Floodlight HP DALI - Built-in driver
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-AH00/HD50NB |
Narrow/15°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1900 lm | 2700K |
| LA-AH00/HD50MB |
Medium/25°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1940 lm | 2700K |
| LA-AH00/HD50WB |
Wide/36°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2000 lm | 2700K |
| LA-AH00/WD50NB |
Narrow/15°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1900 lm | 3000K |
| LA-AH00/WD50MB |
Medium/25°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1940 lm | 3000K |
| LA-AH00/WD50WB |
Wide/36°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2000 lm | 3000K |
| LA-AH00/ND50NB |
Narrow/15°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2000 lm | 4000K |
| LA-AH00/ND50MB |
Medium/25°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2040 lm | 4000K |
| LA-AH00/ND50WB |
Wide/36°
|
I | 66 | 20 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2100 lm | 4000K |
