Followme 70
Ground Recessed
Grazing light step-light with a 70mm diameter. Designed by Litek Architect for single or serial installations, it offers soft or accent effects. The high protection degree makes it perfect for creating emotions through light in total safety.
Installation Type
Ground or wall recessed
Body
Anticorodal turning aluminum 6000 Series, for greater corrosion resistance
Frame
Transparent polycarbonate
Seals
EPDM
Paint
Anti-corrosive UV stabilized polyester powder
Optics

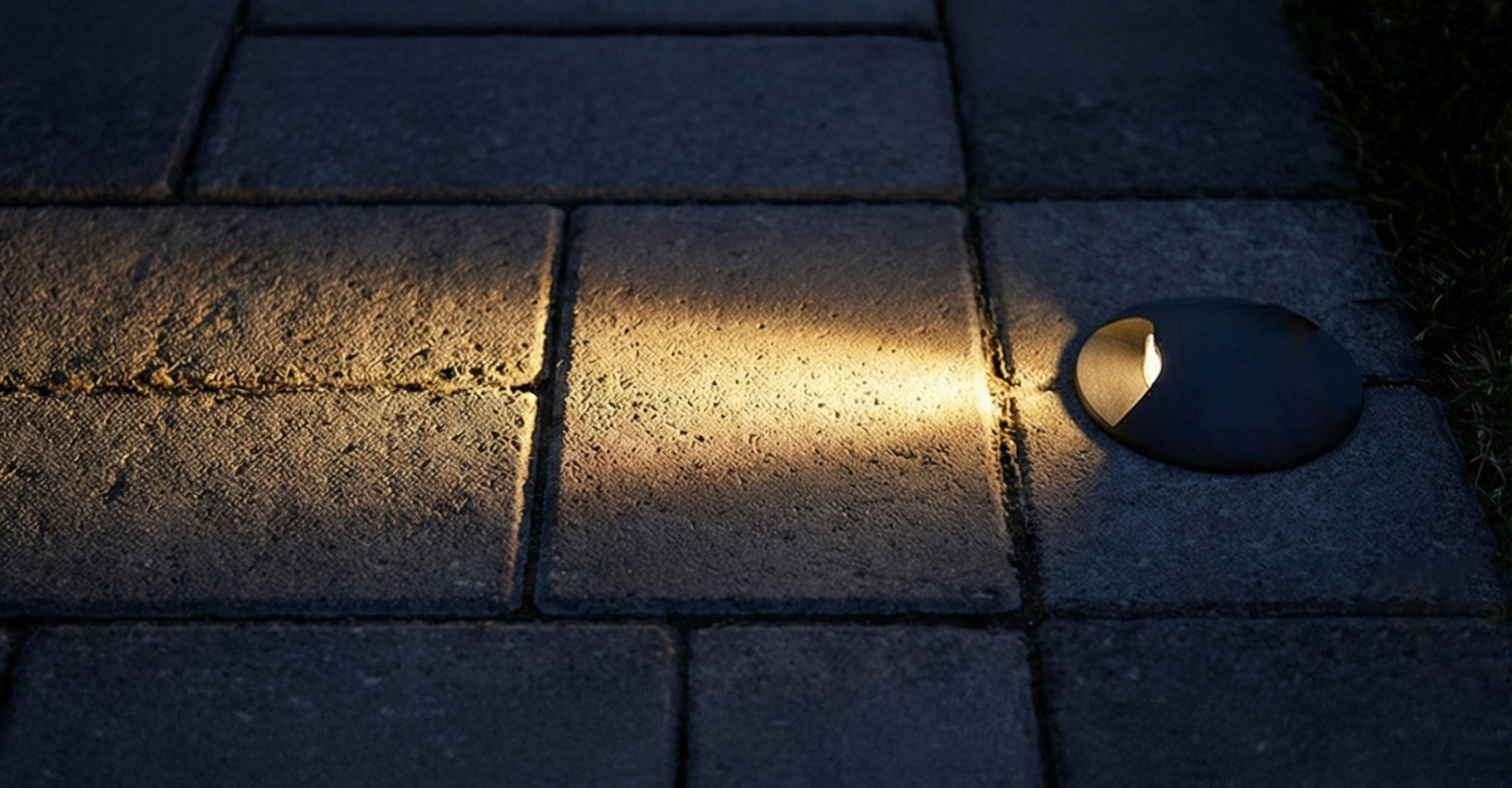

1 Emission
Lamp:
FOLLOWME 70 LA-F700/HRCC1L
Watt:
6W
Center distance between devices:
2m
2 Emissions
Lamp:
FOLLOWME 70 LA-F700/HRCC2L
Watt:
6W
Center distance between devices:
2m
4 Emissions
Lamp:
FOLLOWME 70 LA-F700/HRCC4L
Watt:
6W
Center distance between devices:
2m
Recessed 1 window Ø70 - max 500mA
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-F700/HRCC1L |
Diffused/1 Window
|
III | 67 | 6 W | max 500mA | Dimmable | 41 lm | 2700K |
| LA-F700/WRCC1L |
Diffused/1 Window
|
III | 67 | 6 W | max 500mA | Dimmable | 41 lm | 3000K |
| LA-F700/NRCC1L |
Diffused/1 Window
|
III | 67 | 6 W | max 500mA | Dimmable | 45 lm | 4000K |
Recessed 2 windows Ø70 - max 500mA
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-F700/HRCC2L |
Diffused/2 Windows
|
III | 67 | 6 W | max 500mA | Dimmable | 77 lm | 2700K |
| LA-F700/WRCC2L |
Diffused/2 Windows
|
III | 67 | 6 W | max 500mA | Dimmable | 77 lm | 3000K |
| LA-F700/NRCC2L |
Diffused/2 Windows
|
III | 67 | 6 W | max 500mA | Dimmable | 79 lm | 4000K |
Recessed 4 windows Ø70 - max 500mA
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-F700/HRCC4L |
Diffused/4 Windows
|
III | 67 | 6 W | max 500mA | Dimmable | 81 lm | 2700K |
| LA-F700/WRCC4L |
Diffused/4 Windows
|
III | 67 | 6 W | max 500mA | Dimmable | 81 lm | 3000K |
| LA-F700/NRCC4L |
Diffused/4 Windows
|
III | 67 | 6 W | max 500mA | Dimmable | 85 lm | 4000K |
Recessed 1 window Ø70 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-F700/HRRC1L |
Diffused/1 Window
|
III | 67 | 6 W | 24Vdc | ON/OFF | 41 lm | 2700K |
| LA-F700/WRRC1L |
Diffused/1 Window
|
III | 67 | 6 W | 24Vdc | ON/OFF | 41 lm | 3000K |
| LA-F700/NRRC1L |
Diffused/1 Window
|
III | 67 | 6 W | 24Vdc | ON/OFF | 45 lm | 4000K |
Recessed 2 windows Ø70 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-F700/HRRC2L |
Diffused/2 Windows
|
III | 67 | 6 W | 24Vdc | ON/OFF | 77 lm | 2700K |
| LA-F700/WRRC2L |
Diffused/2 Windows
|
III | 67 | 6 W | 24Vdc | ON/OFF | 77 lm | 3000K |
| LA-F700/NRRC2L |
Diffused/2 Windows
|
III | 67 | 6 W | 24Vdc | ON/OFF | 79 lm | 4000K |
Recessed 4 windows Ø70 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-F700/HRRC4L |
Diffused/4 Windows
|
III | 67 | 6 W | 24Vdc | ON/OFF | 81 lm | 2700K |
| LA-F700/WRRC4L |
Diffused/4 Windows
|
III | 67 | 6 W | 24Vdc | ON/OFF | 81 lm | 3000K |
| LA-F700/NRRC4L |
Diffused/4 Windows
|
III | 67 | 6 W | 24Vdc | ON/OFF | 85 lm | 4000K |
