Plana
Wall
Ultra-slim rectangular wall lamp for indoors and outdoors. Dedicated optics for differentiated beams enhances luminous efficiency and design possibilities, while maintaining the line’s signature minimalist aesthetic.
Installation Type
Wall installation
Body
Die-cast aluminium
Frame
Extra clear transparent tempered glass
Seals
EPDM
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilized polyester powder
Wall luminaire DALI Single Emission - 12W
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PN00/HD35OB |

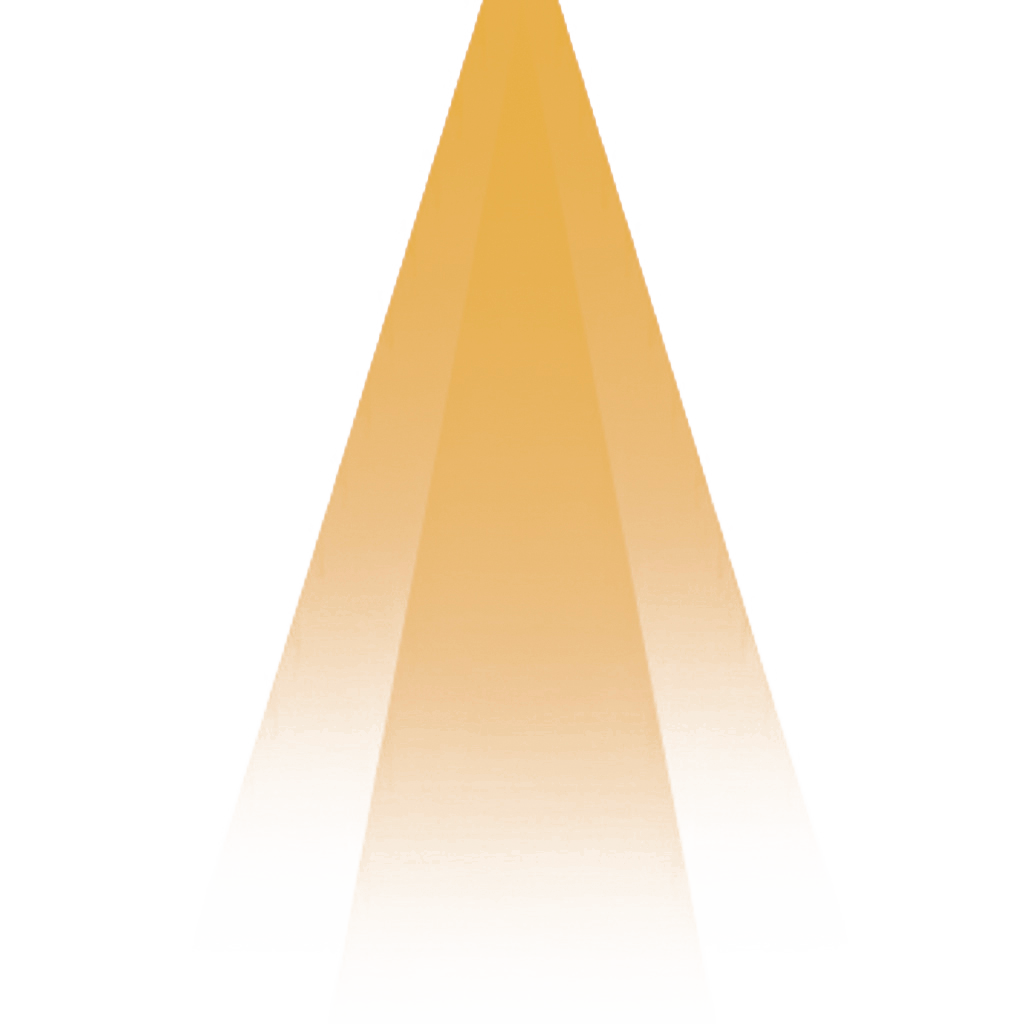

Oval/40°100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1330 lm | 2700K |
| LA-PN00/HD35SW |

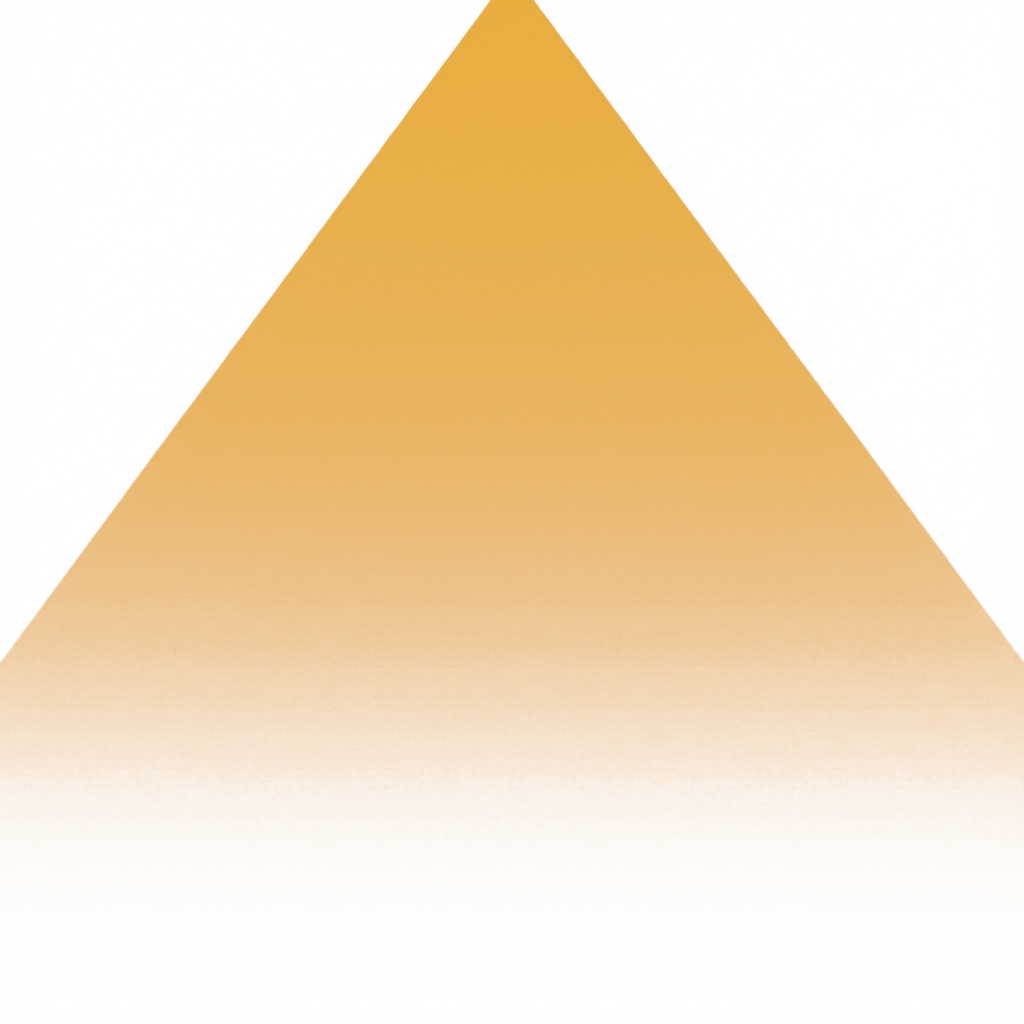

Diffused/110°x100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1330 lm | 2700K |
| LA-PN00/WD35OB |
Oval/40°100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1400 lm | 3000K |
| LA-PN00/WD35SW |
Diffused/110°x100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1400 lm | 3000K |
| LA-PN00/ND35OB |
Oval/40°100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1470 lm | 4000K |
| LA-PN00/ND35SW |
Diffused/110°x100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1470 lm | 4000K |
Wall luminaire DALI Single Emission - 24W
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PN00/HD70OB |
Oval/40°100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2565 lm | 2700K |
| LA-PN00/HD70SW |
Diffused/110°x100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2565 lm | 2700K |
| LA-PN00/WD70OB |
Oval/40°100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2700 lm | 3000K |
| LA-PN00/WD70SW |
Diffused/110°x100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2700 lm | 3000K |
| LA-PN00/ND70OB |
Oval/40°100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2835 lm | 4000K |
| LA-PN00/ND70SW |
Diffused/110°x100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2835 lm | 4000K |
Wall luminaire Single Emission - 12W
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PN00/HR35OB |
Oval/40°100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | ON/OFF | 1330 lm | 2700K |
| LA-PN00/HR35SW |
Diffused/110°x100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | ON/OFF | 1330 lm | 2700K |
| LA-PN00/WR35OB |
Oval/40°100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | ON/OFF | 1400 lm | 3000K |
| LA-PN00/WR35SW |
Diffused/110°x100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | ON/OFF | 1400 lm | 3000K |
| LA-PN00/NR35OB |
Oval/40°100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | ON/OFF | 1470 lm | 4000K |
| LA-PN00/NR35SW |
Diffused/110°x100°
|
I | 65 | 12 W | 220-240Vac 50/60Hz | ON/OFF | 1470 lm | 4000K |
Wall luminaire Single Emission - 24W
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PN00/HR70OB |
Oval/40°100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | ON/OFF | 2565 lm | 2700K |
| LA-PN00/HR70SW |
Diffused/110°x100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | ON/OFF | 2565 lm | 2700K |
| LA-PN00/WR70OB |
Oval/40°100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | ON/OFF | 2700 lm | 3000K |
| LA-PN00/WR70SW |
Diffused/110°x100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | ON/OFF | 2700 lm | 3000K |
| LA-PN00/NR70OB |
Oval/40°100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | ON/OFF | 2835 lm | 4000K |
| LA-PN00/NR70SW |
Diffused/110°x100°
|
I | 65 | 24 W | 220-240Vac 50/60Hz | ON/OFF | 2835 lm | 4000K |
