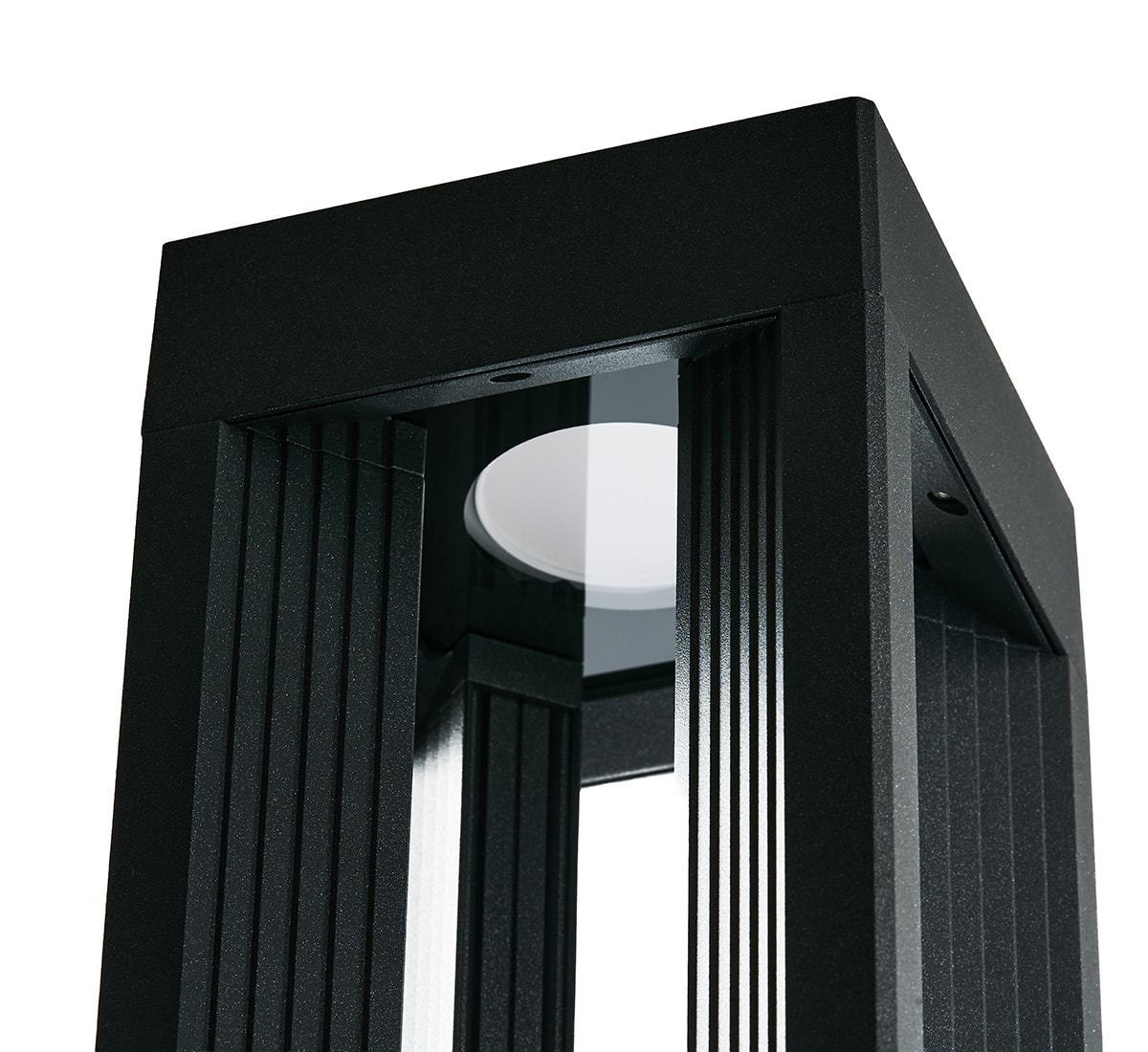

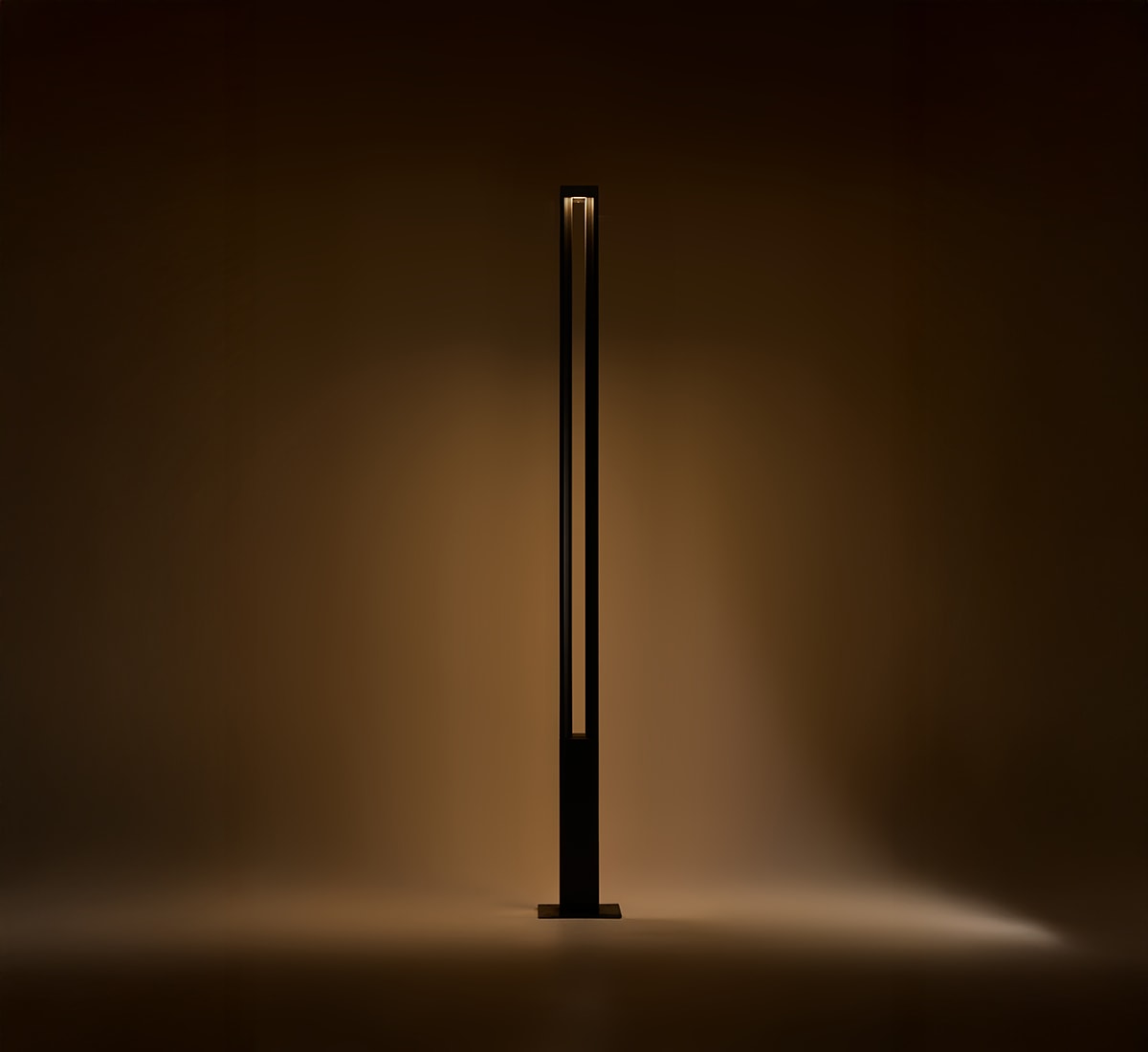

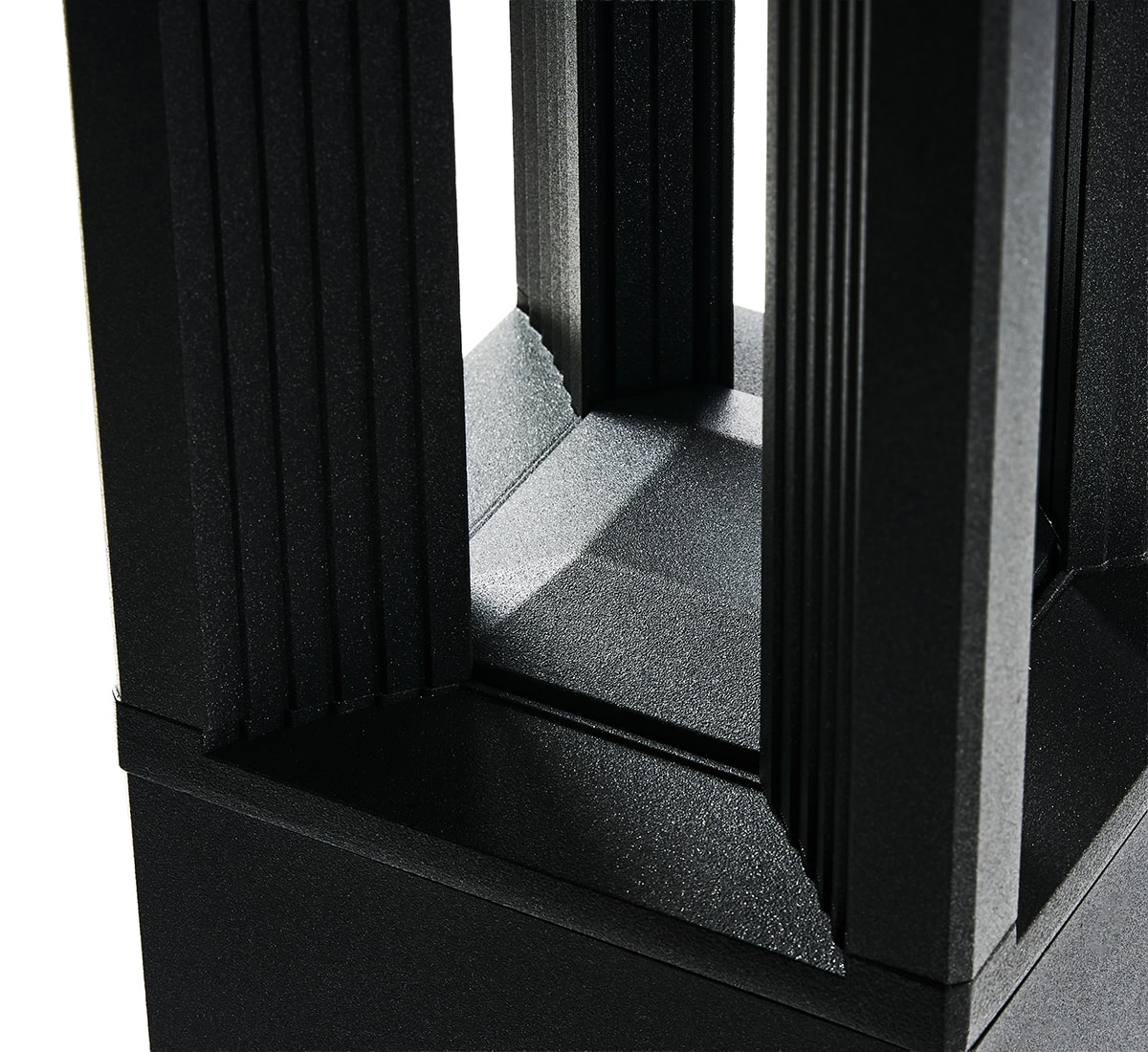

Plaza
Small Poles, Urban Lighting
Column luminaire for ground installation. The diffused light source at the top ensures optimal ground light distribution and excellent glare control for pedestrian comfort.
Installation Type
Ground installation
Body
Pole: Extruded aluminium - Body/Base: Die-cast aluminium
Frame
Sandblasted glass
Seals
EPDM
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilized polyester powder
Bollard DALI 4 Ways H. 680
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZB1/WD35VS |

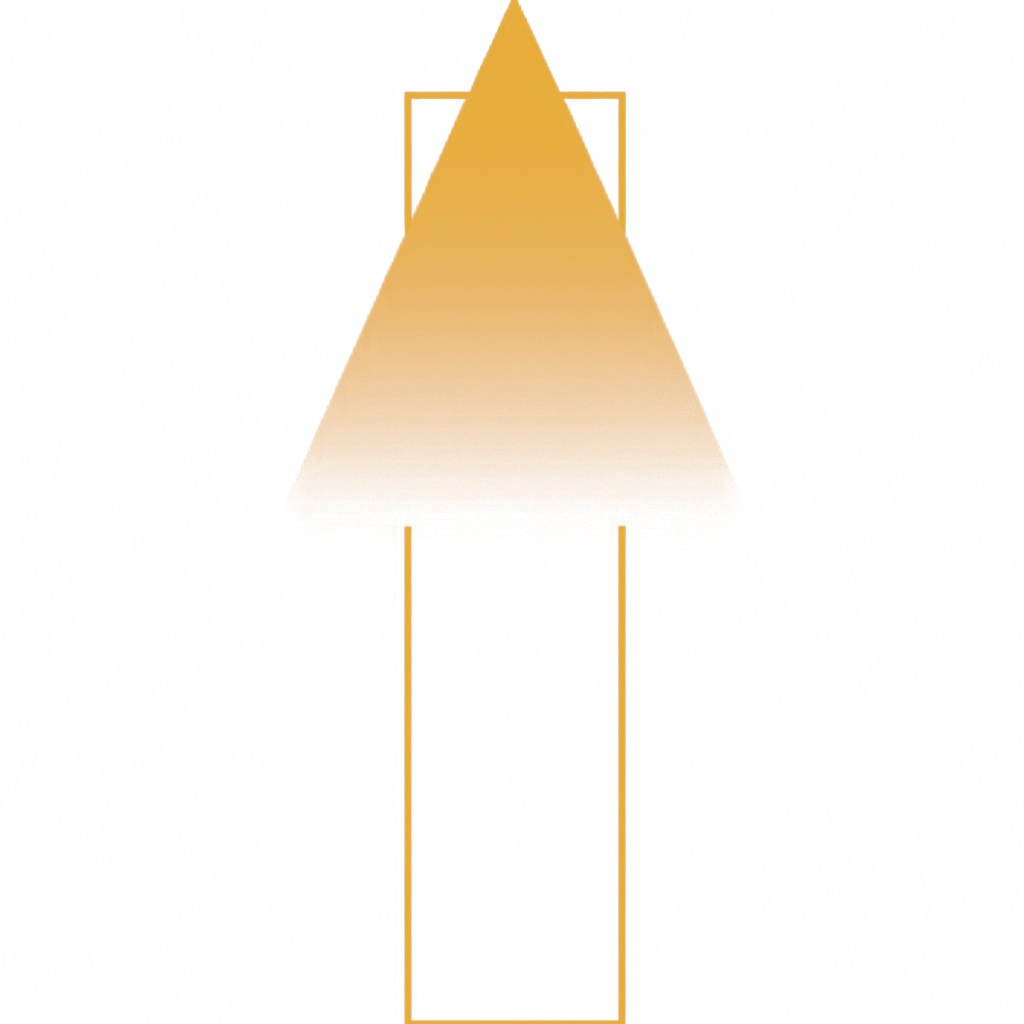

Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1120 lm | 3000K |
| LA-PZB1/ND35VS |
Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1200 lm | 4000K |
Bollard 4 Ways H. 680
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZB1/WR35VS |
Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | ON/OFF | 1120 lm | 3000K |
| LA-PZB1/NR35VS |
Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | ON/OFF | 1200 lm | 4000K |
Pole 4 Ways H. 3000
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZU2/WC50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | ON/OFF | 2800 lm | 3000K |
| LA-PZB2/NC50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | ON/OFF | 2980 lm | 4000K |

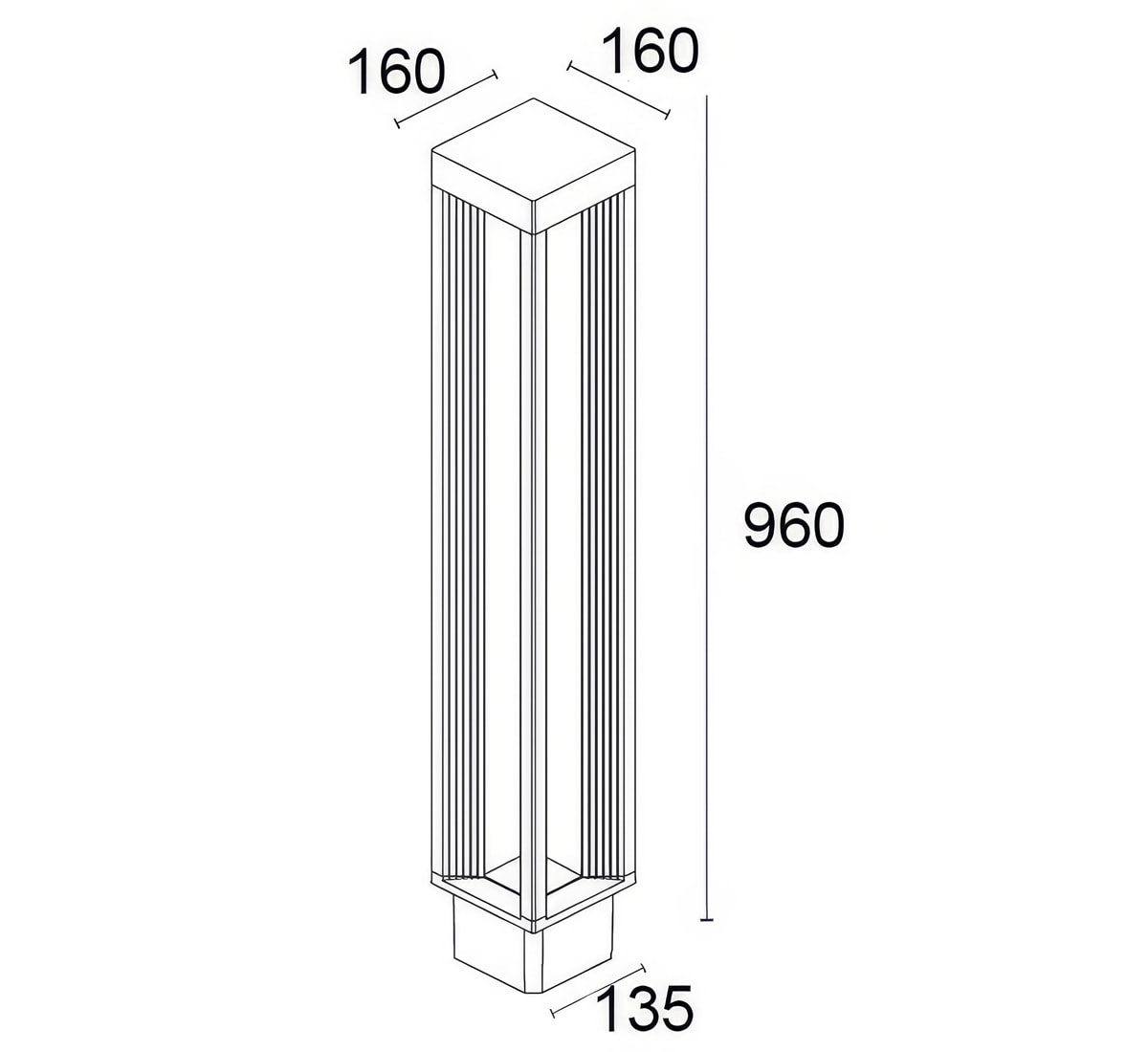

Bollard DALI 4 Ways H. 960
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZB2/WD35VS |
Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1120 lm | 3000K |
| LA-PZB2/ND35VS |
Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | DALI-2 integrated | 1200 lm | 4000K |
Bollard 4 Ways H. 960
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZB2/WR35VS |
Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | ON/OFF | 1120 lm | 3000K |
| LA-PZB2/NR35VS |
Diffused >80°
|
I | 65 | 14 W | 220-240Vac 50/60Hz | ON/OFF | 1200 lm | 4000K |

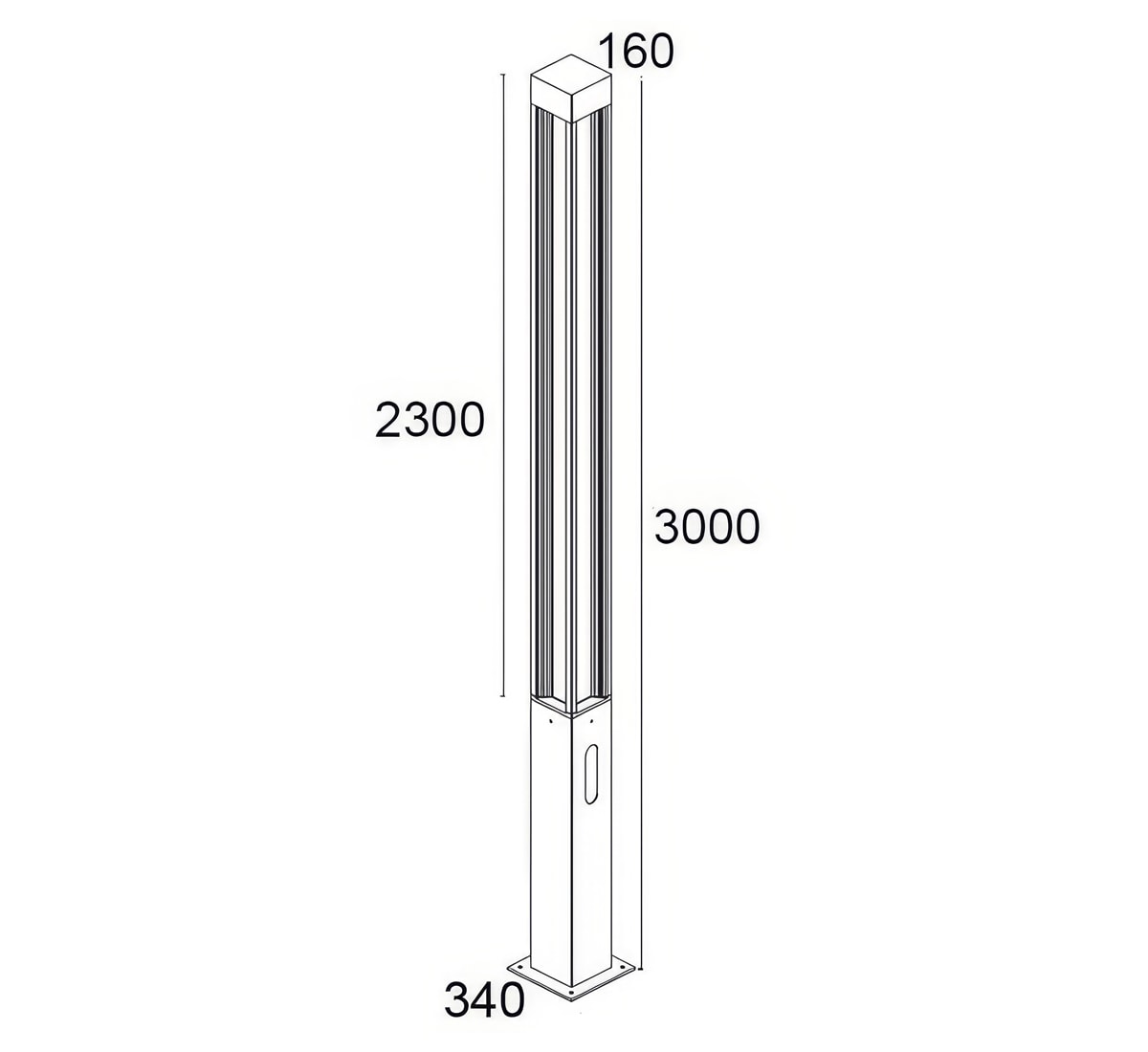

Pole DALI 4 Ways H. 3000
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZU2/WD50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2800 lm | 3000K |
| LA-PZU2/ND50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2980 lm | 4000K |
Pole 4 Ways H. 4000
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZU4/WC50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | ON/OFF | 2800 lm | 3000K |
| LA-PZU4/NC50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | ON/OFF | 2980 lm | 4000K |
Pole DALI 4 Ways H. 4000
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PZU4/WD50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2800 lm | 3000K |
| LA-PZU4/ND50EW |
Diffused >80°
|
I | 65 | 35 W | 220-240Vac 50/60Hz | DALI-2 integrated | 2980 lm | 4000K |
