Pulsar Bollard
Small Poles
Bollard version of the Pulsar series with a 35mm diameter. Available in three heights, it integrates harmoniously into hedges and walkways, offering functional and emotional lighting in refined landscape contexts.
Installation Type
Ground installation
Body
Anticorodal turning aluminum 6000 Series, for greater corrosion resistance
Frame
Extra clear transparent tempered glass
Seals
EPDM
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilized polyester powder
Adjustable Small Pole H. 350 - max 700mA
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PBF1/HRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 170 lm | 2700K |
| LA-PBF1/HRCCMB |

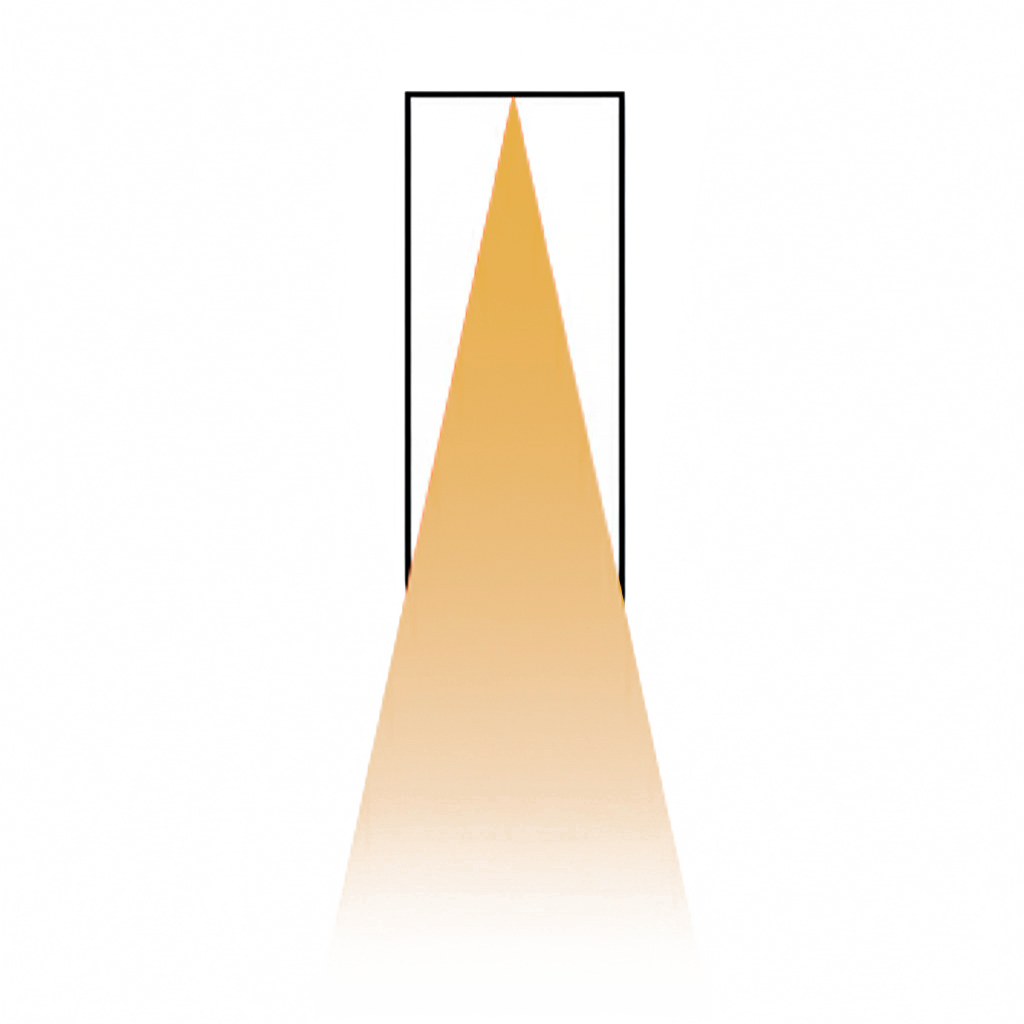

Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 165 lm | 2700K |
| LA-PBF1/HRCCWB |

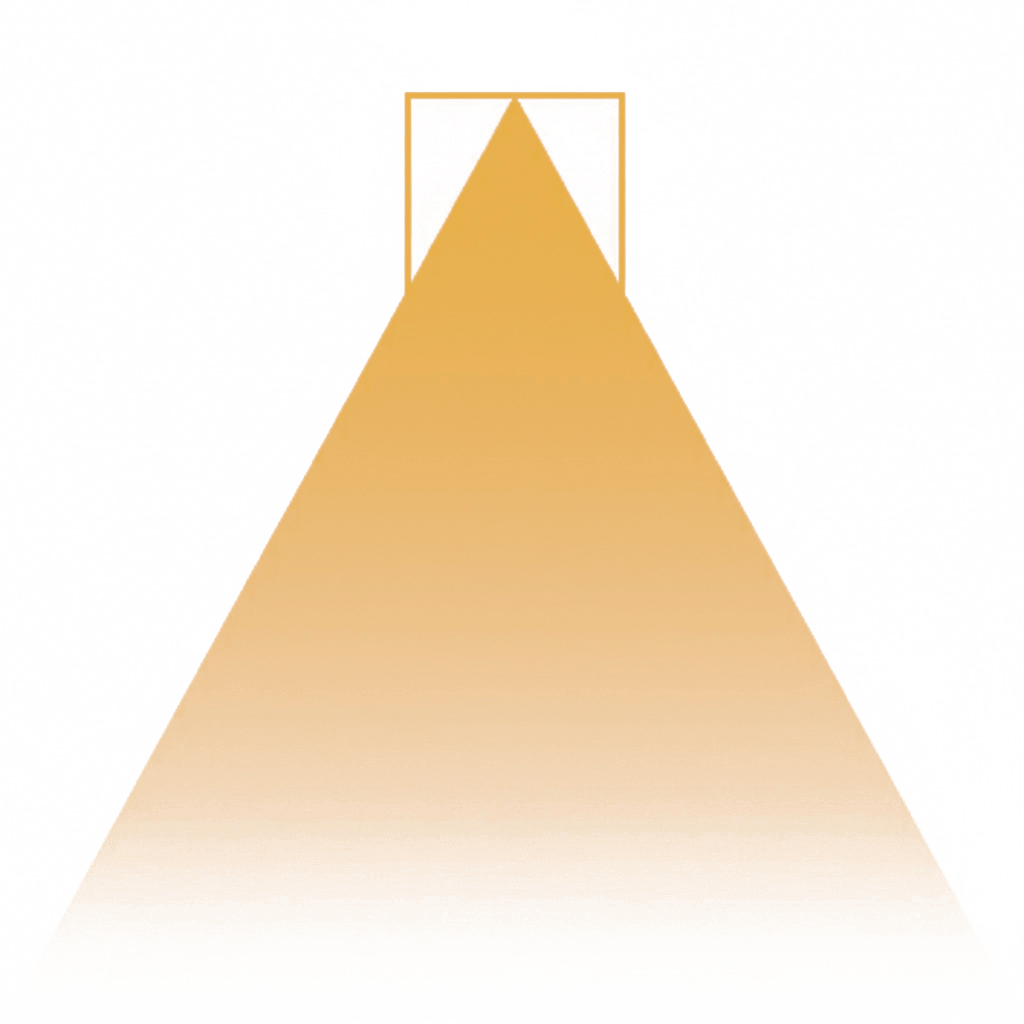

Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 162 lm | 2700K |
| LA-PBF1/WRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 170 lm | 3000K |
| LA-PBF1/WRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 165 lm | 3000K |
| LA-PBF1/WRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 162 lm | 3000K |
| LA-PBF1/NRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 188 lm | 4000K |
| LA-PBF1/NRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 183 lm | 4000K |
| LA-PBF1/NRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 180 lm | 4000K |
Adjustable Small Pole H. 350 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PBF1/HRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 130 lm | 2700K |
| LA-PBF1/HRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 125 lm | 2700K |
| LA-PBF1/HRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 120 lm | 2700K |
| LA-PBF1/WRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 130 lm | 3000K |
| LA-PBF1/WRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 125 lm | 3000K |
| LA-PBF1/WRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 120 lm | 3000K |
| LA-PBF1/NRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 150 lm | 4000K |
| LA-PBF1/NRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 145 lm | 4000K |
| LA-PBF1/NRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 140 lm | 4000K |
Adjustable Small Pole H. 650 - max 700mA
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PBF2/HRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 170 lm | 2700K |
| LA-PBF2/HRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 165 lm | 2700K |
| LA-PBF2/HRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 162 lm | 2700K |
| LA-PBF2/WRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 170 lm | 3000K |
| LA-PBF2/WRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 165 lm | 3000K |
| LA-PBF2/WRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 162 lm | 3000K |
| LA-PBF2/NRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 188 lm | 4000K |
| LA-PBF2/NRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 183 lm | 4000K |
| LA-PBF2/NRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 180 lm | 4000K |
Adjustable Small Pole H. 650 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PBF2/HRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 130 lm | 2700K |
| LA-PBF2/HRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 125 lm | 2700K |
| LA-PBF2/HRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 120 lm | 2700K |
| LA-PBF2/WRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 130 lm | 3000K |
| LA-PBF2/WRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 125 lm | 3000K |
| LA-PBF2/WRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 120 lm | 3000K |
| LA-PBF2/NRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 150 lm | 4000K |
| LA-PBF2/NRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 145 lm | 4000K |
| LA-PBF2/NRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 140 lm | 4000K |
Adjustable Small Pole H. 950 - max 700mA
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PBF3/HRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 170 lm | 2700K |
| LA-PBF3/HRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 165 lm | 2700K |
| LA-PBF3/HRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 162 lm | 2700K |
| LA-PBF3/WRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 170 lm | 3000K |
| LA-PBF3/WRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 165 lm | 3000K |
| LA-PBF3/WRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 162 lm | 3000K |
| LA-PBF3/NRCCNB |
Narrow/15°
|
III | 66 | 2 W | max 700mA | Dimmable | 188 lm | 4000K |
| LA-PBF3/NRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 183 lm | 4000K |
| LA-PBF3/NRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 180 lm | 4000K |
Adjustable Small Pole H. 950 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PBF3/HRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 130 lm | 2700K |
| LA-PBF3/HRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 125 lm | 2700K |
| LA-PBF3/HRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 120 lm | 2700K |
| LA-PBF3/WRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 130 lm | 3000K |
| LA-PBF3/WRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 125 lm | 3000K |
| LA-PBF3/WRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 120 lm | 3000K |
| LA-PBF3/NRRCNB |
Narrow/15°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 150 lm | 4000K |
| LA-PBF3/NRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 145 lm | 4000K |
| LA-PBF3/NRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 140 lm | 4000K |
