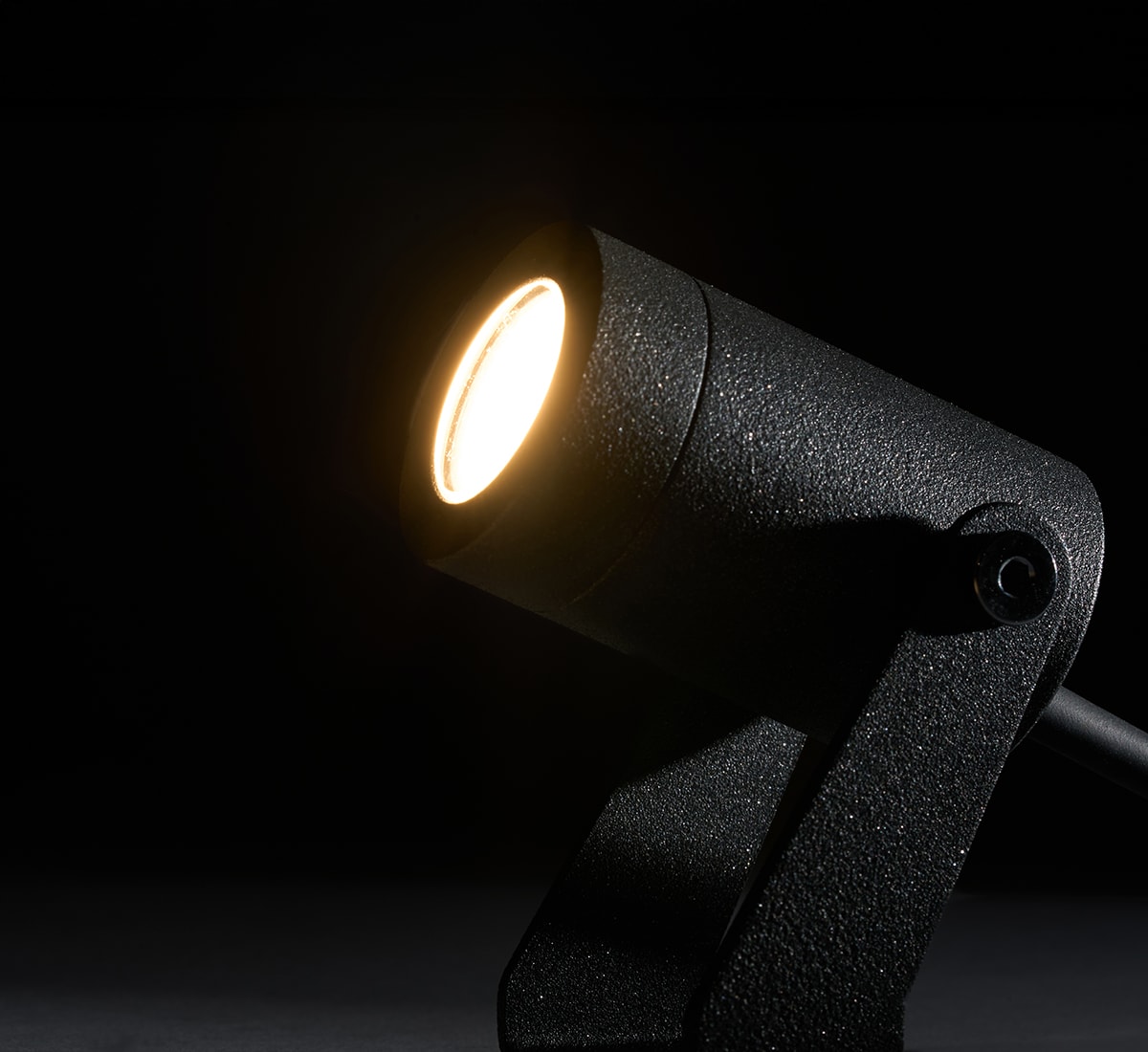

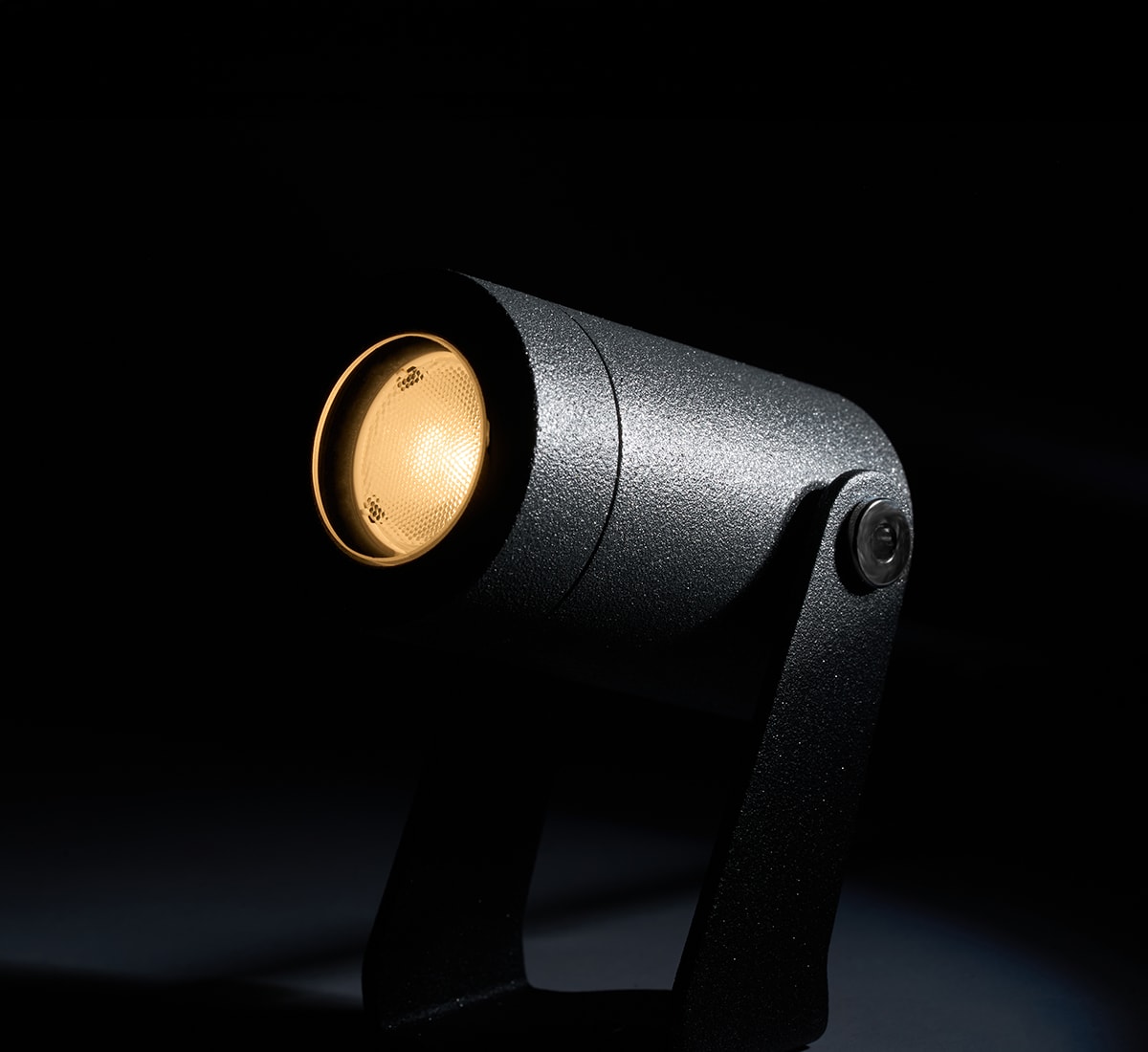

Pulsar Mini
Floodlights
Series of compact floodlights (available in various diameters) with a minimalist design. Pulsar’s total flexibility enhances gardens, architectural elements, and green areas, making light the protagonist of space perception.
Installation Type
Wall, ceiling or ground fixing installation
Body
Anticorodal turning aluminum 6000 Series, for greater corrosion resistance
Frame
Extra clear transparent tempered glass
Seals
EPDM
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilized polyester powder
Optics
Narrow emission
Lamp:
PULSAR MINI LA-PM00/HRCCNB
Watt:
2W
Type of optics:
Flood 14°
Installation height:
4m
Center distance between devices:
4m
Narrow emission
Lamp:
PULSAR MINI LA-PM00/HRCCMB
Watt:
2W
Type of optics:
Flood 30°
Installation height:
4m
Center distance between devices:
4m
Wide emission
Lamp:
PULSAR MINI LA-PM00/HRCCWB
Watt:
2W
Type of optics:
Wide Flood 40°
Installation height:
4m
Center distance between devices:
4m
Adjustable Floodlight - max 700mA
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PM00/HRCCNB |
Narrow/14°
|
III | 66 | 2 W | max 700mA | Dimmable | 240 lm | 2700K |
| LA-PM00/HRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 230 lm | 2700K |
| LA-PM00/HRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 230 lm | 2700K |
| LA-PM00/WRCCNB |
Narrow/14°
|
III | 66 | 2 W | max 700mA | Dimmable | 240 lm | 3000K |
| LA-PM00/WRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 230 lm | 3000K |
| LA-PM00/WRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 230 lm | 3000K |
| LA-PM00/NRCCNB |
Narrow/14°
|
III | 66 | 2 W | max 700mA | Dimmable | 250 lm | 4000K |
| LA-PM00/NRCCMB |
Medium/30°
|
III | 66 | 2 W | max 700mA | Dimmable | 240 lm | 4000K |
| LA-PM00/NRCCWB |
Wide/40°
|
III | 66 | 2 W | max 700mA | Dimmable | 240 lm | 4000K |
Adjustable Floodlight - 24Vdc
| Code | Emission | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-PM00/HRRCNB |
Narrow/14°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 220 lm | 2700K |
| LA-PM00/HRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 210 lm | 2700K |
| LA-PM00/HRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 210 lm | 2700K |
| LA-PM00/WRRCNB |
Narrow/14°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 220 lm | 3000K |
| LA-PM00/WRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 210 lm | 3000K |
| LA-PM00/WRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 210 lm | 3000K |
| LA-PM00/NRRCNB |
Narrow/14°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 230 lm | 4000K |
| LA-PM00/NRRCMB |
Medium/30°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 220 lm | 4000K |
| LA-PM00/NRRCWB |
Wide/40°
|
III | 66 | 2 W | 24Vdc | ON/OFF | 220 lm | 4000K |
