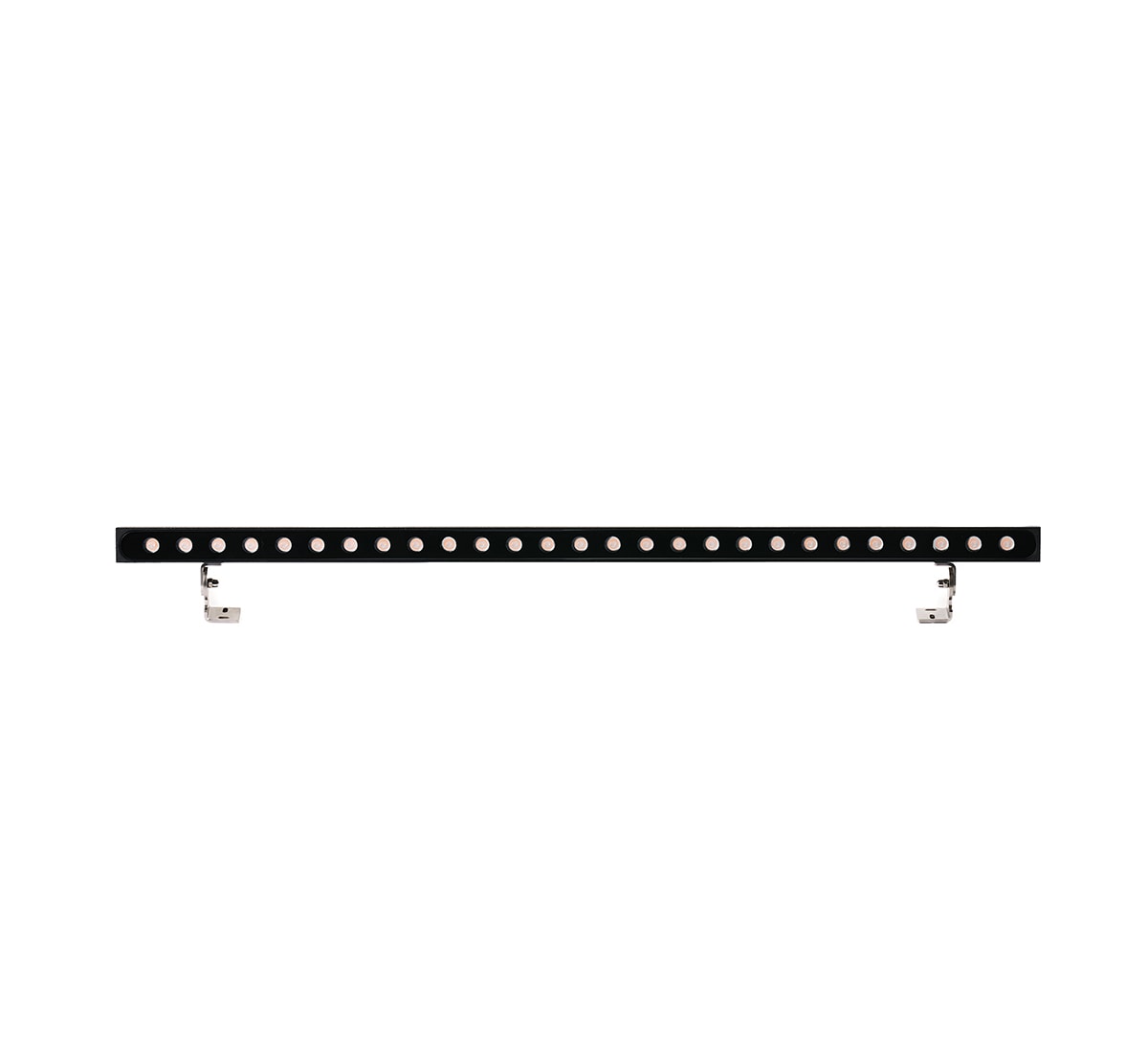

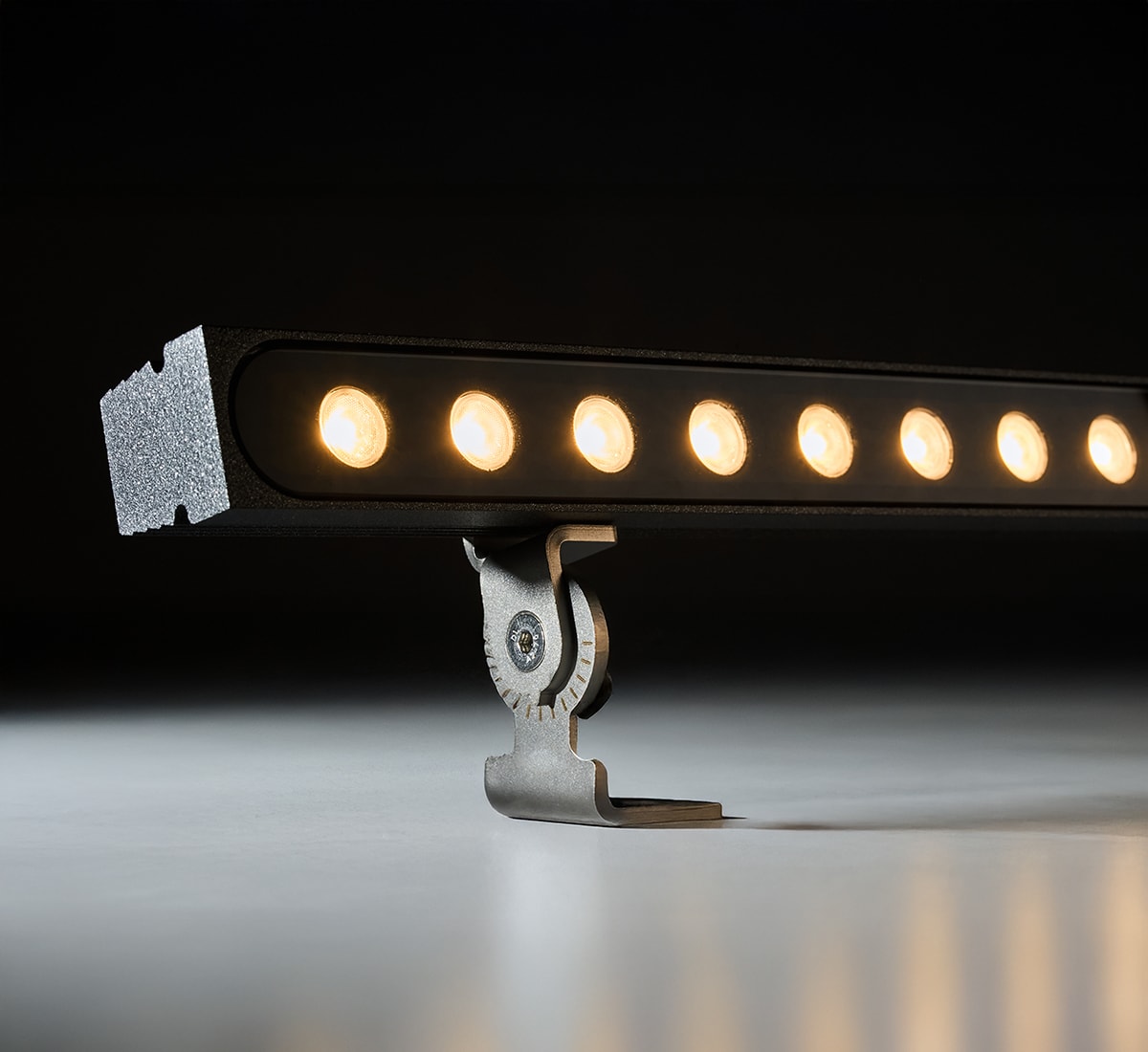

Wall Mini
Floodlights
The Wall Mini linear system with advanced RGBW technology. Microchip-based DMX control ensures perfect color management and constant power, ideal for dynamic lighting scenes on large surfaces.
Installation Type
Wall, ceiling or ground fixing installation
Body
Extruded aluminium
Frame
Extra clear transparent tempered glass 4 mm
Screws
Stainless steel A2
Paint
Anti-corrosive UV stabilized polyester powder
Linear Floodlight with Lens L. 530 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-LM11/HPRCNB |
Narrow/20°
|
III | 67 | 8 W | 24Vdc | Dimmable | 737 lm | 2700K |
| LA-LM11/HPRCWB |
Wide/45°
|
III | 67 | 8 W | 24Vdc | Dimmable | 737 lm | 2700K |
| LA-LM11/HPRCOB |
Oval/20°x40°
|
III | 67 | 8 W | 24Vdc | Dimmable | 737 lm | 2700K |
| LA-LM11/WPRCNB |
Narrow/20°
|
III | 67 | 8 W | 24Vdc | Dimmable | 785 lm | 3000K |
| LA-LM11/WPRCWB |
Wide/45°
|
III | 67 | 8 W | 24Vdc | Dimmable | 785 lm | 3000K |
| LA-LM11/WPRCOB |
Oval/20°x40°
|
III | 67 | 8 W | 24Vdc | Dimmable | 785 lm | 3000K |
| LA-LM11/NPRCNB |
Narrow/20°
|
III | 67 | 8 W | 24Vdc | Dimmable | 840 lm | 4000K |
| LA-LM11/NPRCWB |
Wide/45°
|
III | 67 | 8 W | 24Vdc | Dimmable | 840 lm | 4000K |
| LA-LM11/NPRCOB |
Oval/20°x40°
|
III | 67 | 8 W | 24Vdc | Dimmable | 840 lm | 4000K |
Linear Floodlight Diffuse Emission L. 530 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-LM11/HRRCVS |
Diffused
|
III | 67 | 8 W | 24Vdc | Dimmable | 179 lm | 2700K |
| LA-LM11/WRRCVS |
Diffused
|
III | 67 | 8 W | 24Vdc | Dimmable | 280 lm | 3000K |
| LA-LM11/NRRCVS |
Diffused
|
III | 67 | 8 W | 24Vdc | Dimmable | 300 lm | 4000K |
Linear Floodlight with Lens L. 780 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-LM12/HPRCNB |
Narrow/20°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1109 lm | 2700K |
| LA-LM12/HPRCWB |
Wide/45°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1109 lm | 2700K |
| LA-LM12/HPRCOB |
Oval/20°x40°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1109 lm | 2700K |
| LA-LM12/WPRCNB |
Narrow/20°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1180 lm | 3000K |
| LA-LM12/WPRCWB |
Wide/45°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1180 lm | 3000K |
| LA-LM12/WPRCOB |
Oval/20°x40°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1180 lm | 3000K |
| LA-LM12/NPRCNB |
Narrow/20°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1260 lm | 4000K |
| LA-LM12/NPRCWB |
Wide/45°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1260 lm | 4000K |
| LA-LM12/NPRCOB |
Oval/20°x40°
|
III | 67 | 12 W | 24Vdc | Dimmable | 1260 lm | 4000K |
Linear Floodlight Diffuse Emission L. 780 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-LM12/HRRCVS |
Diffused
|
III | 67 | 12 W | 24Vdc | Dimmable | 394 lm | 2700K |
| LA-LM12/WRRCVS |
Diffused
|
III | 67 | 12 W | 24Vdc | Dimmable | 420 lm | 3000K |
| LA-LM12/NRRCVS |
Diffused
|
III | 67 | 12 W | 24Vdc | Dimmable | 450 lm | 4000K |
Linear Floodlight with Lens L. 1030 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-LM13/HPRCNB |
Narrow/20°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1479 lm | 2700K |
| LA-LM13/HPRCWB |
Wide/45°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1479 lm | 2700K |
| LA-LM13/HPRCOB |
Oval/20°x40°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1479 lm | 2700K |
| LA-LM13/WPRCNB |
Narrow/20°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1574 lm | 3000K |
| LA-LM13/WPRCWB |
Wide/45°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1574 lm | 3000K |
| LA-LM13/WPRCOB |
Oval/20°x40°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1574 lm | 3000K |
| LA-LM13/NPRCNB |
Narrow/20°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1678 lm | 4000K |
| LA-LM13/NPRCWB |
Wide/45°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1678 lm | 4000K |
| LA-LM13/NPRCOB |
Oval/20°x40°
|
III | 67 | 16 W | 24Vdc | Dimmable | 1678 lm | 4000K |
Linear Floodlight Diffuse Emission L. 1030 - 24Vdc
| Code | Beam | Class | IP | W | Power supply | Control | Fixture | CCT LED |
|---|---|---|---|---|---|---|---|---|
| LA-LM13/HRRCVS |
Diffused
|
III | 67 | 16 W | 24Vdc | Dimmable | 526 lm | 2700K |
| LA-LM13/WRRCVS |
Diffused
|
III | 67 | 16 W | 24Vdc | Dimmable | 560 lm | 3000K |
| LA-LM13/NRRCVS |
Diffused
|
III | 67 | 16 W | 24Vdc | Dimmable | 600 lm | 4000K |
