Parkò mini

dowload pdf

parko-mini

Design Arch. D. De Gregori

A highly efficient, stylish LED light fixture for city centers, green areas and car parks (designed by arch. D. De Gregori). Comes with a protective flat
diffuser with a 5 mm tempered extra-clear security glass, an anti-rust treatment and painted with long lasting outdoor polyester powder in “Dark Smoke” and embossed RAL 7016 (“Silver” RAL 9006 colour is available on request). Adapted for installation on a d.60 mm pole, it has the standard neutral shade of light (4000° K), warm (3000° K) or very warm (2700° K), and full cut-off of light emissions according to the law for eliminating light pollution. The ceramic-based Power-LED is for direct reflow soldering, electrically isolated from the thermal dissipation system, it is driven by a constant current Vdc 350 mA system. There are several functions including the Litek heat dissipation system, TCS (Thermal Cooling System) and the temperature control module MTC. Power supply: 110/260Volt 50/60 Hz. Minimum grade of protection: IP54. Stainless steel screws.

Applications
Avenues, parks and gardens, cycle paths.
Suggested installation height between 2.5 and 5 m.

Characteristics
• Steel body
• Flat protective diffuser with 5 mm extra clear tempered glass for security
• Cataphoresis protective treatment
• Polyester powder paint in “Dark Smoke” and embossed RAL 7016 (“Silver” RAL 9006 colour is available on request)
• Grade of protection IP54
• Insulation Class I or II
• TCS - Thermal Cooling System
• Full cut-off
• Stainless steel or insulated screws
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Dimensions: 400 x 300 x 110 mm. Weight: 6 kg

Advantages and options
• High performance and maximum management benefits
• Wide range of white tonality and high color rendering “Urban Renaissance by Litek”
• Functional versions: OF - RO - DMP - DM - TLC - V12
• Automatic temperature control
• Dimmable/Programmable
• Self cleaning and minimal maintenance
• Option of supplementary protection against power-line surges
• Long life reliability

Mounting
Top post d. 60 mm
Vertical
On post

parko-mini



ottiche parko-mini

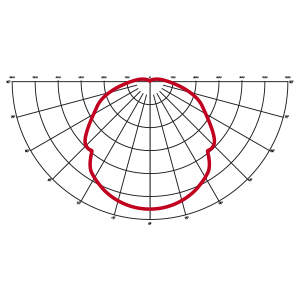

3DMC = Space diffuser

ottiche parko-mini

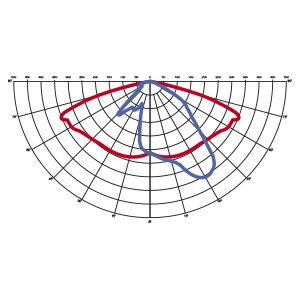

AS7 = Advance street

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
