Bolo

dowload pdf bolo

bolo

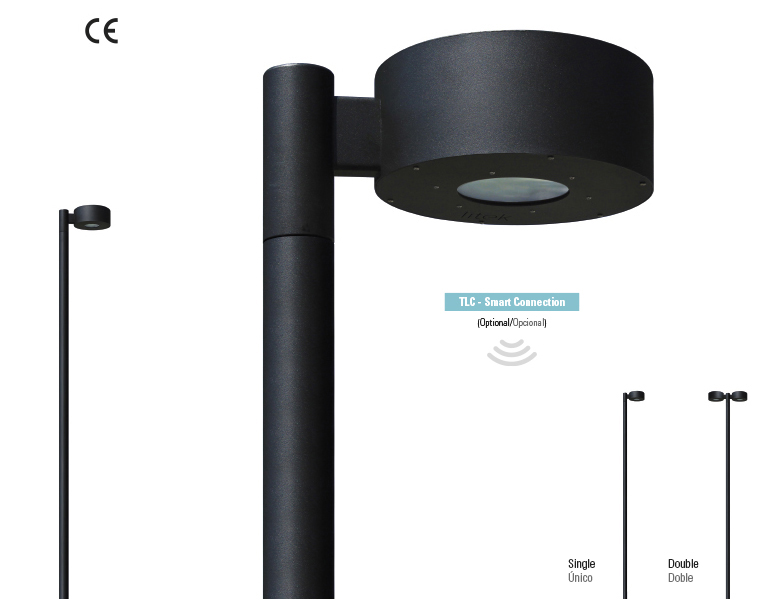

Design R&D Litek

The latest generation of urban design for street light fixtures. (Litex R&D design). The upper body is made with STAINLESS STEEL AISI304 and painted with durable exterior polyester powder in “Dark Smoke” and RAL 7016 embossed. The substructure is in black anodized aluminum. The whole unit is specifically designed for LED technology, with the optical unit sealed with a 4 mm tempered extra-clear glass protective screen (excluding vers. 3D). Choose from a standard neutral shade of light (4000° K), warm (3000° K) or very warm (2700° K) and between several different street optics or full cut off diffuser (excluding vers. 3D). The new MULTICHIP LED is ceramic based for direct welding and electrically isolated from the heat dissipation system, powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature control. Supply: 110 / 260Volt 50/60 Hz and cos-fi ≥0,9. Insulation class I or II. Minimum grade of protection: IP66. Impact resistant: IK10. Anti-condensation system GORE-TEX® patented.
Stainless steel or insulated bolts.

Applications
Avenues, Roads, Streets, Parking lots, roundabouts, Cycling paths, Places.
Suggested installation height 3 - 7 m.

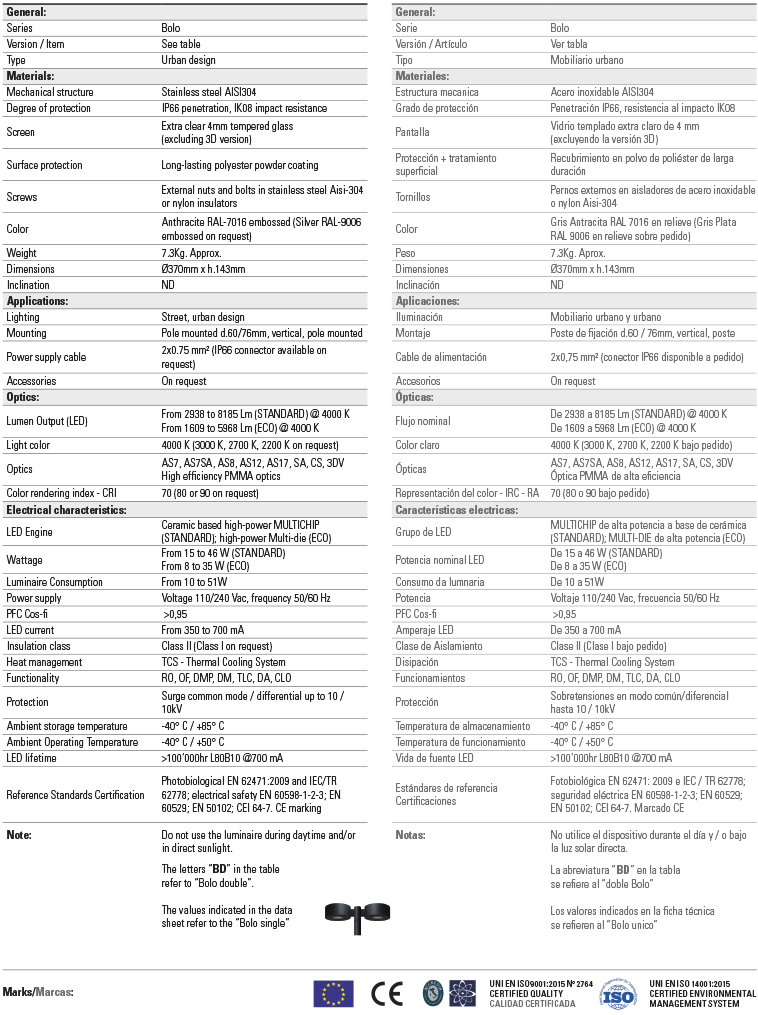

Characteristics
• Body in STAINLESS STEEL AISI304
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass for security (not available in 3D vers.)
• Polyester powder paint in “Dark Smoke” RAL 7016 embossed
• Grade of protection IP66
• Impact resistance IK10
• Insulation Class I or II
• TCS - Thermal Cooling System
• Full cut-off (not for 3D vers.)
• Stainless steel or insulated screws
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Dimensions: d.370 mm and h.143 mm. Fixture weight: 7.3 kg approximately. Terminal post d.76 mm, not provided

Advantages and options
• High performance and maximum management benefits
• Wide range of white tonality and high color rendering “Urban Renaissance by Litek”

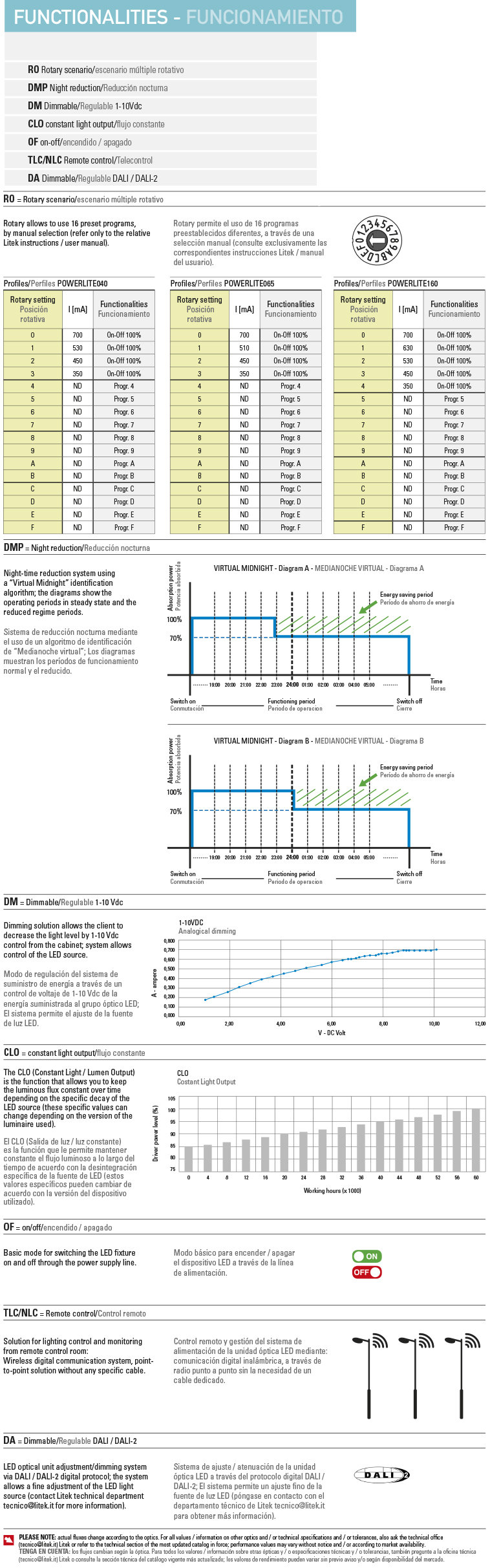

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Self cleaning and extremely reduced maintenance
• Option of supplementary protection against power-line surges
• Long life reliability

Mounting
Top post D.76 mm
Vertical
On post

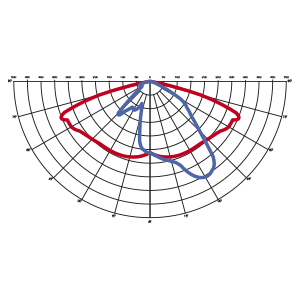

ottiche bolo

SA = Satin diffuser

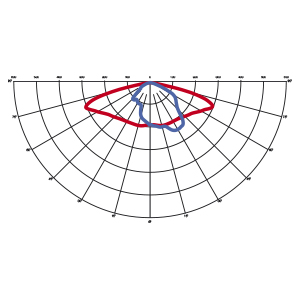

ottiche bolo

AS7 = Advance street

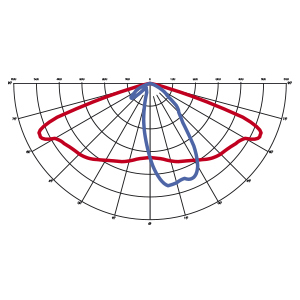

ottiche bolo

4AS7 = Very wide diffuser

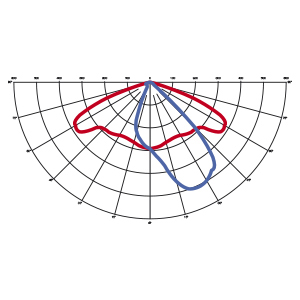

ottiche bolo

AS7SA = Advance diffuser

ottiche bolo

AS8 = Cycling/Narrow street

ottiche bolo

AS9 = Narrow interpost

ottiche bolo

AS10 = ME street

ottiche bolo

AS11 = Spacing

ottiche bolo

AS12 = Wide Spacing

ottiche bolo

3DMU = Space diffuser


All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
