Design R&D Litek

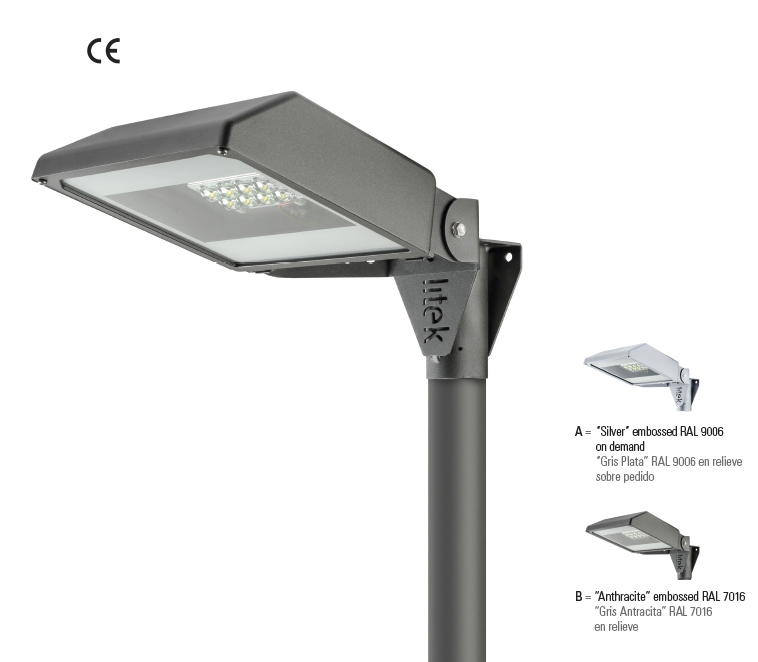

Litek iconic and reliable self-cleaning street lighting in a pressure fused aluminum body (Litek R&D design), specifically designed for LED technology to create minimal wind exposure. The lighting elements come with a 5 mm extra clear protective screen of tempered clear safety glass and a protective anodizing aluminium treatment with long-lasting polyester powder exterior paint in “Silver” and embossed with RAL 9006 (“Dark Smoke” RAL 7016 colour is available on request). There are different street lighting optics available including standard neutral shades (4000° K), warm (3000° K), or very warm (2700° K). Certified light emissions have full cut-off capability, eliminating light pollution. The new MULTICHIP LED is ceramic based for direct welding and electrically isolated from the heat dissipation system, powered by constant current Vdc. There are differentfunctions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature safety control. Power supply 110/260 Volt 50/60 Hz and cos-fi ≥0,9. Insulation class I or II. Minimum grade of protection: IP54. Connection box with separate access from the optics compartment. Anti-condensation system GORE-TEX® patented. Stainless steel bolts. Adjustable bracket included and various pole accessories available.

Applications
Roads, Streets, Parking lots, roundabouts, Cycling paths, Parks and gardens.
Suggested installation height: 3 - 7 m.

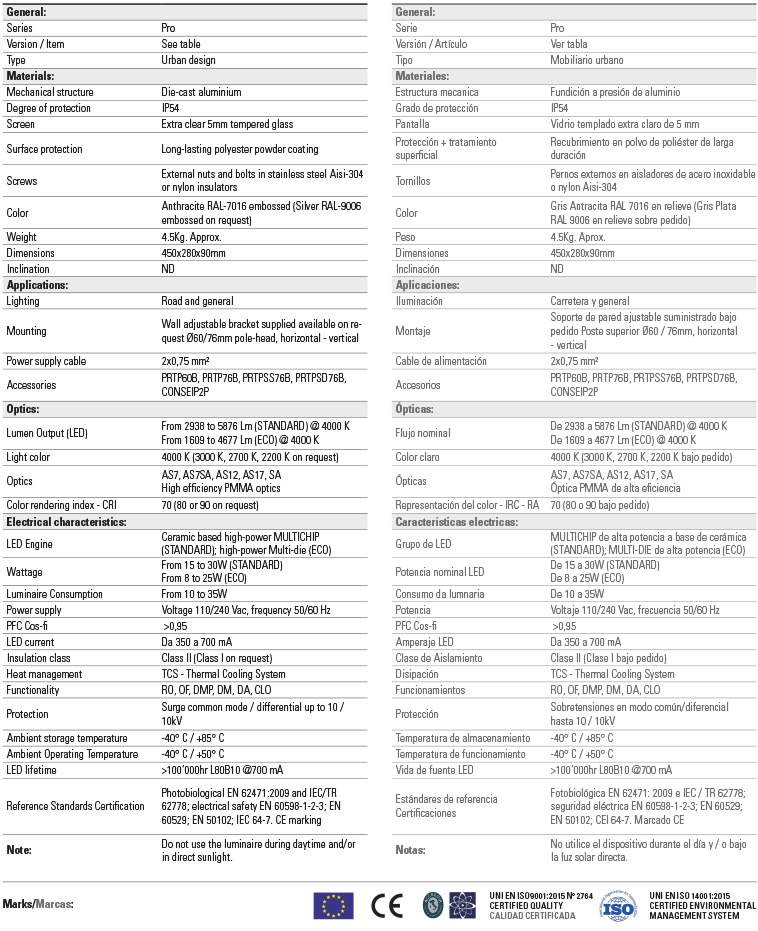

Characteristics
• LED designed pressure fused aluminium body
• High efficiency PMMA optics
• Flat protective diffuser with 5 mm extra clear tempered glass for security
• Anodized aluminum treatment
• Polyester powder paint in “Silver” RAL 9006 embossed (“Dark Smoke” RAL 7016 colour is available on request)
• Grade of protection IP54
• Insulation Class I or II
• TCS - Thermal Cooling System
• Full cut-off
• Stainless steel screws
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Dimensions: 450 x 280 x 90 mm. Weight: about 4.5kg

Advantages and options
• High performance and maximum management benefits
• Wide range of white tonality and high color rendering “Urban Renaissance by Litek”

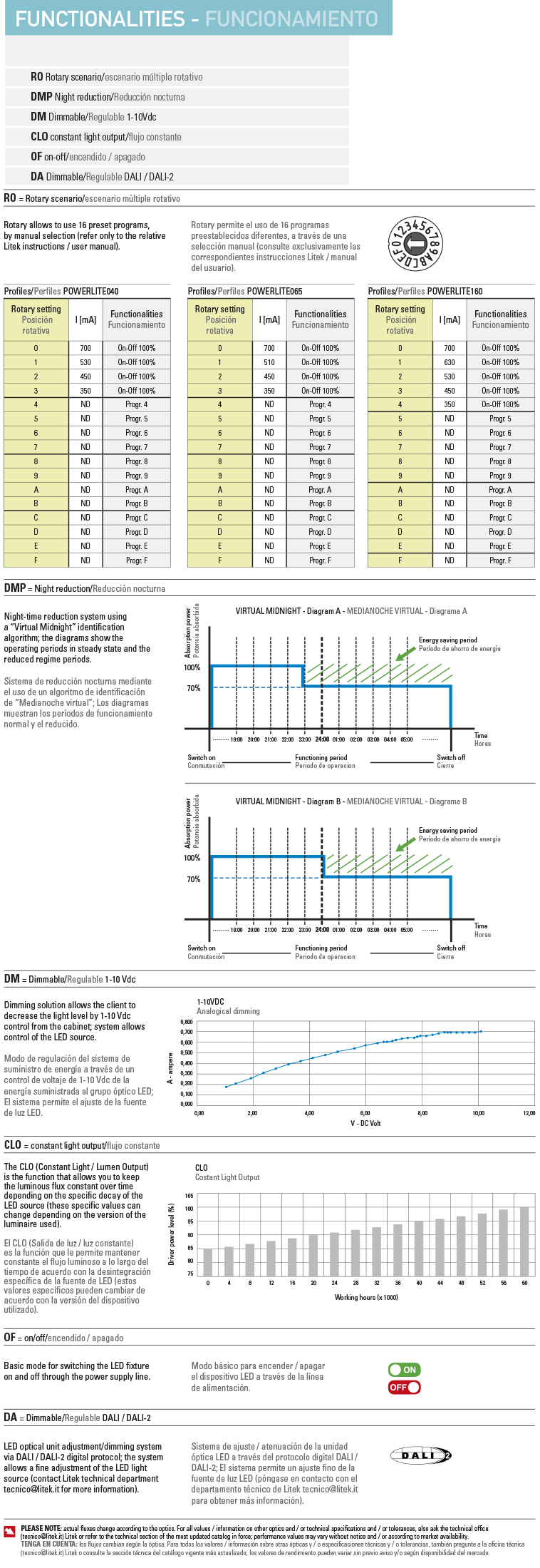

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Self-cleaning and minimal maintenance
• Option of supplementary protection against power-line surges
• Long life reliability

Mounting
Top post d. 60/76 mm
Vertical or horizontal
On post or wall




ottiche pro

SA = Satin diffuser

ottiche pro

AS7 = Advance street

ottiche pro

4AS7 = Very wide diffuser

ottiche pro

AS7SA = Advance diffuser

ottiche pro

AS8 = Cycling/Narrow street

ottiche pro

AS9 = Narrow interpost

ottiche pro

AS10 = ME street

ottiche pro

AS11 = Spacing

ottiche pro

AS12 = Wide Spacing

ottiche pro

50 = Medium flood 50°

ottiche pro

50SA = Medium flood 50SA

ottiche pro

120 = Wide flood 120°

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
