Fulgor 1

dowload pdf

fulgor1

fulgor1

Design R&D Litek

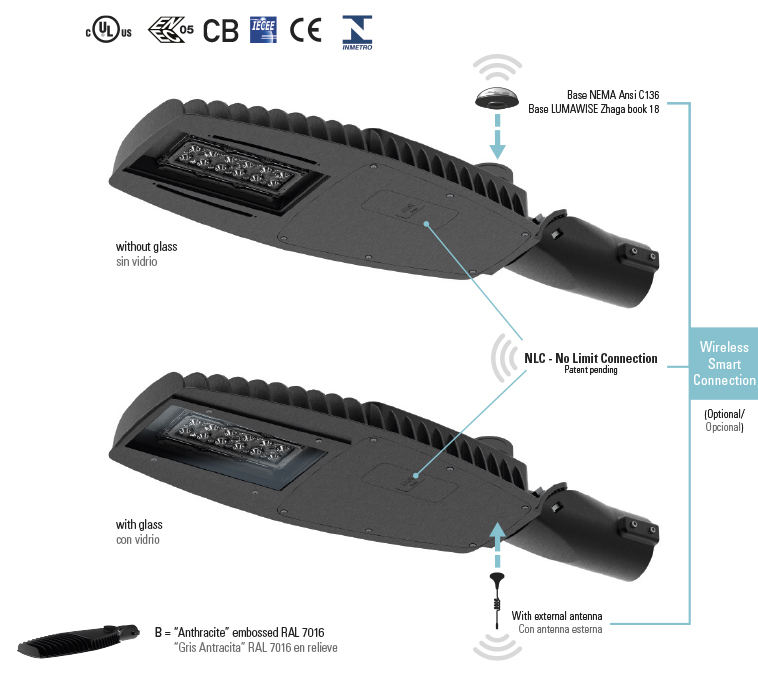

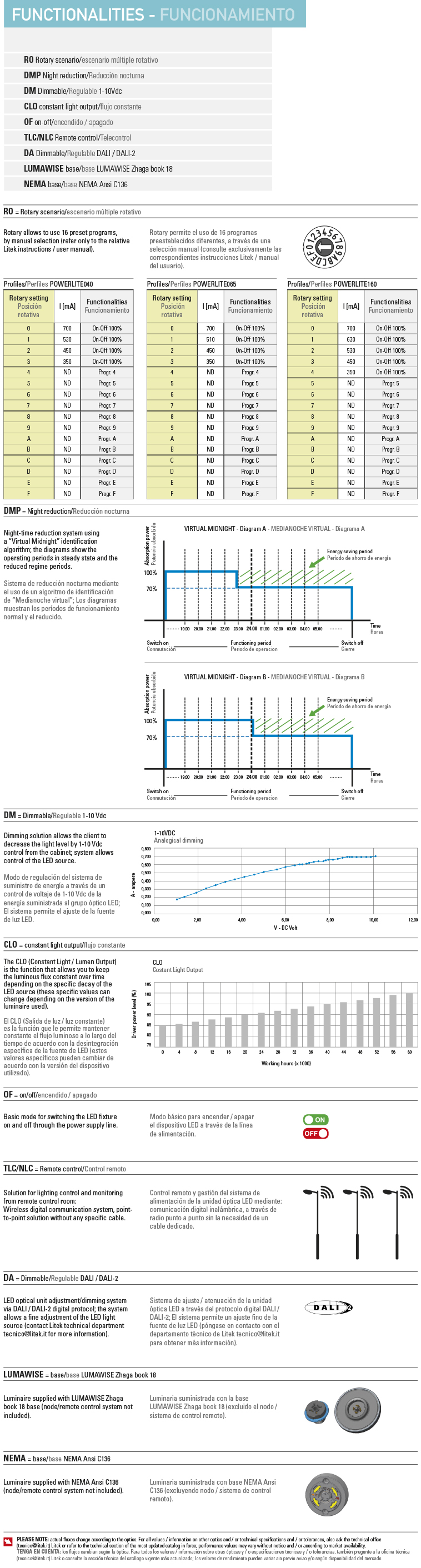

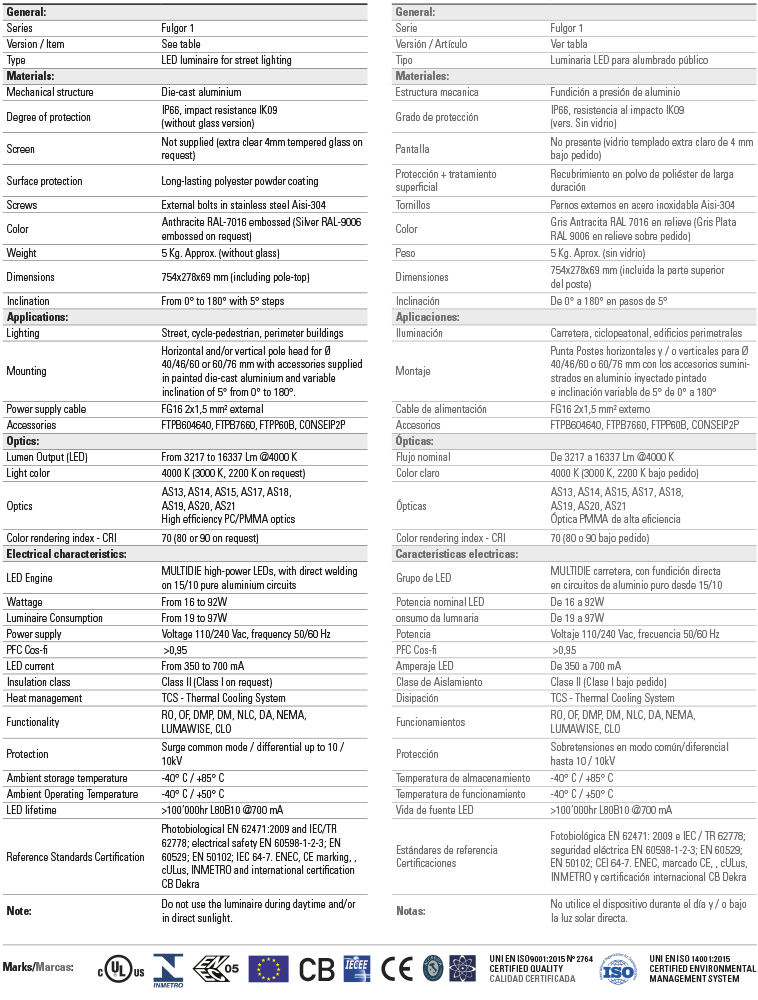

High efficiency LED with body, adjustable pole-head and cover of the technical compartment in die-cast aluminum (R & D Litek design), self-cleaning design and minimum exposure to the wind specifically proposed with high heat exchange for LED technology, sealed optical unit IP66 (flat protective screen in 4mm extra clear safety tempered glass), longer lasting protective treatment with external coating in "Anthracite" RAL 7016 embossed polyester powder ("Silver" RAL 9006 embossed, or other color, one request). Road optics in PMMA with variable light distribution (AS13, AS14, AS715, AS16, AS17), neutral light 4000 K or warm 3000 K or very hot 2200 K, certified light emission totally cut-off according to LL.RR. against light pollution. Optical assemblies composed of high-power MULTIDIE street LEDs, with direct reflow on pure 15/10 aluminum circuits; LED driving in constant current Vdc (from 350 to 700 mA). Different types of functions / management (OF - RO - DMP - DM - CLO - TLC - DA - NEMA - ZHAGA); LITEK heat dissipation system TCS (Thermal Cooling System) with very high heat exchange and automatic temperature safety control. Power supply 110 / 240Volt 0/50 / 60Hz, power factor correction with cos-fi ≥0.95, insulation class 2 (class 1 on request), electronic power supply with microprocessor control with very high total resinated efficiency (Made in Italy) with protection from overvoltages up to 10kV both in common mode and rated power max 51W. Luminaire with IP66 degree of protection of both the technical compartment and the optical compartment, power cable entry via variable clamp cable gland and integrated patented anti-condensation system, IK08 impact protection degree. Stainless steel external bolts, two different types of pole-mounted socket suitable for vertical and / or horizontal shanks from Ø 40-46-60-76 mm and adjustable in steps of 5 ° from 0 ° to 180 °, dimensions 754x278x80 mm and weight 5 Kg. Various accessories available, CB Dekra international certification and CE marking.

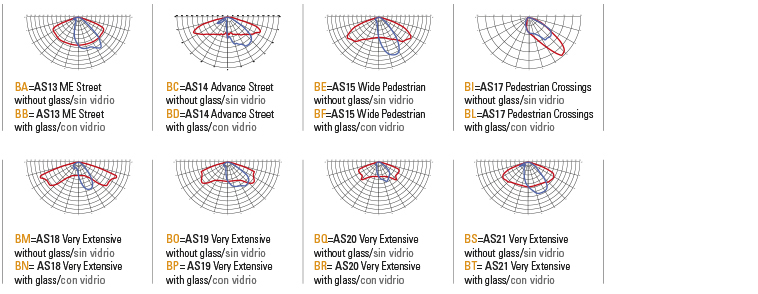

ottiche fulgor1

AS13 = ME Streets

ottiche fulgor1

AS14 = Advance Street

ottiche fulgor1

AS15 = Wide Pedestrian

ottiche fulgor1

AS16 = Frontal/Parking

ottiche fulgor1

AS17 = Pedestrian Crossings

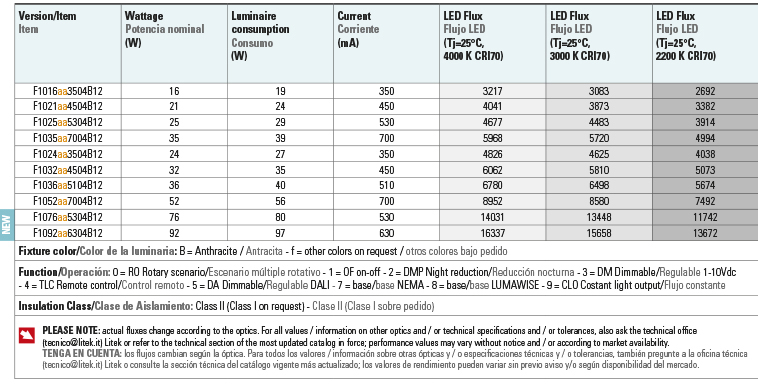

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
