Modulo compatto

dowload pdf

modulo compatto

realizzazione modulo compatto

Design R&D Litek

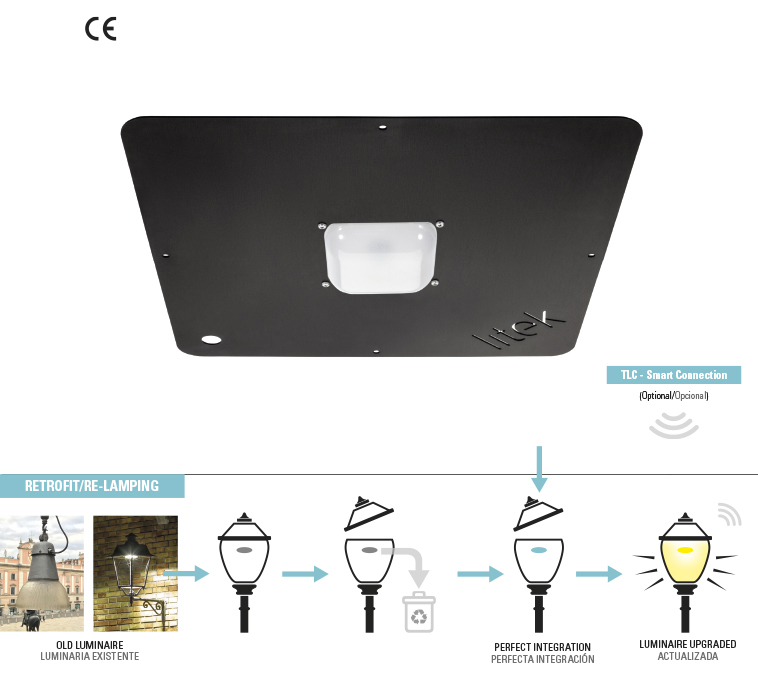

High performance compact LED module (Litek R&D design) for relamping on existing fittings/lanterns. Complete with extruded anodized aluminum heat sink and system interface with direct PMMA/PC optics or diffuser and dark smoke polyester powder painted aluminum interface system. Choose from neutral white standard light (4000° K), or warm (3000° K), or very warm (2700° K) and street optics, intensive optics, or 3D diffuser. Comes with new MULTICHIP LED for direct reflow soldering, electrically isolated from the thermal dissipation system, driven by a constant current Vdc. It has several functions including the Litek heat dissipation system, TCS (Thermal Cooling System) and automatic temperature control system. Power supply: 110/270Volt 50/60 Hz. IP66 grade of protection. IK10 impact resistance. Stainless steel or insulated screws.

Applications
Refitting of old fashioned outdoor lanterns or fixtures.
Great range of mounting height 2 - 6 mt

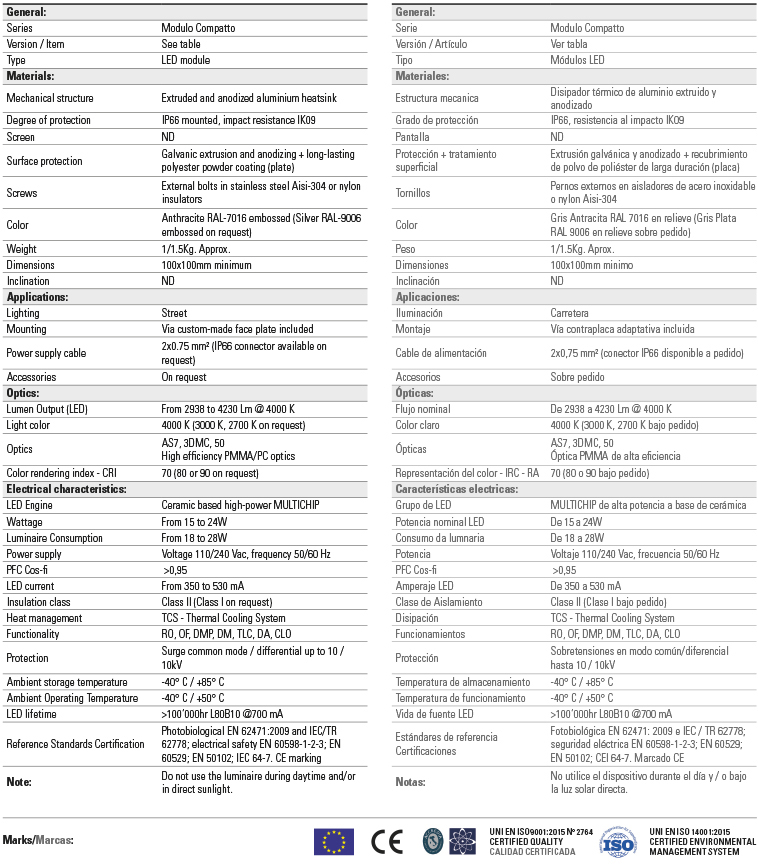

Characteristics
• Extruded anodized aluminum heat sink
• High efficiency PMMA/PC street or intensive optics and diffuser
• Grade of protection IP66
• Impact resistance IK10
• Insulation Class I or II
• TCS - Thermal Cooling System
• Stainless steel or insulated outside screws
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Dimensions: 100x100 mm minimum. Weight: 1/1,5 Kg

Advantages and Options
• Conservation and preservation of important historical heritage sites
• Elegant black finish colour which easily adapts to most existing lanterns/fittings
• Flexibility to upgrade the existing structures with reduced investment costs
• Wide range of white tonality and high colour rendering: “Urban Renaissance by Litek”

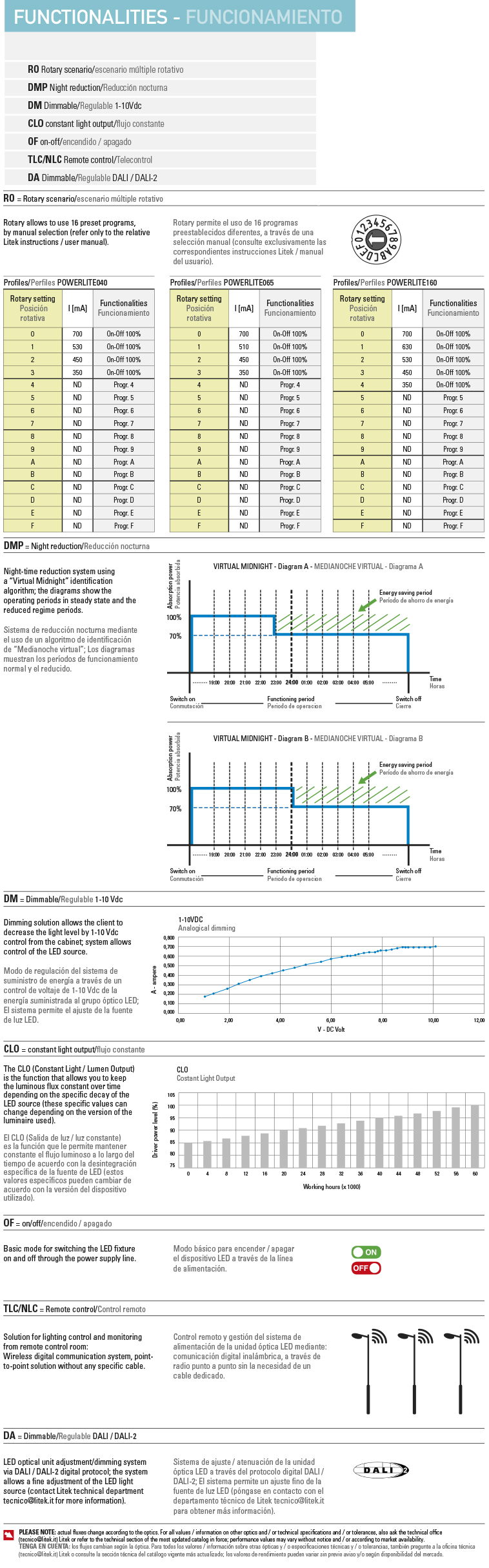

• Functional versions: OF - RO - DMP - DM - TLC - V12
• Automatic temperature control
• Dimmable/Programmable
• Specific scheduled maintenance suggested
• Option of supplementary protection against line surges
• Long life reliability

Mounting
Dig a furnished mechanical interface

realizzazione modulo compatto



ottiche modulo compatto

3DMC = Space diffuser

ottiche modulo compatto

AS7 = Advance street

ottiche modulo compatto

50 = Medium flood 50°

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
