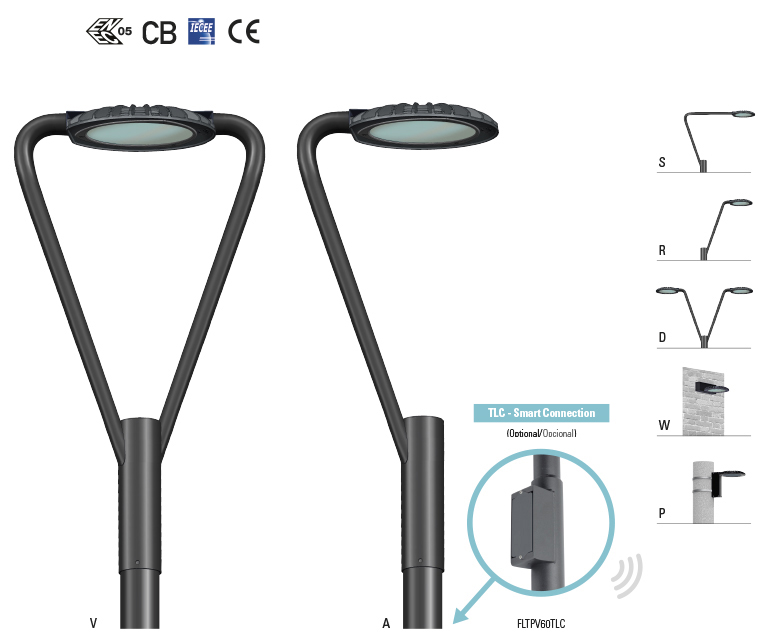

Litek R&D design
The latest generation of urban design LED lighting luminaires with minimal exposure to wind (Litek R&D design) with the ultimate light performance. The upper structure is made of underpressure fused aluminum with protective anodizing treatment, structure and head-pole made of steel with hot-dip zinc protection, exterior varnishing in long - lasting polyester powder color “Anthracite” RAL 7016 embossed. The whole unit has been specifically designed for LED technology, with the optics sealed with a 4 mm tempered extra-clear glass protective screen (not available for 3D vers.). Choose from a standard neutral shade of light (4000° K), warm (3000° K), or very warm (2700° K) and between several different street optics or a full cut-off diffuser (not available in 3D vers.). The new MULTICHIP LED is ceramic based for direct welding, electrically isolated from the heat dissipation system and powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature safety. Power supply: 200/300Volt 50/60 Hz and cos-fi ≥0.9. Insulation class I or II. Minimum grade of protection: IP66. Impact resistant: IK08. Anti-condensation system GORE-TEX® patented. Stainless steel bolts. Various installation modes available.

Applications
Avenues, Roads, Parks, Parking lots, Cycle paths, Arcades
Suggested installation height 2,5 - 6 m.

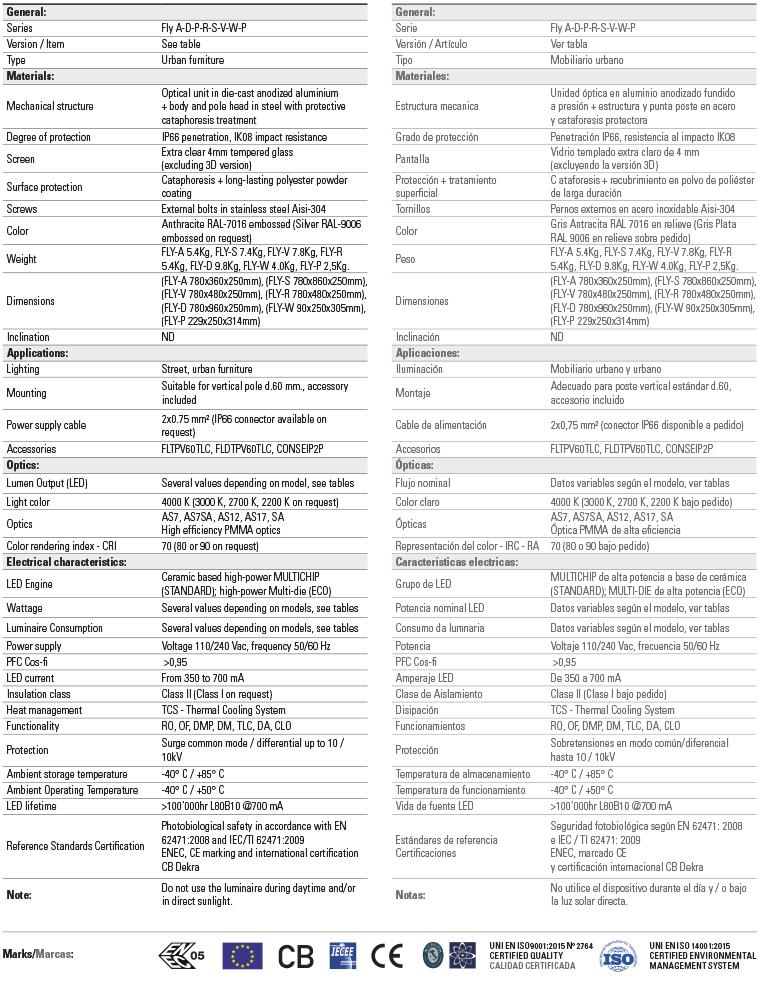

Characteristics
• LED designed pressure fused aluminium body
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass for security
• Anodized aluminum treatment
• Polyester powder paint colour: “Dark Smoke” RAL 7016 embossed
• Grade of protection: IP66
• Impact resistance: IK08
• Insulation Class I or II
• TCS - Thermal Cooling System
• Total cut-off
• Stainless steel screws
• Photobiological safety, refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• CB Certification N° NL-51462 issued by Dekra

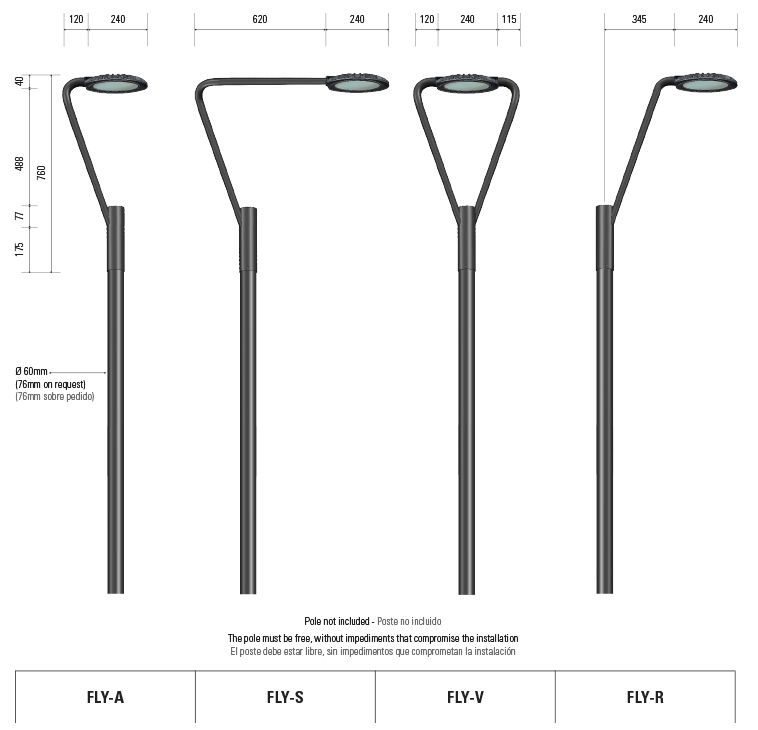

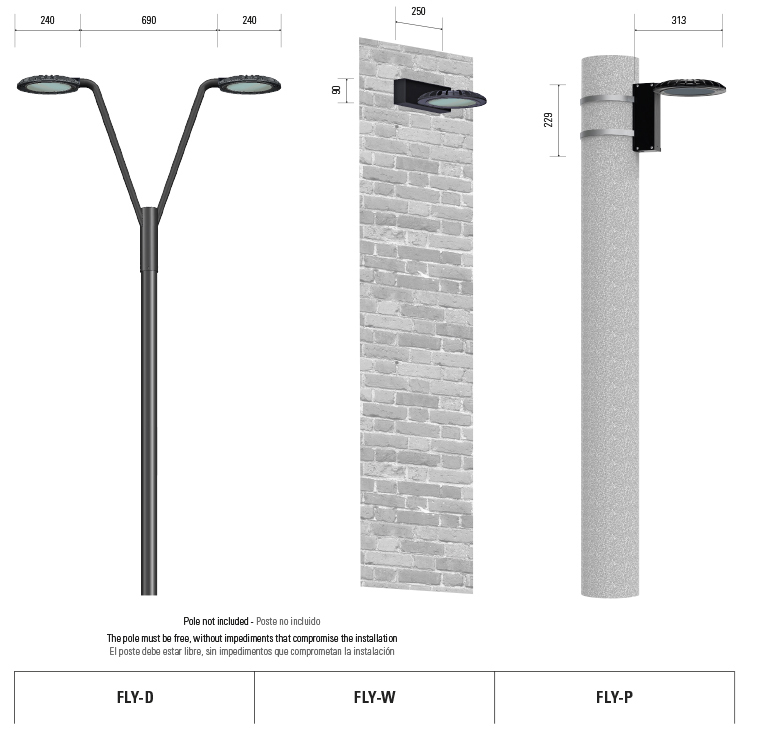

• Overall dimensions:
FLY-A. 780x360x250 mm, Weight: about 5,4 Kg

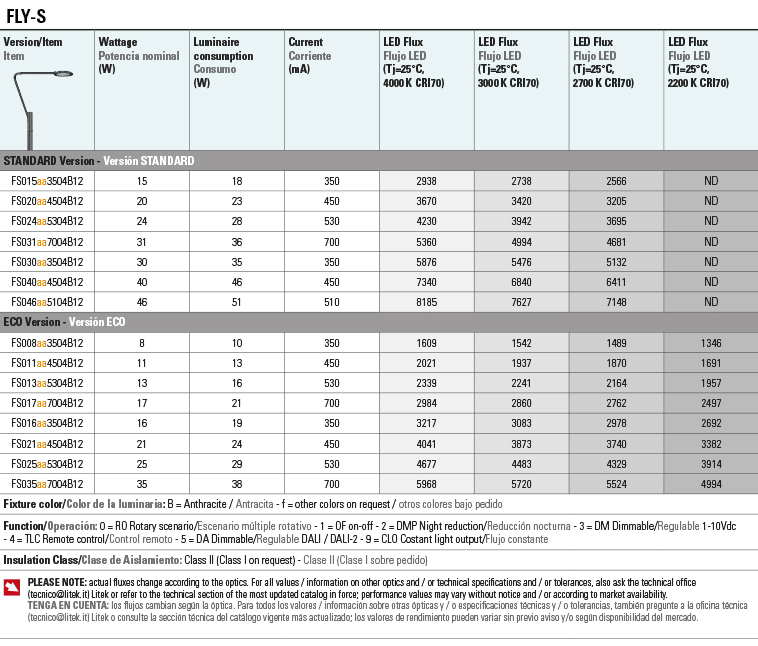

FLY-S. 780x860x250 mm, Weight: about 7,4 Kg
FLY-V. 780x480x250 mm, Weight: about 7,8 Kg
FLY-R. 780x480x250 mm, Weight: about 5,4 Kg
FLY-D. 780x960x250 mm, Weight: about 9,8 Kg
FLY-W. 90x250x305 mm, Weight: about 4,0 Kg

Advantages and Options
• High performance and maximum management benefits
• Wide range of white tonality and high colour rendering: “Urban Renaissance by Litek”

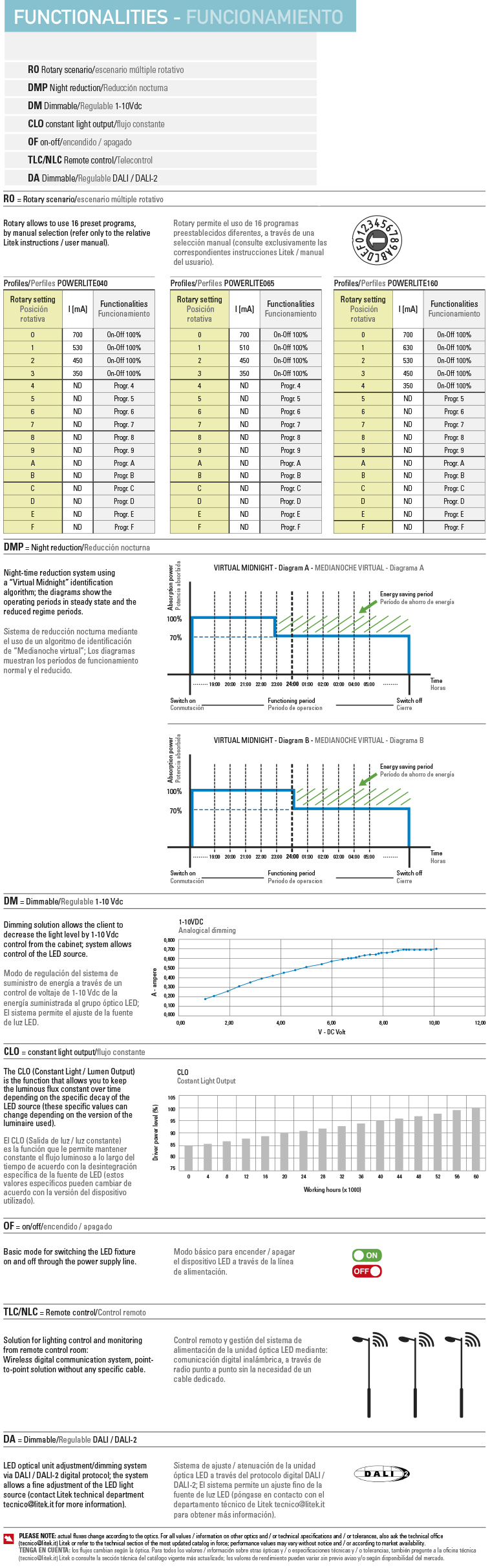

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Quick cleaning and minimal maintenance
• Option of supplementary protection against power-line surges
• Long-life reliability

Mounting
Vertical top-post d. 60 mm included (76 mm on-demand).

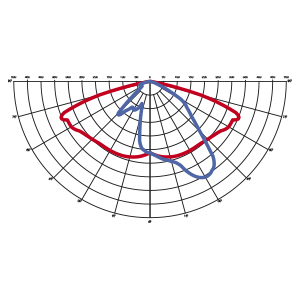

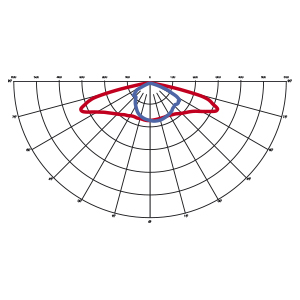

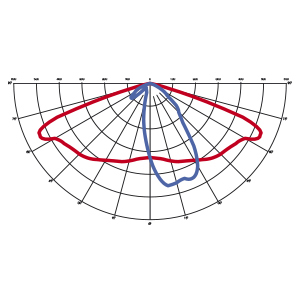

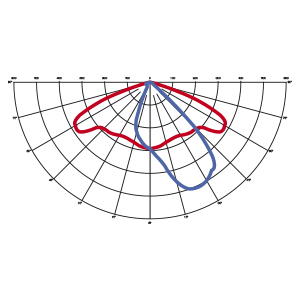

ottiche fly

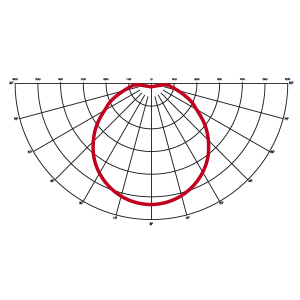

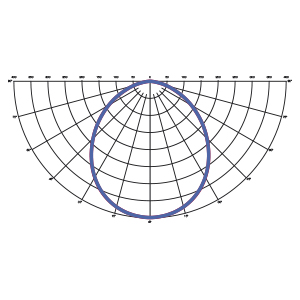

SA = Satin diffuser

ottiche fly

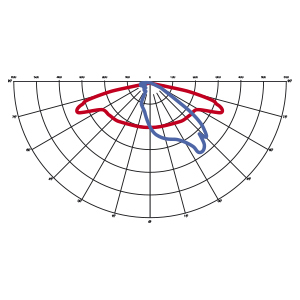

AS7 = Advance street

ottiche fly

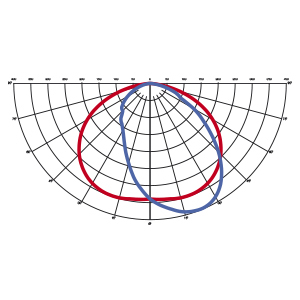

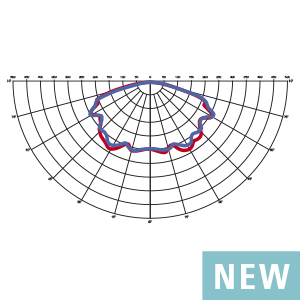

4AS7 = Very wide diffuser

ottiche fly

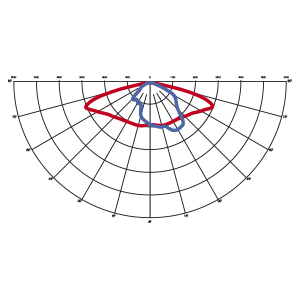

AS7SA = Advance diffuser

ottiche fly

AS8 = Cycling/Narrow street

ottiche fly

AS9 = Narrow interpost

ottiche fly

AS10 = ME street

ottiche fly

AS11 = Spacing

ottiche fly

AS12 = Wide Spacing

ottiche fly

3DMU = Space diffuser

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
