Elio - S

dowload pdf elio s

foto elio s

ambienti elio s

Design R&D Litek

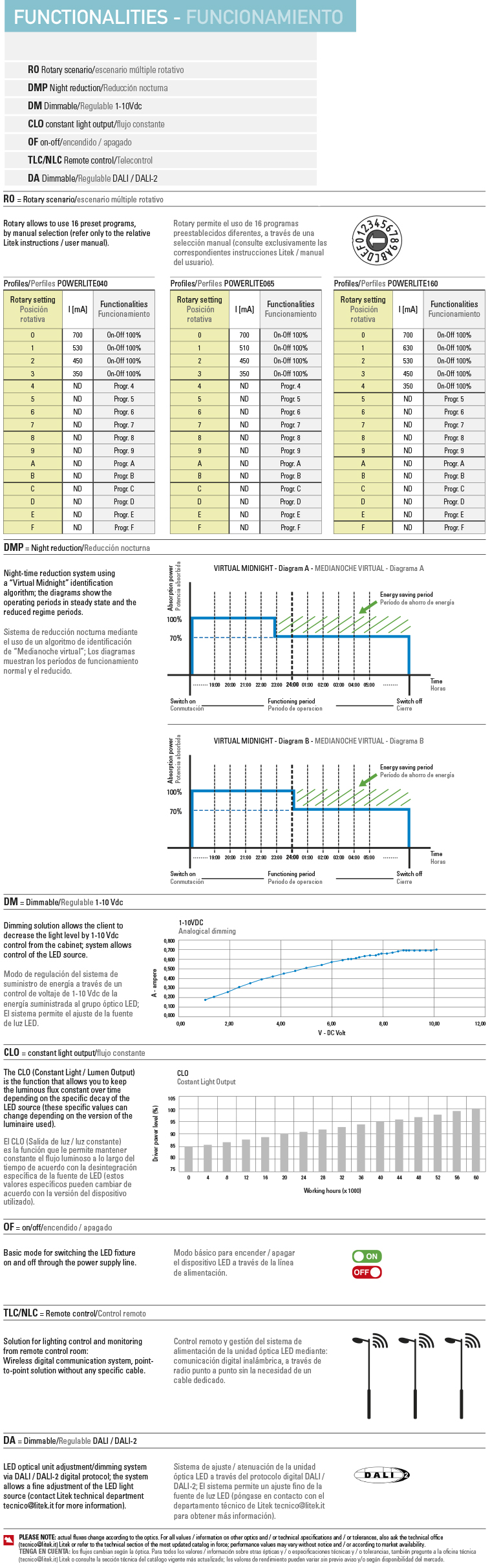

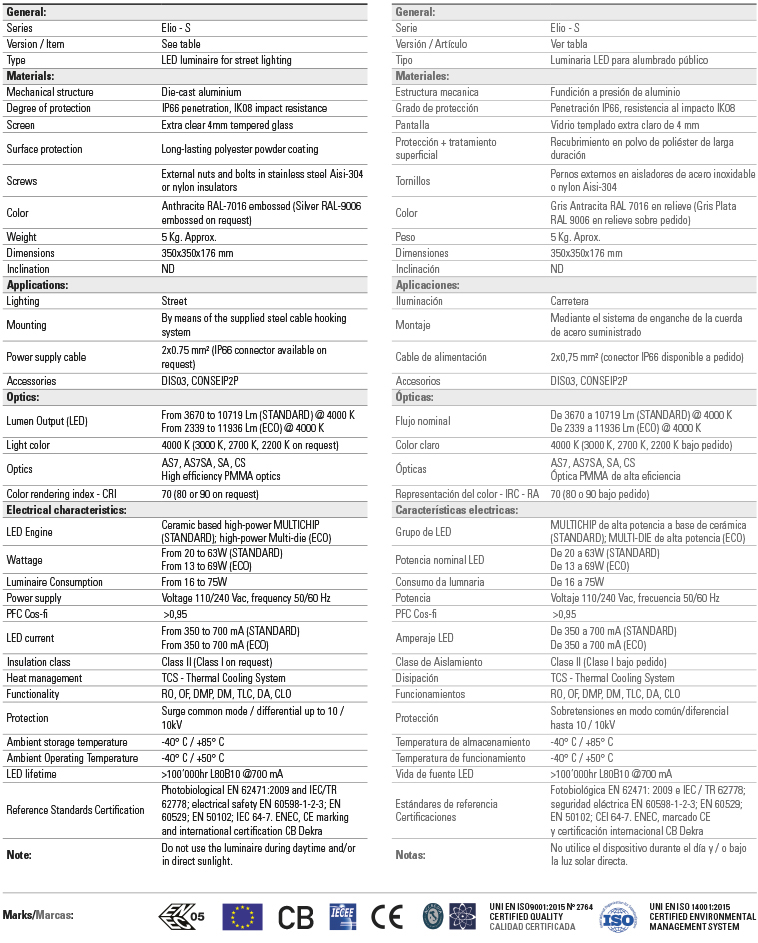

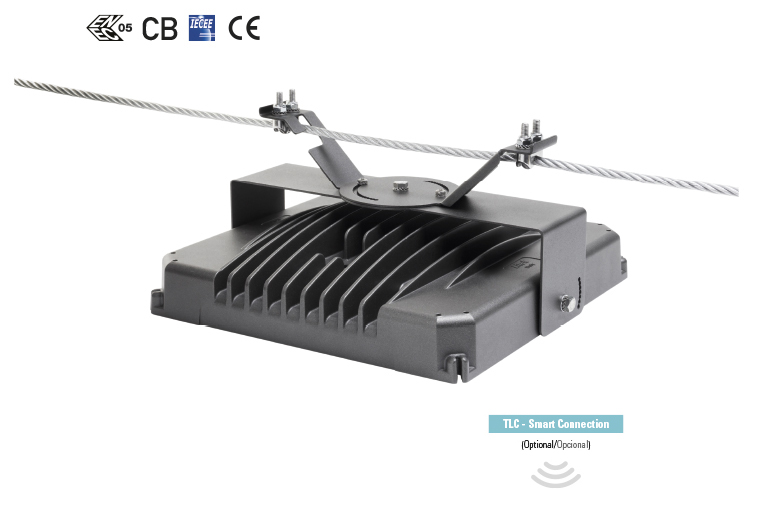

High performance LED luminaire from latest technology generation (design R&D Litek), made of die-cast aluminium. Innovative self-cleaning and compact design, specifically designed for LED technology, sealed optical unit and flat protective shield with 4 mm. extra clear tempered safety glass (or satin finish on request), long lasting protective treatment with anodized aluminium and subsequent external coating with polyester powder in “Anthracite” RAL 7016 embossed (“Silver” RAL 9006 embossed, or other colors, on request). PMMA optics with several light distribution, neutral light colour 4000 K (available on request: warm 3000 K, warmer 2700 K, and very warm 2200 K), totally cut-off certified light emission in accordance with Standards against light pollution. Optics are made of a ceramic- based high-power LED MULTICHIP in the STANDARD version, and high-power MULTIDIE in the ECO versions, with direct welding on 15/10 pure aluminium circuits; LEDs are electrically isolated from the heat dissipation system, Vdc constant current LED driving system (from 350 to 700 mA). Several types of functionalities/ignition (RO, OF, DMP, DM, TLC, DA, NFC, NEMA, LUMAWISE, CLO); excellent LITEK heat dissipation system as TCS (Thermal Cooling System) with automatic safety temperature control, also suitable for h24 operation. Power supply 110/240Volt 50/60Hz, power factor corrected to cos-fi ≥0.95, insulation class 2 (class 1 on request), electronic ballast with very high efficiency microprocessor control totally resin-coated (Made in Italy) with overvoltage protection up to 10kV both in common mode and in differential mode, max rated power 69W. IP66 protection degree, accessories compartment cover in Polycarbonate, quick power connection joint (connection box for TLC module on request), cable connection box with separate access from the optic compartment, including steel cable anchoring system up to d.10mm max. Impact protection degree IK08, patented anti-condensation system, external bolts in stainless steel, overall dimensions 350x350x176 mm and weight 5 Kg. International certification CB, ENEC and CE marking. Luminaire and driver are Made in Italy.

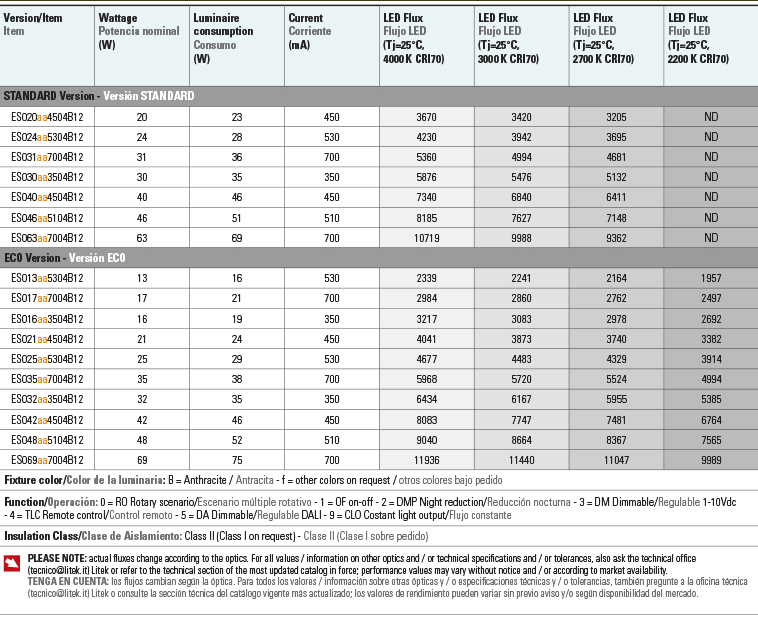

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
