Futa

dowload pdf

futa

Design R&D Litek

The latest generation of high performance LED fixtures for specific illumination of tunnels. Made with a pressure fused aluminum body (Litek R&D design) and an innovative self-cleaning function, with minimal wind exposure and reduced accumulation of dust specifically designed for LED technology. The lighting optic is sealed with a
protective 4 mm screen of tempered extra clear safety glass, and an anodizing aluminium treatment with a long-lasting polyester powder exterior paint in “Dark Smoke” and embossed RAL 7016 (“Silver” RAL 9006 colour is available on request). Different street lighting optics are available. Choose from standard neutral shades of light (4000° K), warm (3000° K) or cool (5000° K). Certified full cut-off for light emissions, eliminating light pollution and CB Scheme European safety certification pending. The new MULTICHIP LED is ceramic based for direct welding, electrically isolated from the heat dissipation system and powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System)  and automatic temperature safety control. The fixture is suitable for 24h functioning. Cable for power supply: H07RNF 3x1.5mmq with attachment CEE 2P+T 16A IP67. Power supply: 110/260 Volt 50/60 Hz and cos-fi ≥0.9. Insulation class I or II. Minimum grade of protection: IP66. Connection box with separate access from the optics compartment. Impact resistance: IK08. Anti-condensation system GORE-TEX® patented. Stainless steel bolts. Other accessories available.

Applications
Tunnels and under bridges.

Characteristics
• LED designed pressure fused aluminium body
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass for security
• Anodized aluminum treatment
• Polyester powder paint colour: “Dark Smoke” and embossed RAL 7016 (“Silver” RAL 9006 colour is available on request)
• Grade of protection IP66
• Impact resistance: IK08
• Insulation Class I or II
• TCS - Thermal Cooling System
• Full cut-off
• Stainless steel screws
• CB international standards certification pending
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark

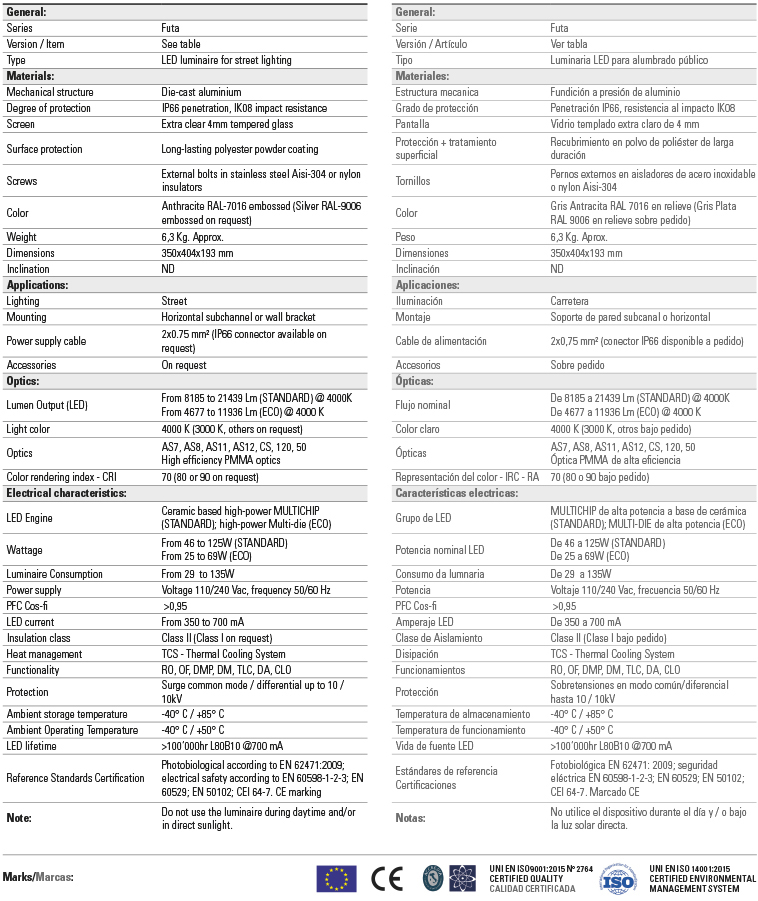

• Overall dimensions: 320 x 320 x 75 mm. Weight: 5 kg

Advantages and options
• High performance and maximum management benefits

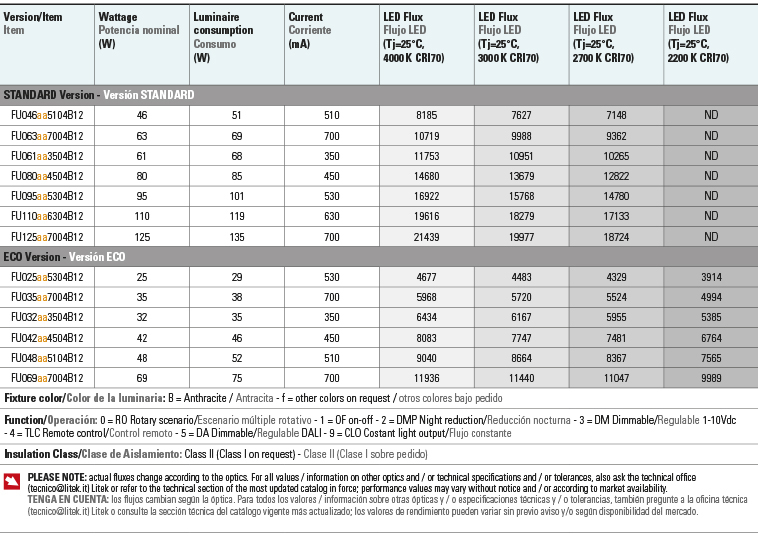

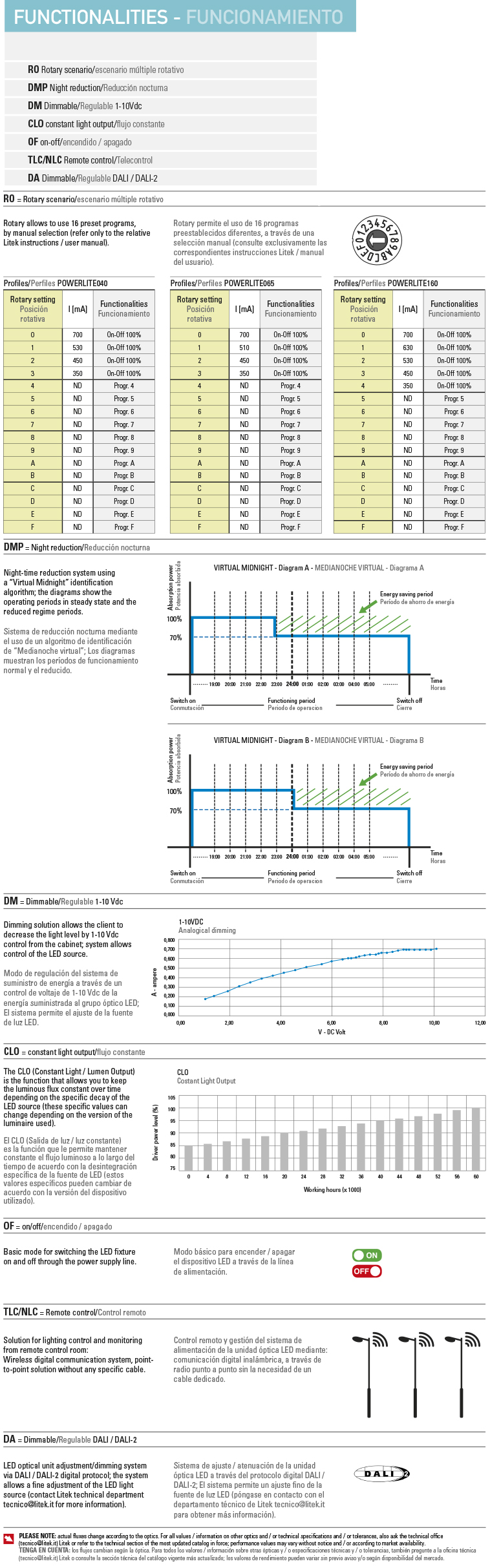

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Minimal maintenance and quick cleaning
• Option of supplementary protection against power-line surges
• Long life reliability
• High efficiency PMMA optics for entrance and internal zone of the gallery

Mounting

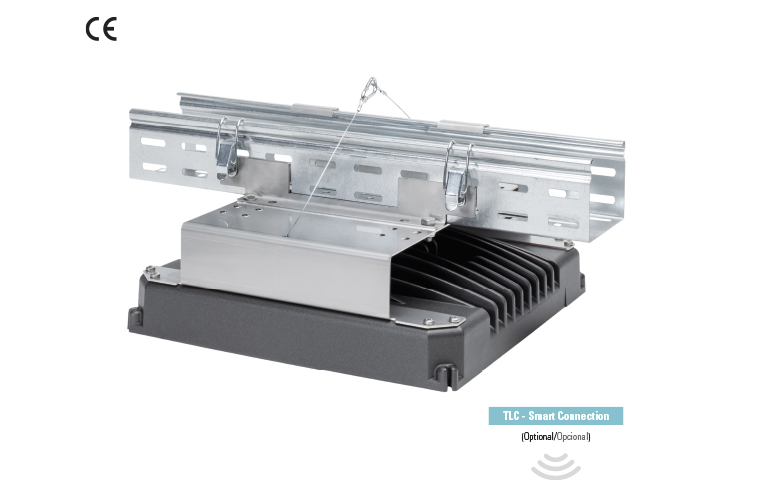

Underchannel or wall bracket
Horizontal



ottiche futa+

AS7 = Advance street

ottiche futa+

4AS7 = Very wide diffuser

ottiche futa+

AS7SA = Advance diffuser

ottiche futa+

AS8 = Cycling/Narrow street

ottiche futa+

AS9 = Narrow interpost

ottiche futa+

AS10 = ME street

ottiche futa+

AS11 = Spacing

ottiche futa+

AS12 = Wide Spacing

ottiche futa+

3DMU = Space diffuser

ottiche futa+

CS = Central street

ottiche futa+

SA = Satin diffuser

ottiche futa+

50 = Medium flood 50°

ottiche futa+

50SA = Medium flood 50°

ottiche futa+

120 = Wide flood 120°

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
