Design R&D Litek

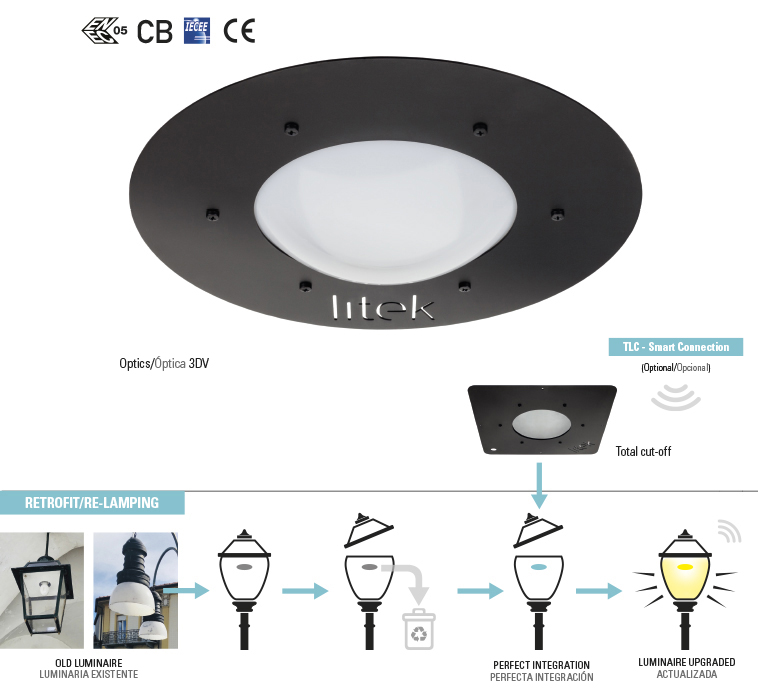

Independent high performance LED Module (Litek R&D design) for relamping on existing fittings/lanterns. Complete with anodized aluminum mold and dark smoke polyester powder painted aluminum interface system, with a extra clear tempered 4 mm glass (not available with 3D vers.). Choose from neutral white standard light (4000° K), warm (3000° K), or very warm (2700° K)
and Street optics or symmetrical with full cut-off for emissions (not available with 3D vers.). Comes with new MULTICHIP LED for direct reflow soldering, electrically isolated from the thermal dissipation system, driven by a constant current Vdc. It has several functions including the Litek heat dissipation system, TCS (Thermal Cooling System) and automatic temperature control.
Power supply: 110/270Volt 50/60 Hz. GORE-TEX® patented anti-condensation system.
Grade of protection: IP66. Impact resistance: IK10. Stainless steel or insulated screws.

Applications
Refitting of historical lanterns or outdoor fixtures.
Great range of mounting height 3 - 8 mt

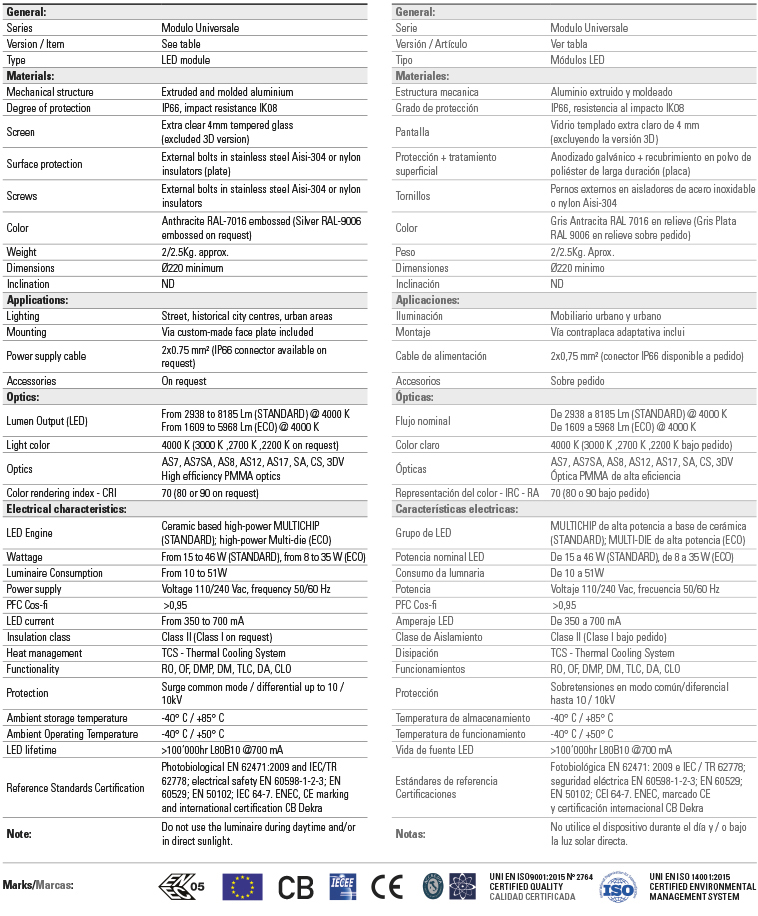

Characteristics
• Designed, stamped and anodized aluminium chassis
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass (not available in 3D vers.)
• IP66 Grade of protection, mounted
• Impact resistance IK10
• Insulation Class I or II
• TCS - Thermal Cooling System
• Fully cut-off (not for 3D vers.)
• Stainless steel or insulated outside screws
• CB Certification N° NL-47546 issued by Dekra
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Dimensions: d.220 mm minimum. Weight: 2/2,5 Kg

Advantages and Options
• The LED Module is completely closed and certified in order to make the light fitting a mechanical support without any electrical element
• Conservation and preservation of historical and monumental heritage
• Elegant black finish colour which adapts well to most existing lanterns/fittings
• LED Module, optics and drivers are included in an iron-free body
• Flexibility and the option to upgrade the existing structures with reduced investment costs
• Wide range of white tonality and high colour rendering: “Urban Renaissance by Litek”

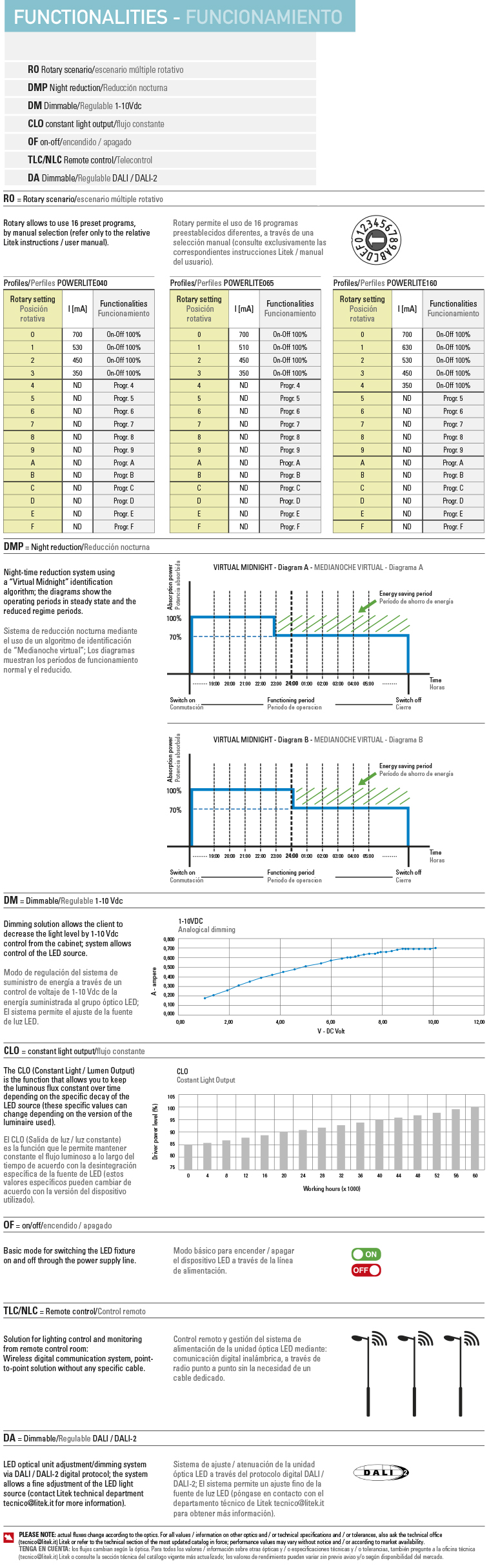

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Quick cleaning and minimal maintenance
• Option of supplementary protection against line surges
• Long life reliability

Mounting
Dig a furnished mechanical interface



ottiche modulo universale

SA = Satin diffuser

ottiche modulo universale

AS7 = Advance street

ottiche modulo universale

4AS7 = Very wide diffuser

ottiche modulo universale

AS7SA = Advance diffuser

ottiche modulo universale

AS8 = Cycling/Narrow street

ottiche modulo universale

AS9 = Narrow interpost

ottiche modulo universale

AS10 = ME street

ottiche modulo universale

AS11 = Spacing

ottiche modulo universale

AS12 = Wide Spacing

ottiche modulo universale

3DMU = Space diffuser

ottiche modulo universale

CS = Central street

ottiche modulo universale

120 = Wide flood 120°

ottiche modulo universale

3DMU2 = Space diffuser


All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
