Gaia

dowload pdf gaia

foto gaia

ambienti gaia

Design R&D Litek

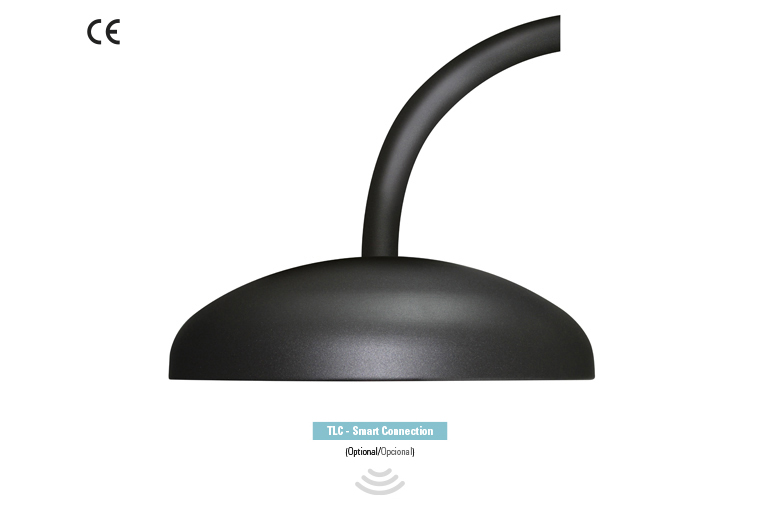

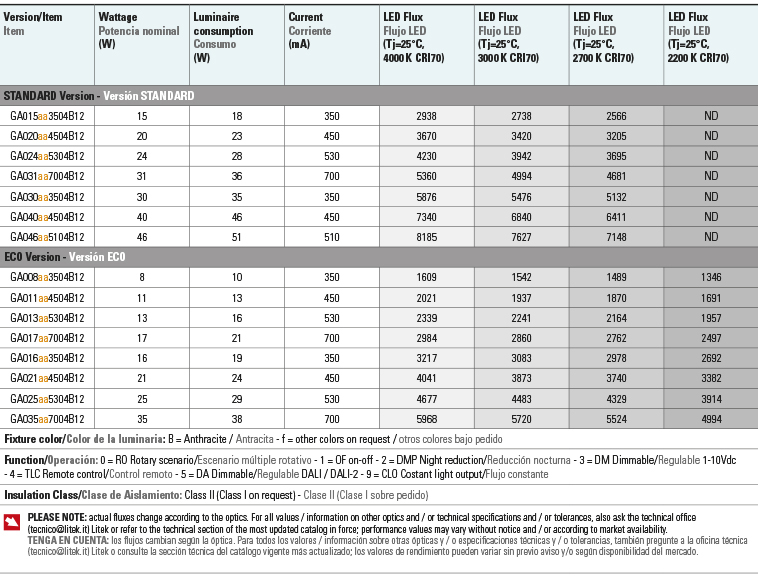

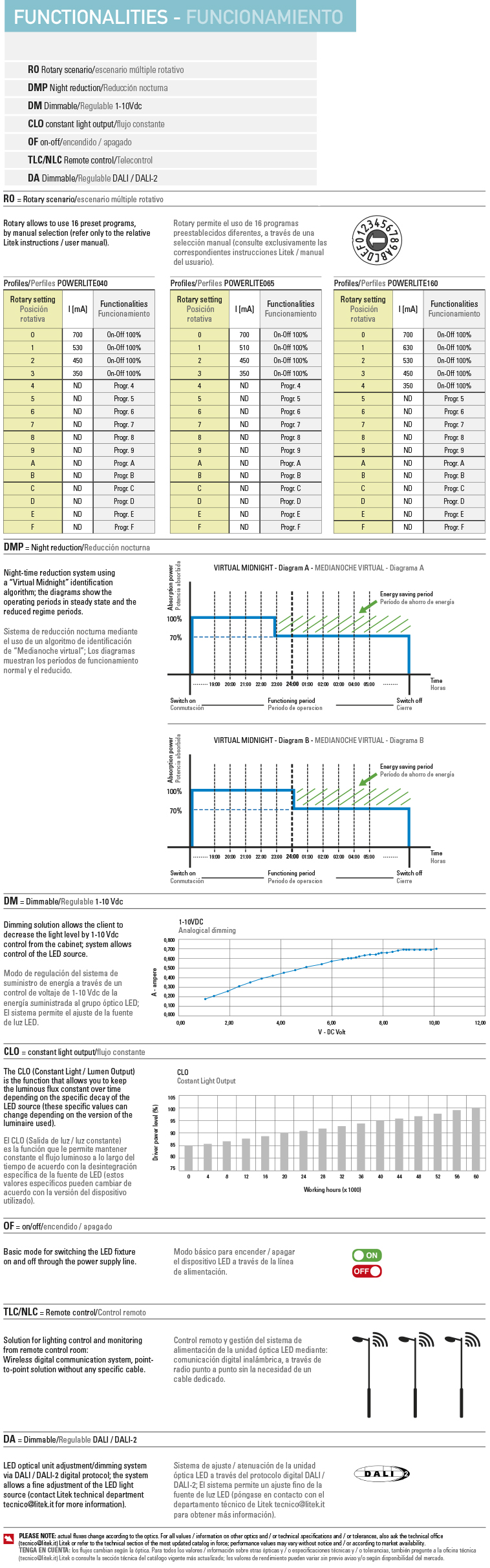

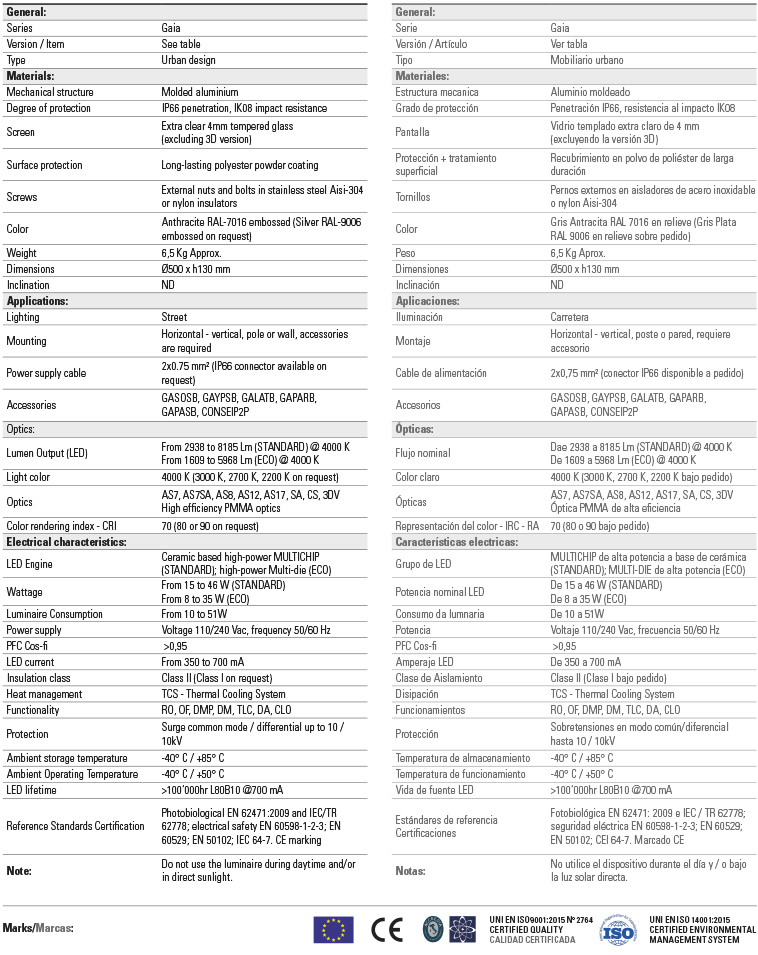

LED lighting fixture for street and urban applications (design R&D Litek), upper self-cleaning body in molded aluminium with protective anodizing treatment and external powder coating in polyester “Anthracite” RAL 7016 embossed (“Silver” RAL 9006 embossed, or other colours, on request) and custom-made face-plate in anodized aluminium and long-lasting anthracite polyester powder coated, with protective screen in extra-clear 4 mm tempered glass (excluding 3D version). Neutral light colour 4000 K (available on request: warm 3000 K, warmer 2700 K, and very warm 2200 K), totally cut-off certified light emission according to standards against light pollution. Optical units made of ceramic-based high-power LED MULTICHIP in the STANDARD version, and high-power MULTIDIE in the ECO versions, with direct welding on 15/10 pure aluminium circuits; LEDs are electrically isolated from the heat dissipation system, Vdc constant current LED driving system (from 350 to 700 mA). Several types of functionalities/ignition (RO, OF, DMP, DM, TLC, DA, NFC, NEMA, LUMAWISE, CLO); excellent LITEK heat dissipation system as TCS (Thermal Cooling System) with automatic safety temperature control. Power supply 110/240Volt 50/60Hz, power factor corrected to cos-fi ≥0.95, insulation class 2 (class 1 on request), electronic ballast with very high efficiency microprocessor control and totally resin-coated (Made in Italy) with overvoltage protection up to 10kV both in common mode and in differential mode, max rated power 46W. Impact protection degree IK08, external bolts in stainless steel, weight about 6,5 Kg. CE certification. M24 male threaded connection suitable for the various accessories are available. Luminaire and driver are Made in Italy.

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
