Pardal-maxi

dowload pdf

pardal

pardal-maxi


Design R&D Litek

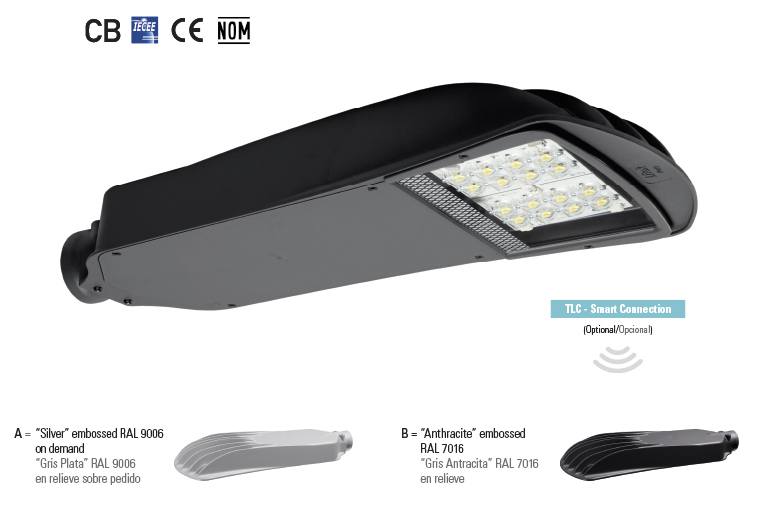

The latest generation of high performance LED street lighting in a pressure fused aluminum body (Litek R&D design). It has an innovative self-cleaning feature and minimal wind exposure specifically designed for LED technology. The lighting optic is sealed with a 4 mm extra clear tempered glass. It has recieved a protective treatment of anodizing aluminum with a long-lasting polyester powder exterior paint colour in “Silver” with embossed RAL 9006 (“Dark Smoke” RAL 7016 colour is available on request). There are different street lighting optics to choose from including standard neutral shades (4000° K), warm (3000° K), or very warm (2700° K). Certified light emissions have a full cut-off feature to eliminate light pollution, CB International standards certification. It has a new MULTICHIP LED which is ceramic based for direct welding, and electrically isolated from the heat dissipation system. The LED is powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature safety control. Power supply 110/260 Volt 50/60 Hz and cos-fi ≥0,9. Insulation class I or II. Minimum grade of protection: IP66, even in the absence of the storage compartment cover. Connection box with separate access from the optics compartment. Impact resistance: IK08. Anti-condensation system GORE-TEX® patented. Stainless steel bolts. Standard post attachement: d.60 mm. Other accessories available.

Applications
Highways, Roads, Streets, Motorways, Parking lots, roundabouts, Industrial areas, Storage areas.
Suggested installation height: 6 - 12 m.

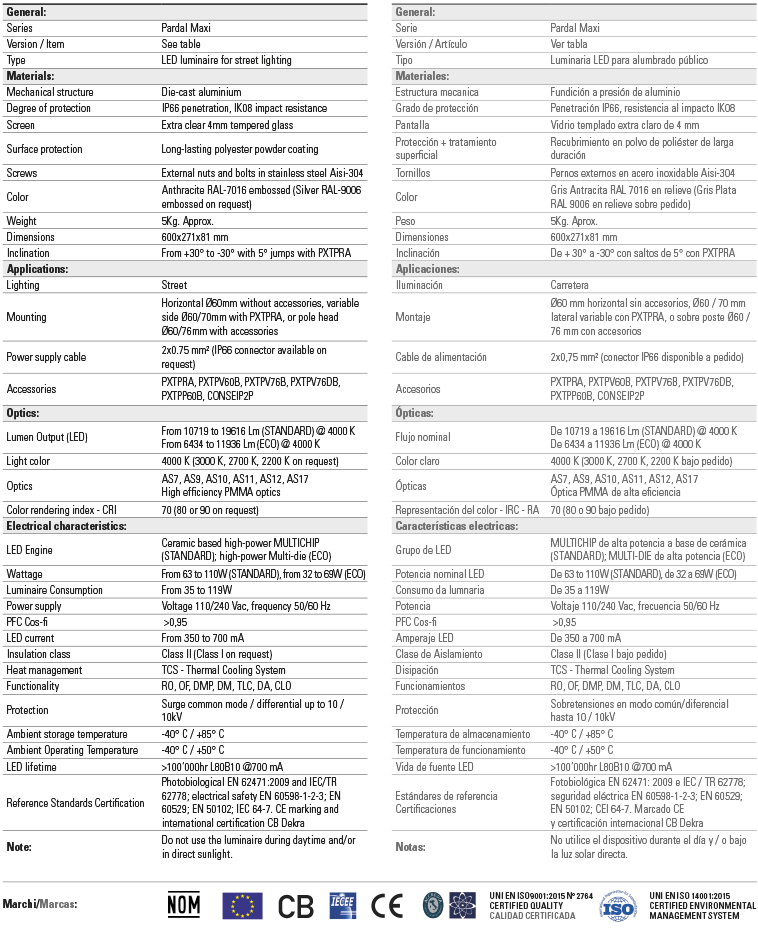

Characteristics
• LED designed pressure fused aluminium body
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass for security
• Anodized aluminum treatment
• Polyester powder painting, color “Silver” RAL 9006 embossed
• Grade of protection IP66
• Impact resistance IK08
• Insulation Class I or II
• TCS - Thermal Cooling System
• Total cut-off
• Stainless steel screws
• CB Certification N° NL-47547 issued by Dekra
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Overall dimensions: 580 x 270 x 70mm. Weight: 5 Kg

Advantages and options
• High performance and maximum management benefits
• Wide range of white tonality and high color rendering “Urban Renaissance by Litek”

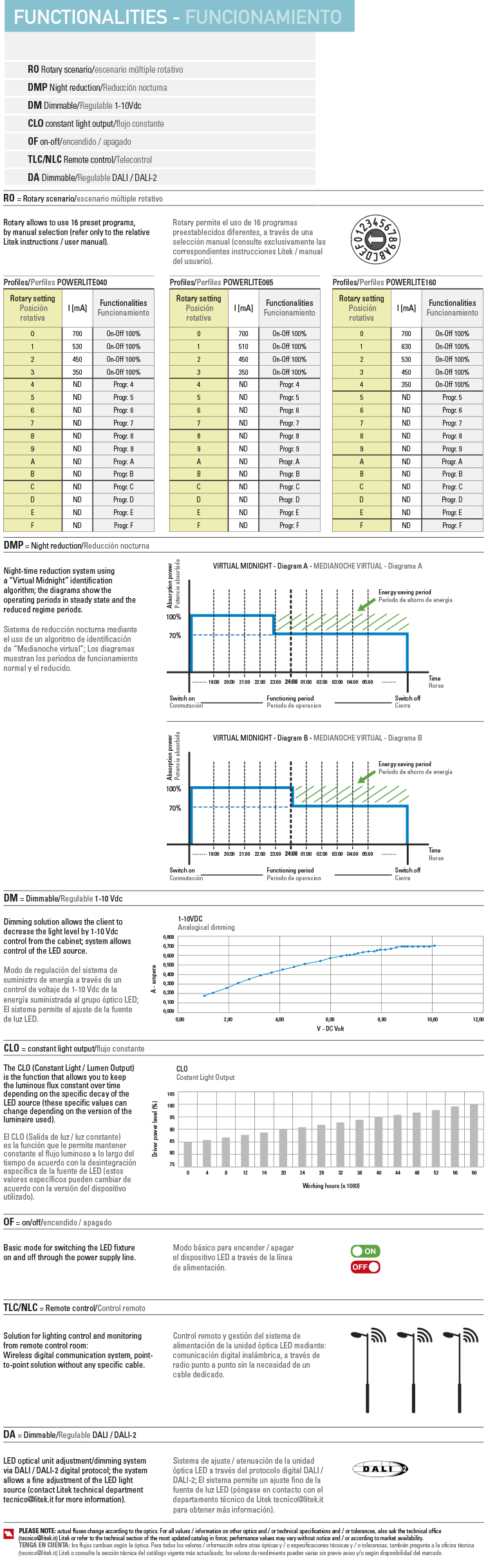

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Quick cleaning and minimal maintenance
• Option of supplementary protection against power-line surges
• Long-life reliability

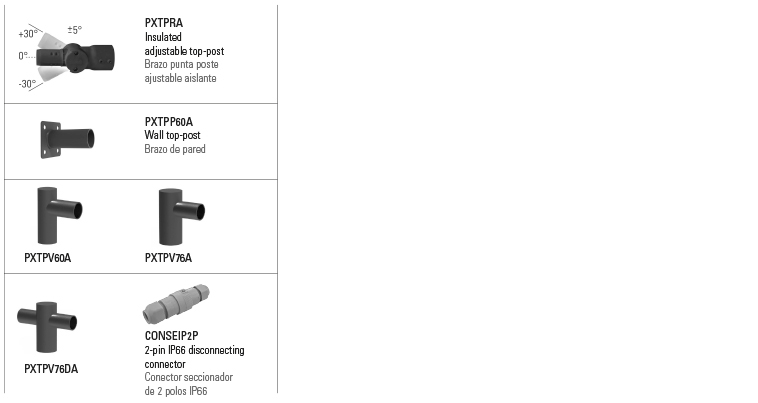

Mounting
Top post d. 60/76 mm
Vertical or horizontal
On post or wall



ottiche pardal

AS7 = Advance street

ottiche pardal

4AS7 = Very wide diffuser

ottiche pardal

AS7SA = Advance diffuser

ottiche pardal

AS8 = Cycling/Narrow street

ottiche pardal

AS9 = Narrow interpost

ottiche pardal

AS10 = ME street

ottiche pardal

AS11 = Spacing

ottiche pardal

AS12 = Wide Spacing

ottiche pardal

SA = Satin diffuser

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
