Fulgor 2

dowload pdf

fulgor2

fulgor2

Design R&D Litek

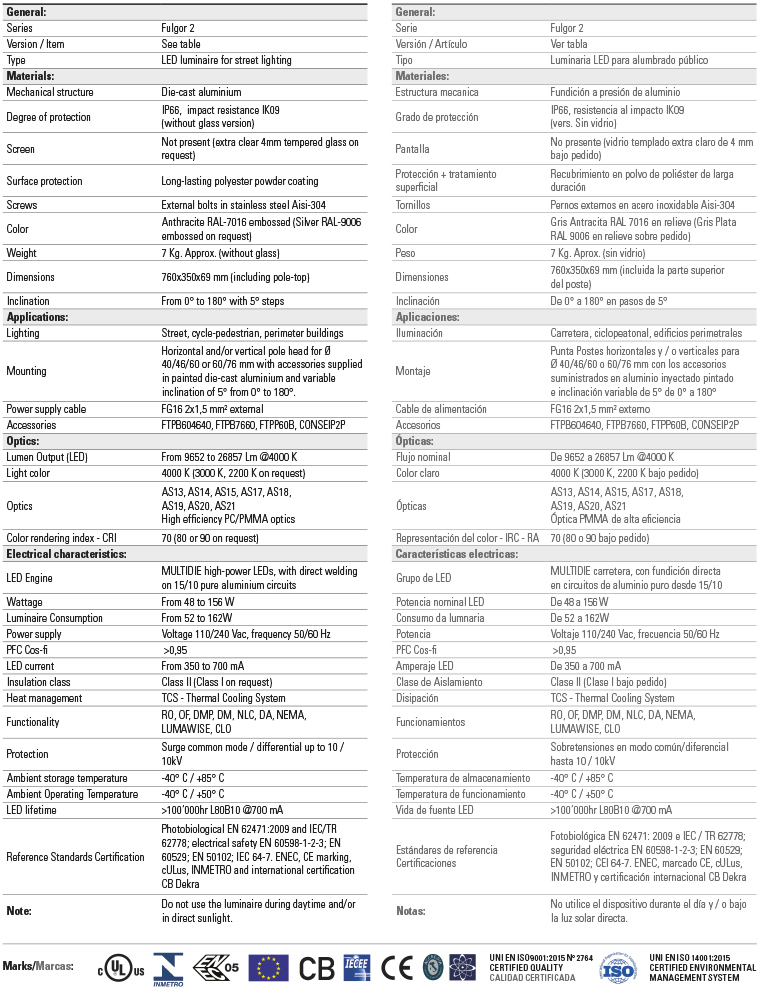

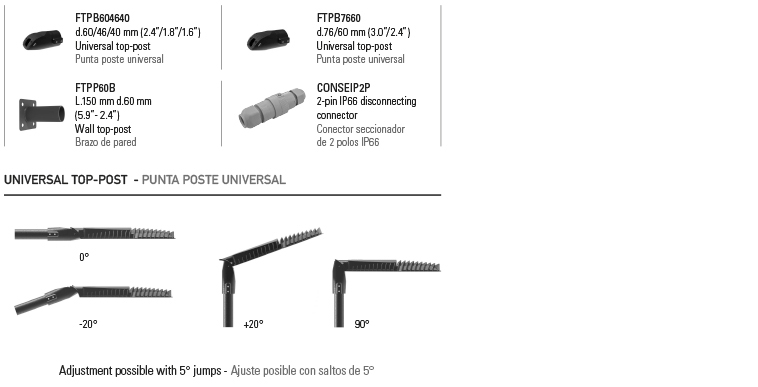

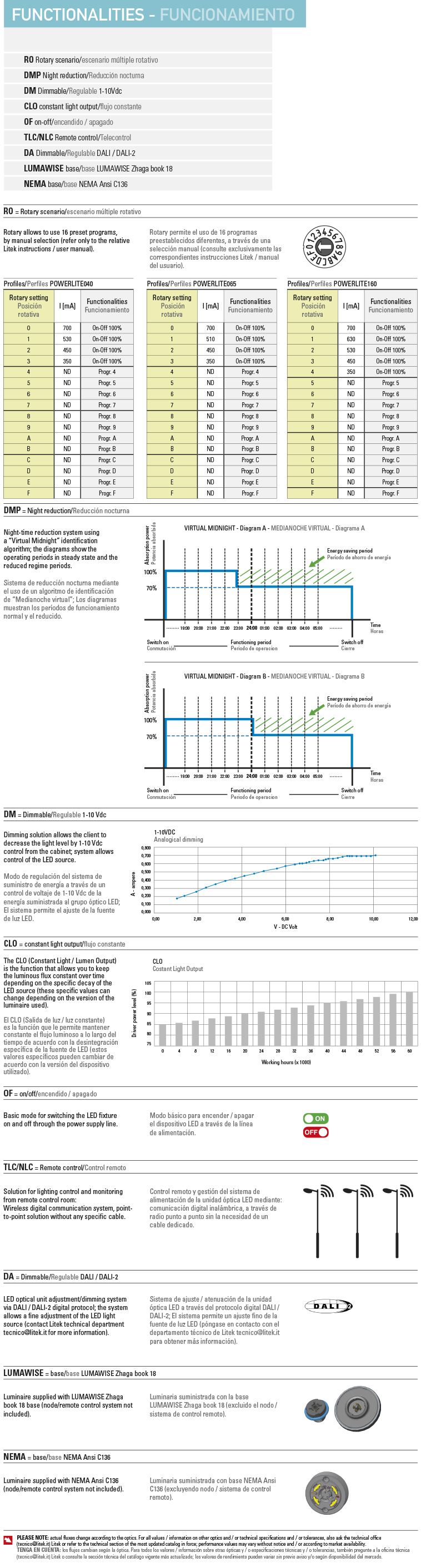

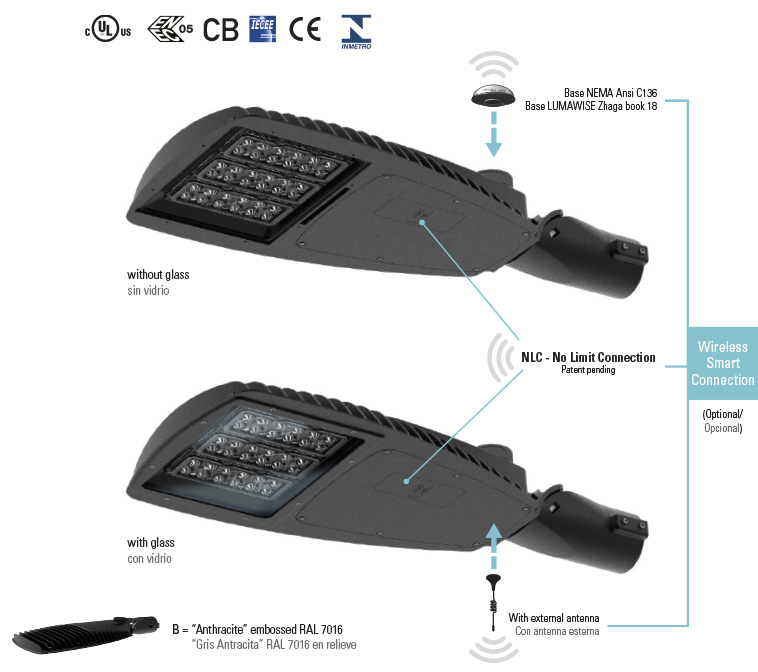

High efficiency and power LED street lighting fixture with body, adjustable post-top and technical compartment cover in die-cast aluminum (R&D Litek design), self-cleaning design and minimum exposure to the wind specifically designed for high heat exchange for the technology LED, IP66 sealed optical unit (flat protective screen in 4mm extra clear safety tempered glass, optional on request), long-lasting protective treatment with external coating in "Anthracite" RAL 7016 embossed polyester ("Silver" RAL 9006) embossed, or other color, on request). Road optics in PMMA with variable light distribution (AS13, AS14, AS715, AS16, AS17), neutral light 4000 K or warm 3000 K or very hot 2200 K, certified light emission totally cut-off according to LL.RR. against light pollution. Optical assemblies composed of high-power MULTIDIE street LEDs, with direct reflow on pure aluminum circuits from 15/10; LED driving in constant current Vdc (from 350 to 700 mA). Different types of operation / ignition (OF - RO - DMP - CLO - DM - TLC – DA - NEMA - ZHAGA); LITEK heat dissipation system TCS (Thermal Cooling System) with very high heat exchange and automatic temperature safety control. Power supply 110 / 240Volt 0/50 / 60Hz, power factor correction with cos-fi ≥0.95, insulation class 2 (class 1 on request), fully-efficient high-efficiency electronic control gear with microprocessor control (Made in Italy) with protection from overvoltages up to 10kV both in common mode and in differential mode, max nominal power 153W. Luminaire with IP66 degree of protection of both the technical compartment and the optical compartment, power cable entry via variable clamp cable gland and integrated patented anti-condensation system, IK08 impact protection degree. External stainless steel bolts, two different types of pole-type mounting suitable for vertical and / or horizontal shanks from Ø 40-46-60-76 mm and adjustable in steps of 5 ° from 0 ° to 180 °, dimensions 754x278x80 mm and weight 7 Kg. Various accessories available, CB Dekra international certification and CE marking.

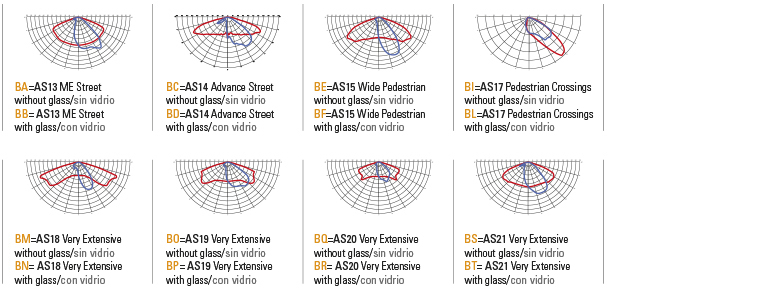

ottiche fulgor2

AS13 = ME Streets

ottiche fulgor2

AS14 = Advance Street

ottiche fulgor2

AS15 = Wide Pedestrian

ottiche fulgor2

AS16 = Frontal/Parking

ottiche fulgor2

AS17 = Pedestrian Crossings

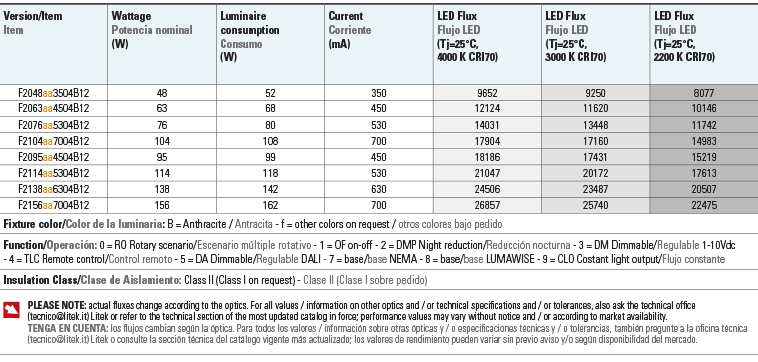

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
