Design R&D Litek

For the latest generation of LED street lighting in a city design,comes this classic square lantern in a pressure fused aluminum body with anodized treatment, painted with durable exterior polyester powder in “Dark Smoke” and RAL 7016 embossed (Litek R&D design). The optical unit is sealed with a protective screen of 4 mm tempered extra-clear glass (not available in 3D vers.). Choose from standard neutral shades of light (4000° K), warm (3000° K) or very warm (2700° K); and several different street optics or full cut off diffuser (not available in 3D vers.). The new MULTICHIP LED is ceramic based for direct welding,  electrically isolated from the heat dissipation system and powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature control. Power supply: 110/260Volt 50/60 Hz and cos-fi ≥0,9. Insulation class I or II. Minimum grade of protection: IP66. Impact resistant: IK08. Anti-condensation system GORE-TEX® patented. Stainless steel or insulated bolts.

Applications
Avenues, roads, parks and gardens, historical centres, cycle paths.
Suggested installation height: 3 - 7 m.

Characteristics
• LED designed pressure fused aluminium body
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass for security (not available in 3D vers.)
• Anodized aluminum treatment
• Polyester powder painting, color “Dark Smoke” RAL 7016 embossed
• Grade of protection IP66
• Impact resistance IK08
• Insulation Class I or II
• TCS - Thermal Cooling System
• Full cut-off (not for 3D vers.)
• Stainless steel or insulated screws
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark

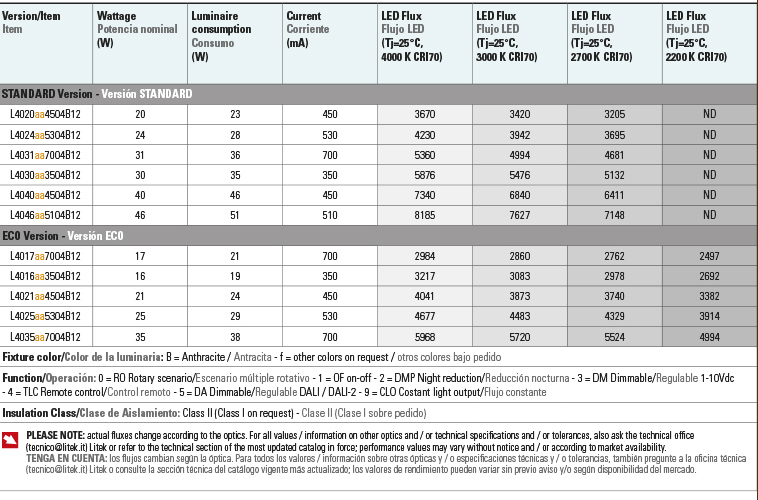

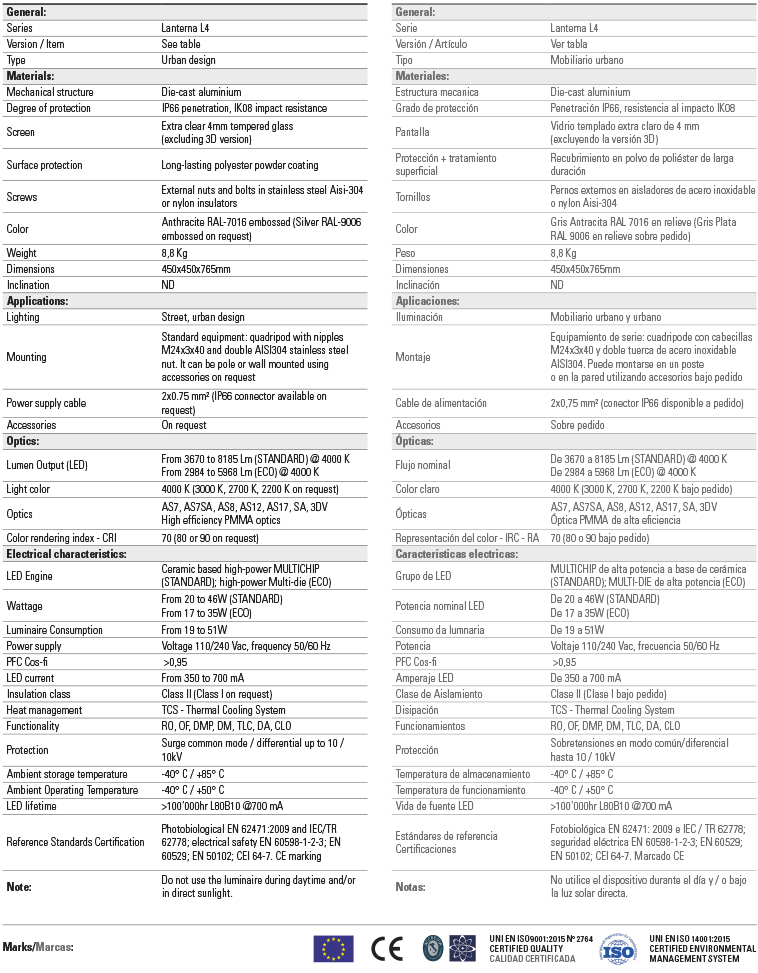

• Dimensions:

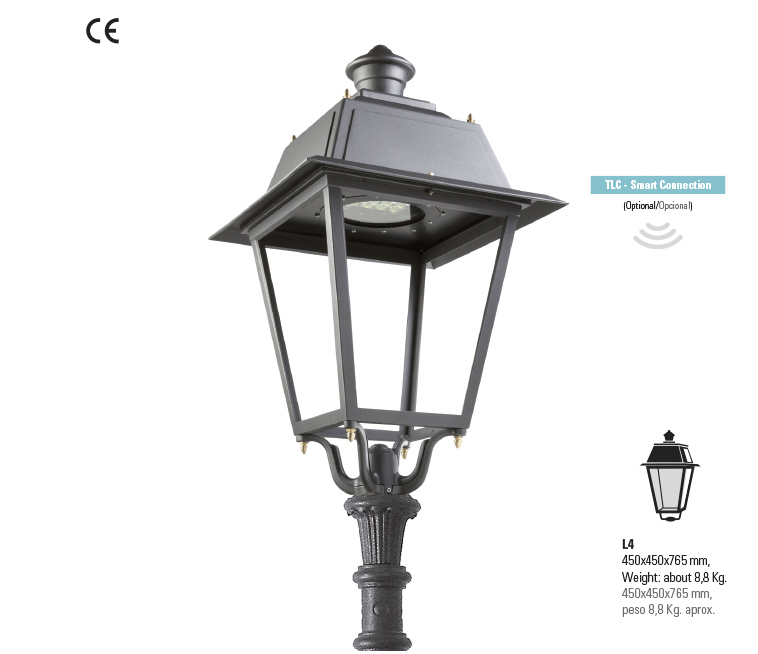

LANT33 = 300 x 300 x 650 mm. Weight: around 5.7kg
LANT44 = 400 x 400 x 750 mm. Weight: about 8.8 kg

Advantages and options
• High performance and maximum management benefits
• Wide range of white tonality and high color rendering “Urban Renaissance by Litek”

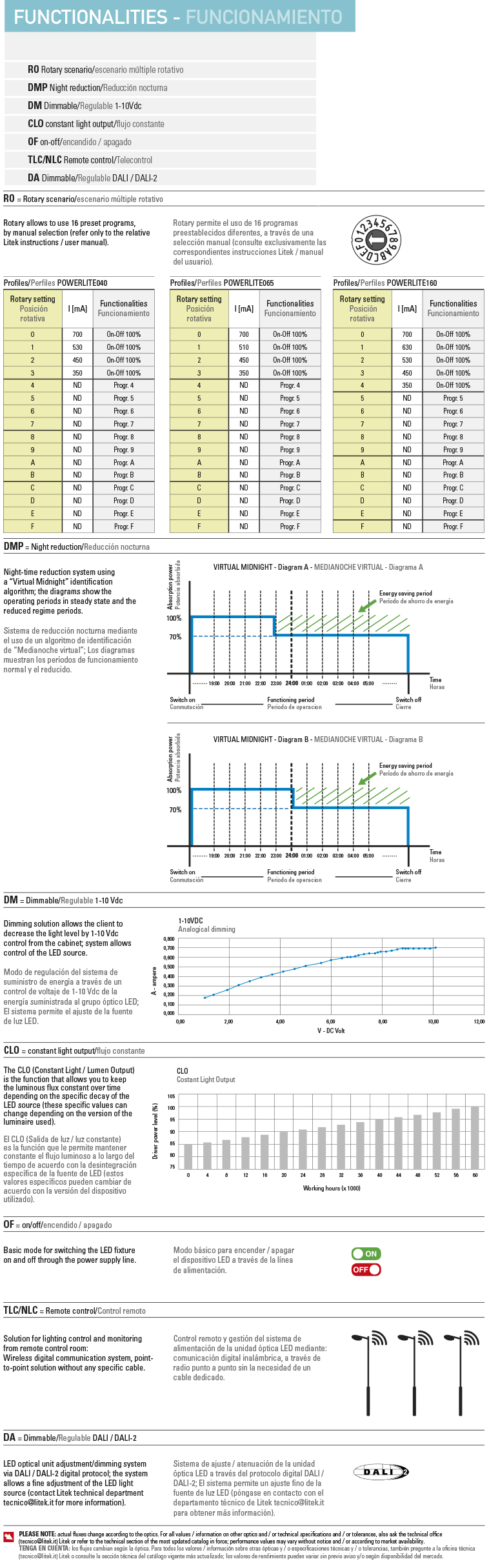

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Self-cleaning and minimal maintenance
• Option of supplementary protection against power-line surges
• Long life reliability


Mounting

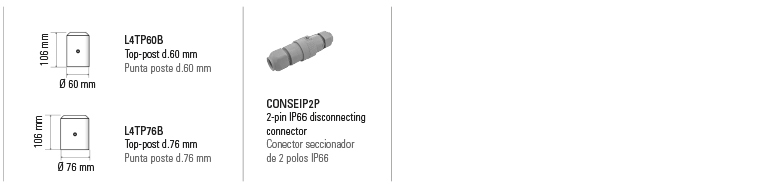

Quadripode with nipples M24x3x40 mm and double nut AISI304 stainless steel included, other equipment on demand.
On post or wall

realizzazione lanterna



ottiche lanterna

SA = Satin diffuser

ottiche lanterna

AS7 = Advance street

ottiche lanterna

4AS7 = Very wide diffuser

ottiche lanterna

AS7SA = Advance diffuser

ottiche lanterna

AS8 = Cycling/Narrow street

ottiche lanterna

AS9 = Narrow interpost

ottiche lanterna

AS10 = ME street

ottiche lanterna

AS11 = Spacing

ottiche lanterna

AS12 = Wide Spacing

ottiche lanterna

3DMU = Space diffuser

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
