Elio

dowload pdf

elio

Design R&D Litek

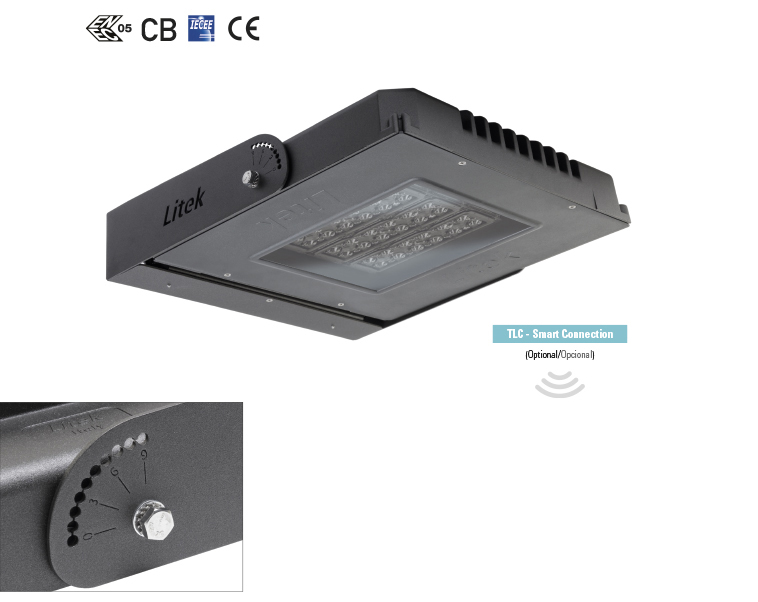

The latest generation of high performance LED projector specific for outdoor/indoor illumination, in pressure fused aluminum body (Litek R&D design), with innovative self-cleaning function, minimal wind exposure and reduced accumulation of dust specifically designed for LED technology. The lighting optic is sealed with a 4 mm tempered extra-clear glass protective screen and a protective anodizing aluminium treatment with a long-lasting polyester powder exterior paint in “Dark Smoke” and embossed RAL 7016 (“Silver” RAL 9006 colour is available on request). Different intensive and diffuser optics include standard neutral white (4000° K), or warm (3000° K) or very warm (2700° K) on demand. The new MULTICHIP LED is ceramic based for direct welding, electrically isolated from the heat dissipation system and powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature safety control, suitable for 24h functioning. Power supply: 110/260 Volt 50/60 Hz and cos-fi =0,9. Insulation class I or II. Minimum grade of protection: IP66 min. Connection box with separate access from the optics compartment. Impact resistance: IK08. Anti-condensation system GORE-TEX® patented. Stainless steel bolts. Wall/roof fixing by orientable and graduated bracket included.

Applications
Street lighting in suspended mode. Great range of mounting heights: 6 - 12 m.

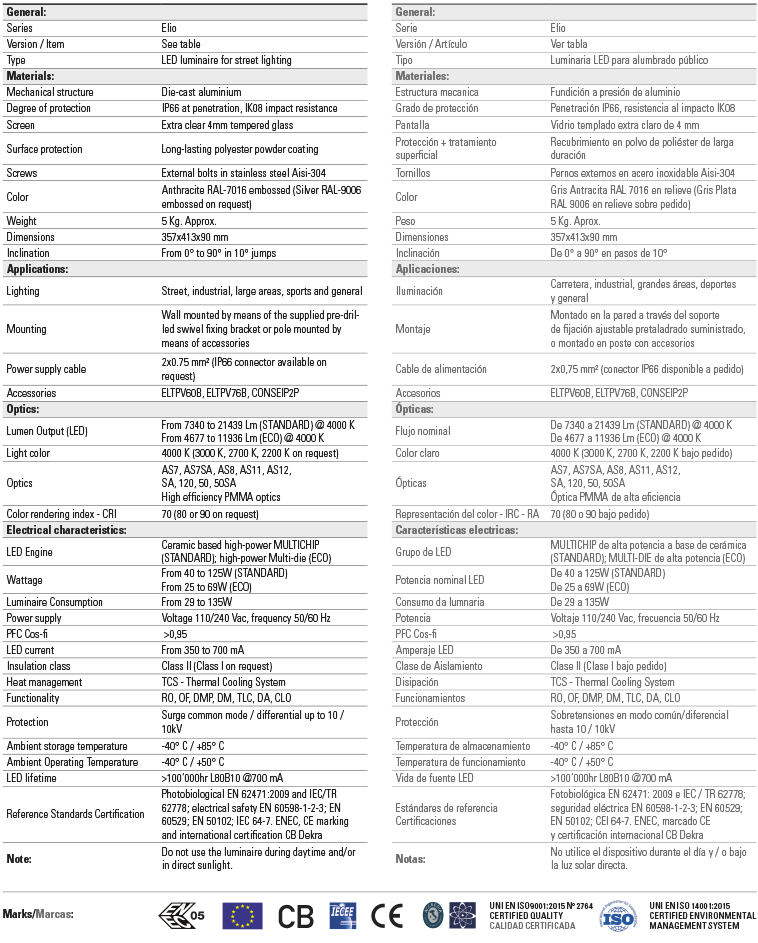

Characteristics
• Designed, under pressure fused aluminium and anodized aluminium chassis
• Anodized aluminum treatment
• Polyester powder paint colour: “Dark Smoke” and embossed RAL 7016 (“Silver” RAL 9006 colour is available on request)
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass
• IP66 Grade of protection, mounted
• Impact resistance: IK08
• Insulation Class I or II
• TCS - Thermal Cooling System
• Full cut-off
• Stainless steel or insulated outside screws
• CB international standards certification pending
• Photobiological safety, refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Dimensions 350x350 mm, weight 5 Kg.

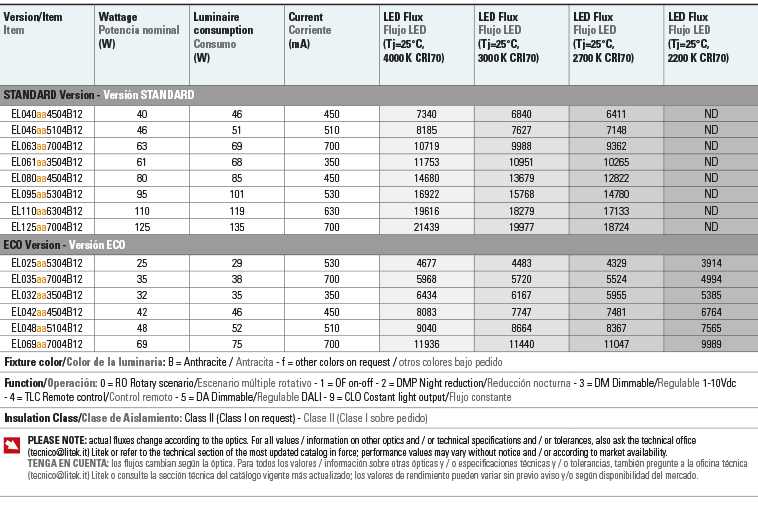

Advantages and Options
• Wide range of optics, power and colour
• Driver is included in the body

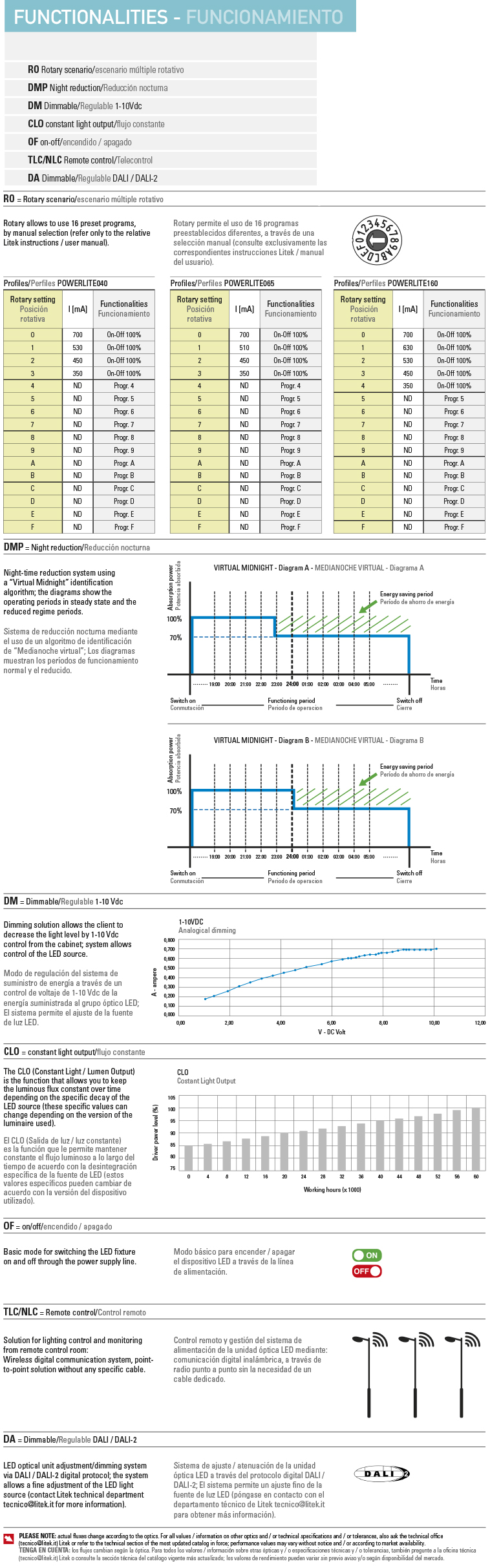

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Quick cleaning and minimal maintenance • Option of supplementary protection against line surges
• Long life reliability

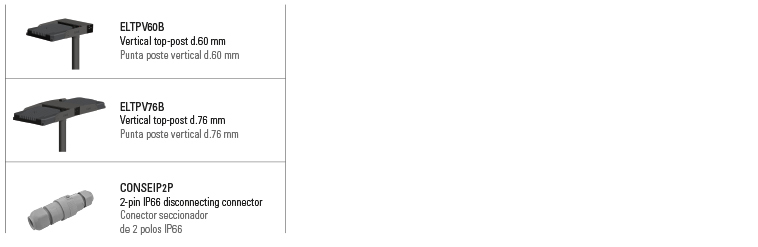

Mounting
Wall/roof fixing by orientable bracket included



ottiche elio

AS7 = Advance street

ottiche elio

4AS7 = Very wide diffuser

ottiche elio

AS7SA = Advance diffuser

ottiche elio

AS8 = Cycling/Narrow street

ottiche elio

AS9 = Narrow interpost

ottiche elio

AS10 = ME street

ottiche elio

AS11 = Spacing

ottiche elio

AS12 = Wide Spacing

ottiche elio

3DMU = Space diffuser

ottiche elio

CS = Central street

ottiche modulo universale

SA = Satin diffuser

ottiche elio

50 = Medium flood 50°

ottiche modulo universale

50SA = Medium flood 50SA

ottiche elio

120 = Wide flood 120°

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
