Design R&D Litek

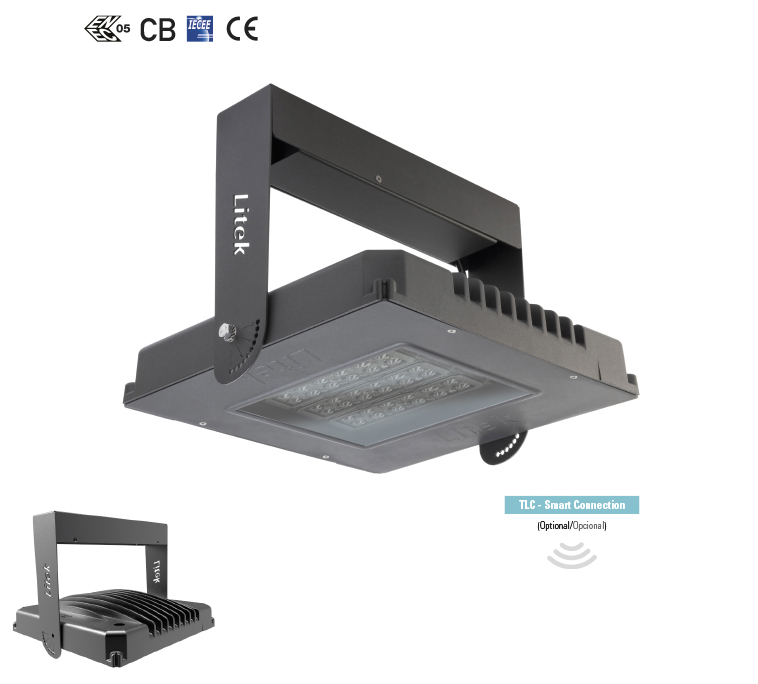

compact design, specifically designed for LED technology, sealed optical assembly and flat protective screen made of 4mm extra-clear tempered safety glass (or frosted on request), long-lasting protective treatment with polyester powder coating on exterior in color Anthracite RAL 7016 embossed (Silver RAL 9006 embossed, or other color, on request). PMMA optics with variable light distribution, neutral light shade 4000 K (available on request with light: warm 3000 K, very warm 2700 K, and very warm 2200 K). Optics assemblies composed of MULTICHIP ceramic-based power LEDs in the STANDARD version, and MULTIDIE high-power in the ECO versions, with direct re-melting on 15/10 pure aluminum circuits; LEDs electrically isolated from the thermal dissipation system, Vdc constant current LED driving system (350 to 700 mA). Various types of operation/ignition (RO, OF, DMP, DM, TLC, DA, CLO); LITEK redundant TCS (Thermal Cooling System) heat dissipation system with automatic safety temperature control, also suitable for h24 operation. Power supply 110/240Volt 50/60Hz, rephased to cos-fi≥0.95, class II insulation (class I on request), electronic power supply with very high efficiency microprocessor control totally resined (Made in Italy) with overvoltage protection up to 10kV both common mode and differential mode, max rated power 125W. IP66-rated fixture, PC-filled accessory compartment cover, cable connection box with separate access from optical compartment, wall/ceiling mounting bracket adjustable to 10° angles included. Impact protection rating IK08, stainless steel external hardware, overall dimensions including bracket 350x414x88 mm and weight 5 kg. CB international certification, ENEC and CE marking. Made in Italy fixture and driver.
