Everest

dowload pdf

everest

Design R&D Litek

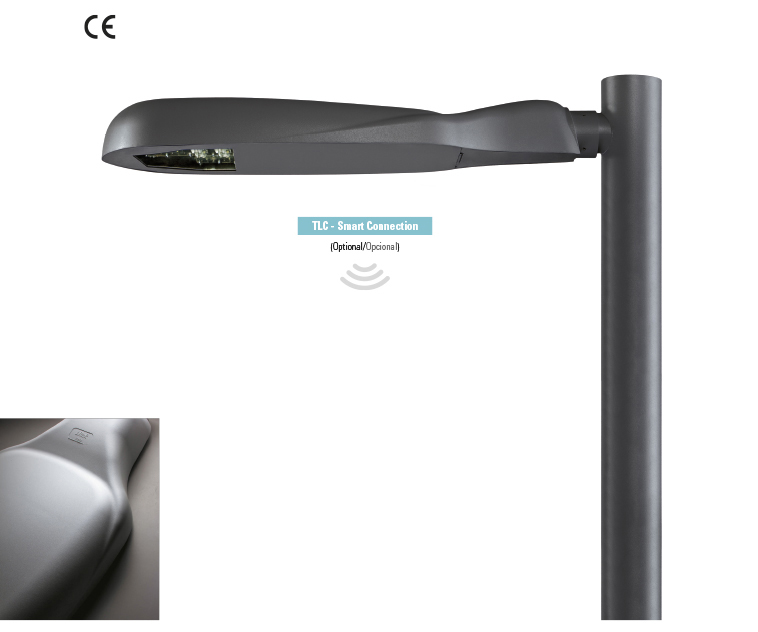

Self-cleaning soft street lighting in a pressure fused aluminum body (Litek R&D design) specificlly designed for LED technology to create minimal wind exposure. The lighting optic has a 5 mm protective screen of tempered extra clear safety glass and an  anodizing aluminum protective treatment with a long-lasting polyester powder exterior paint colour in “Silver” with embossed RAL 9006 (“Dark Smoke” RAL 7016 colour is available on request) . There are different street lighting optics to choose from including standard neutral shades (4000° K), warm (3000° K), or very warm (2700° K). Light emissions are certified for full cutoff, eliminating light pollution. The new MULTICHIP LED is ceramic base for direct welding and electrically isolated from the heat dissipation system, powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature safety control. Power supply: 110/260 Volt 50/60 Hz and cos-fi ≥0,9. Insultation class I or II.  Minimum protection grade: IP65. Connection box with separate access from the optics compartment. Impact resistance: IK08. Anti-condensation system GORE-TEX® patented. Stainless steel bolts. Horizontal top post d.60mm. Other accessories available.

Applications
Highways, Roads, Streets, Motorways, Parking lots, roundabouts, Industrial areas, Storage areas.
Suggested installation height 6 - 11 m.

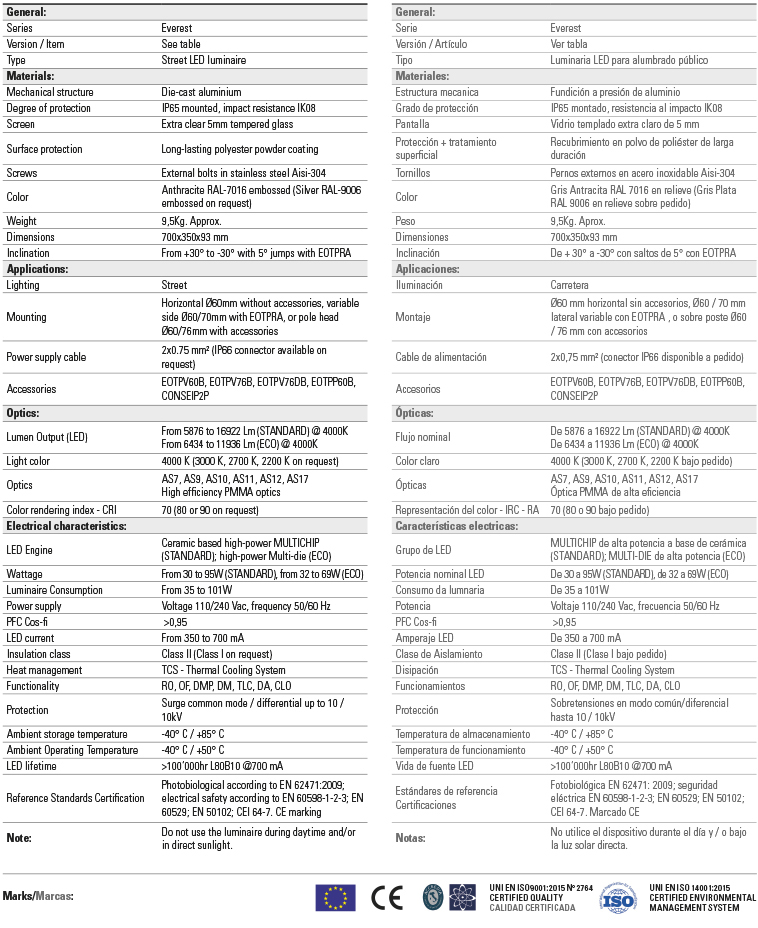

Characteristics
• LED designed pressure fused aluminium body
• High efficiency PMMA optics
• Flat protective diffuser with 5 mm extra clear tempered glass for security
• Anodized aluminum treatment
• Polyester powder paint colour, “Silver” with embossed RAL 9006 (“Dark Smoke” RAL 7016 colour is available on request)
• Grade of protection IP65
• Impact resistance: IK08
• Insulation Class I or II
• TCS - Thermal Cooling System
• Full cut-off
• Stainless steel screws
• Photobiological safety refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Overall dimensions: 700 x 350 x 90 mm. Weight: 9.5 kg

Advantages and options
• High performance and maximum management benefits
• Wide range of white tonality and high color rendering “Urban Renaissance by Litek”

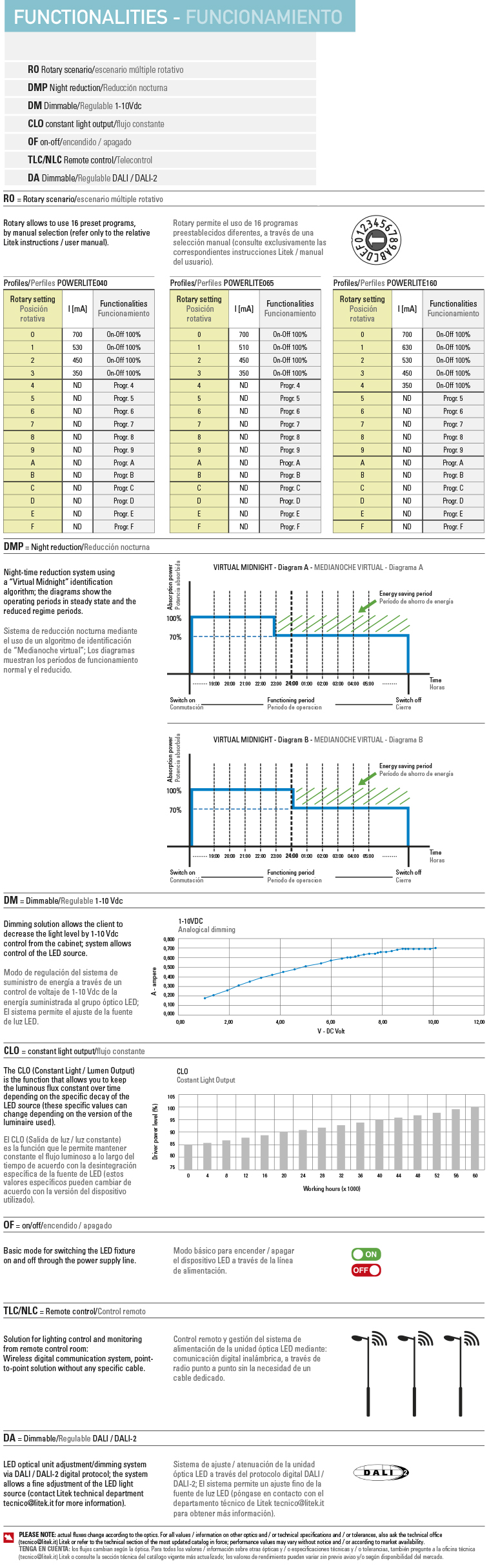

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Self-cleaning and extremely reduced maintenance
• Option of supplementary protection against power-line surges
• Long-life reliability

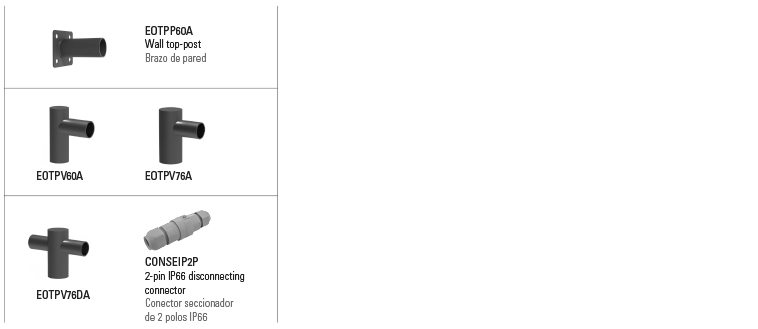

Mounting
Top post d. 60/76 mm
Vertical or horizontal
On post or wall

realizzazione everest

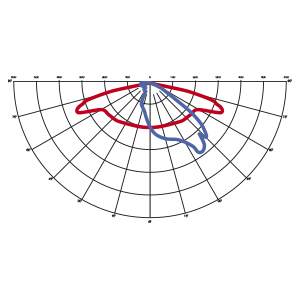

ottiche everest

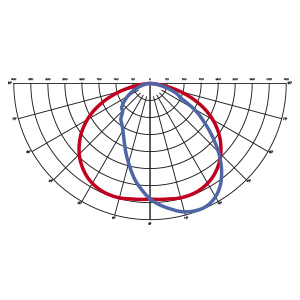

AS7 = Advance street

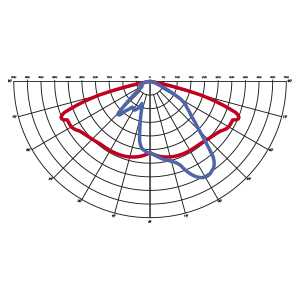

ottiche everest

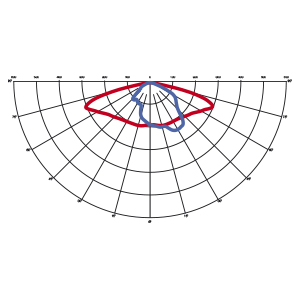

AS7SA = Advance diffuser

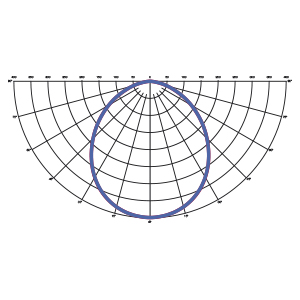

ottiche everest

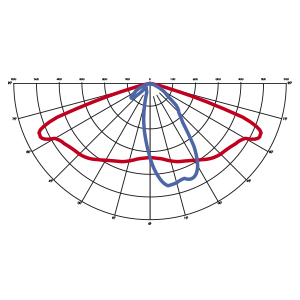

AS8 = Cycling/Narrow street

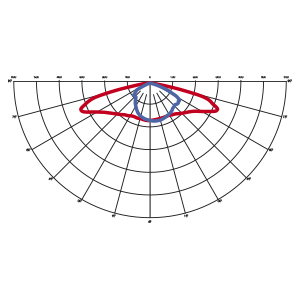

ottiche everest

AS9 = Narrow interpost

ottiche everest

AS10 = ME street

ottiche everest

AS11 = Spacing

ottiche everest

AS12 = Wide Spacing

ottiche everest

SA = Satin diffuser

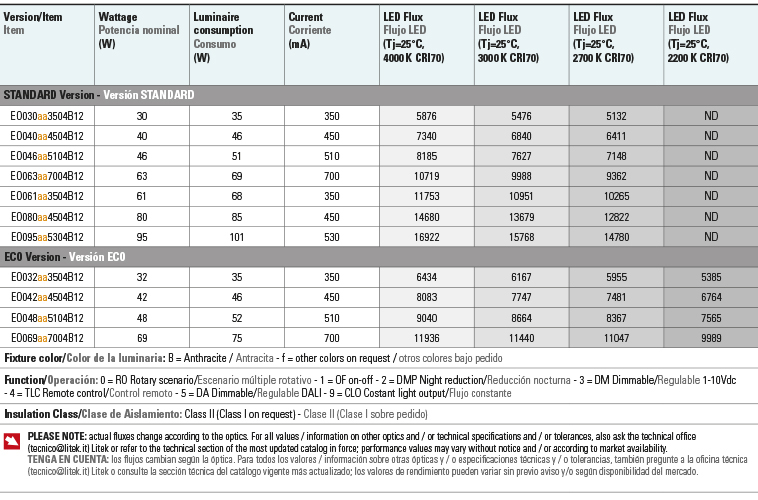

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
