Brique

dowload pdf modulo universale

brique

realizzazioni brique

Design R&D Litek

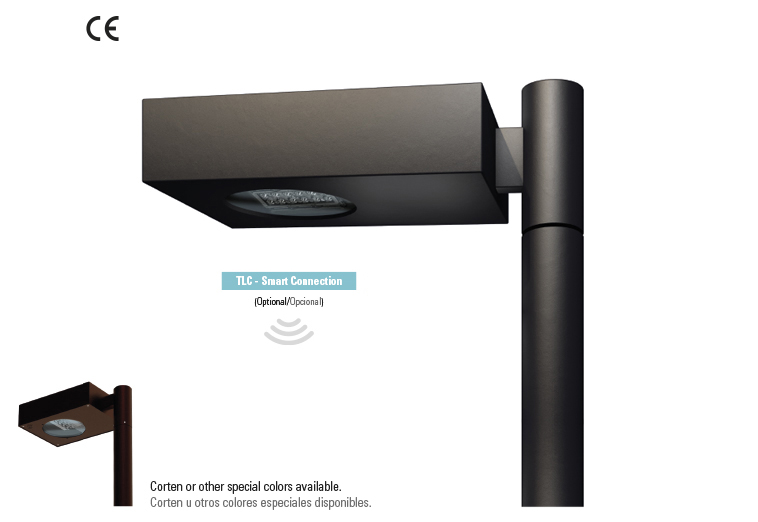

The latest generation of urban design for street light fixtures. (Litex R&D design). The upper body is made with STAINLESS STEEL AISI304 and painted with durable exterior polyester powder in “Dark Grey” and RAL 7016 embossed. The substructure is in black anodized aluminum. The whole unit is specifically designed for LED technology, with the optical unit sealed with a 4 mm tempered extra-clear glass protective screen (excluding vers. 3D). Choose from a standard neutral shade of light (4000° K), warm (3000° K) or very warm (2700° K) and between several different street optics or full cut off diffuser (excluding vers. 3D). The new MULTICHIP LED is ceramic based for direct welding and electrically isolated from the heat dissipation system, powered by constant current Vdc. There are different functions including the LITEK heat dissipation system, TCS (Thermal Cooling System) and automatic temperature control. Supply: 200/300Volt 50/60 Hz and cos-fi ≥0,9. Insulation class 1 or 2. Minimum grade of protection: IP66. Impact resistant: IK08. Anti-condensation system GORE-TEX® patented. Stainless steel or insulated bolts.

Applications
Avenues, roads, streets, parking lots, roundabouts, cycle paths.
Suggested installation height 3 - 7 m.

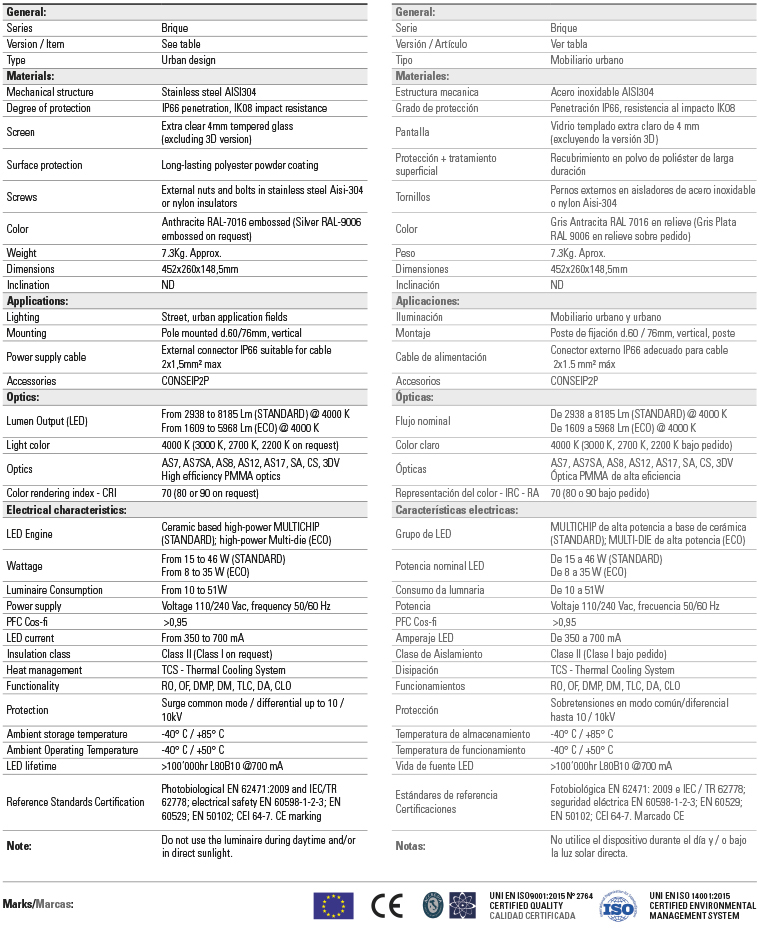

Characteristics
• Body in STAINLESS STEEL AISI304
• High efficiency PMMA optics
• Flat protective diffuser with 4 mm extra clear tempered glass for security (not available in 3D vers.)
• Polyester powder paint in “Dark Grey”; RAL 7016 embossed
• Grade of protection: IP66
• Impact resistance: IK08
• Insulation Class 1 or 2
• TCS - Thermal Cooling System
• Full cut-off (not available in 3D vers.)
• Stainless steel or insulated screws
• Photobiological safety, refer to EN 62471:2008 and IEC/TI 62471:2009
• Made in Italy - EU - CE mark
• Dimensions: 450x300 mm and h.110 mm. Fixture weight: 7,3 kg approximately.

Advantages and Options
• High performance and maximum management benefits
• Wide range of white tonality and high colour rendering: “Urban Renaissance by Litek”

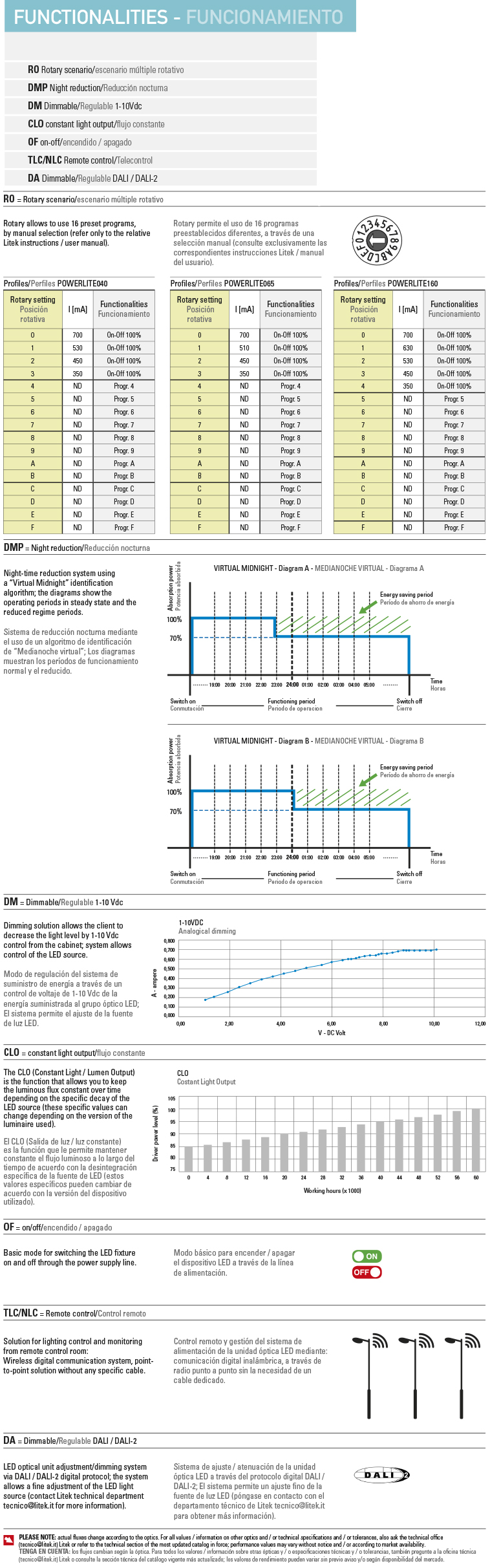

• Functional versions: OF - RO - DMP - DM - TLC - DA - V12 - V24
• Automatic temperature control
• Dimmable/Programmable
• Self cleaning and minimal maintenance
• Option of supplementary protection against power-line surges
• Long life reliability

Mounting
Top post d.60/76 mm
Vertical
On post



ottiche modulo universale

SA = Satin diffuser

ottiche brique

AS7 = Advance street

ottiche brique

4AS7 = Very wide diffuser

ottiche brique

AS7SA = Advance diffuser

ottiche brique

AS8 = Cycling/Narrow street

ottiche brique

AS9 = Narrow interpost

ottiche brique

AS10 = ME street

ottiche brique

AS11 = Spacing

ottiche brique

AS12 = Wide Spacing

ottiche brique

3DMU = Space diffuser

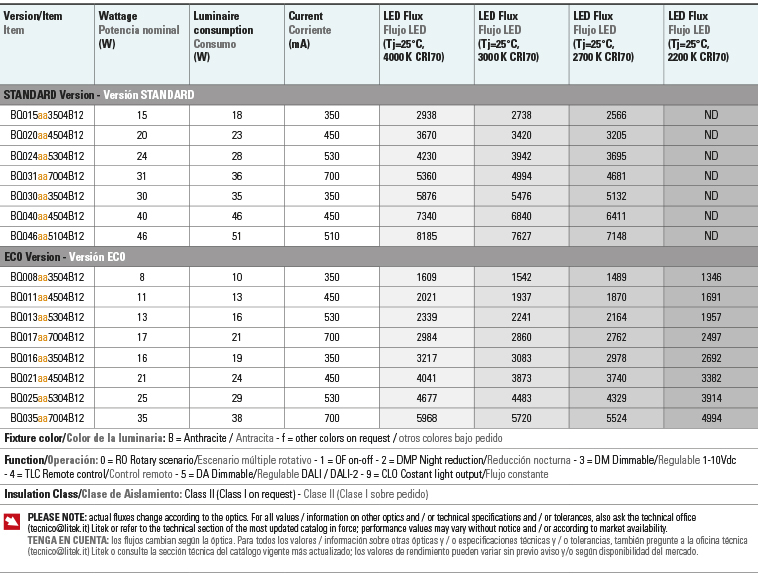

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it

Flat protective diffuser with 4 mm extra clear tempered glass (not available in 3D vers.)
