Design R&D Litek

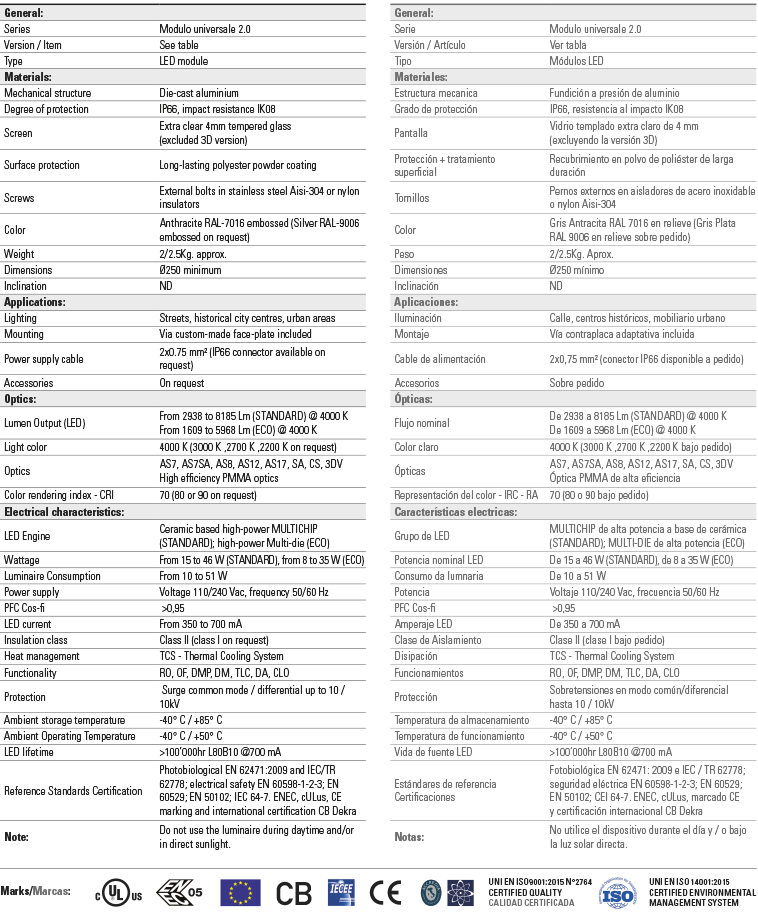

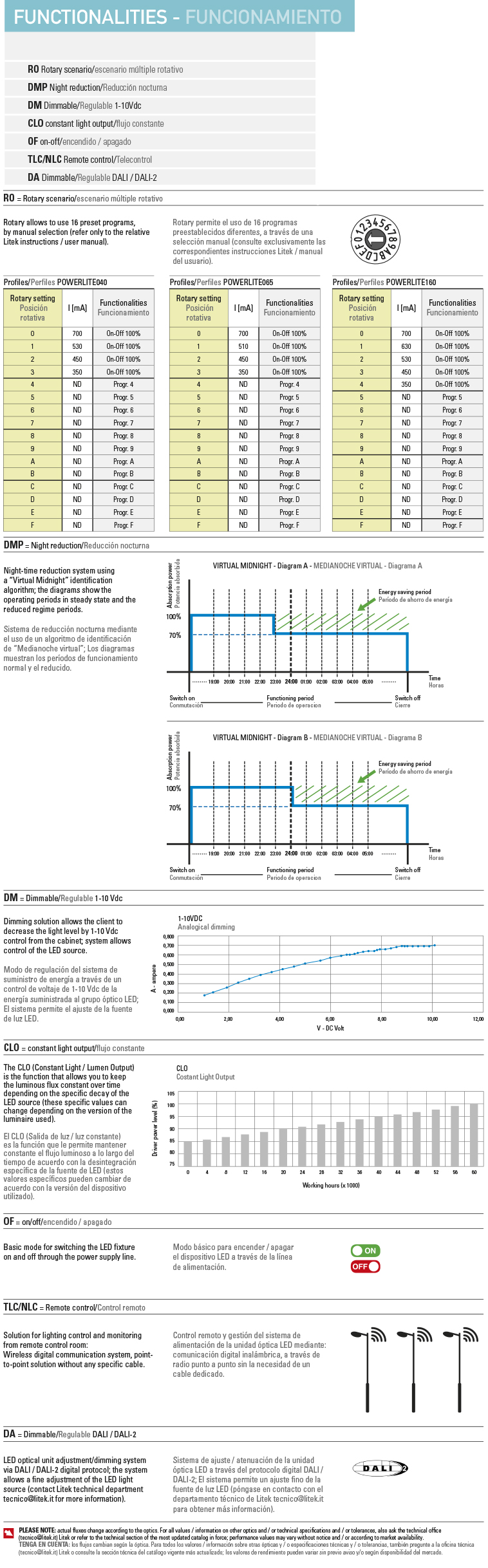

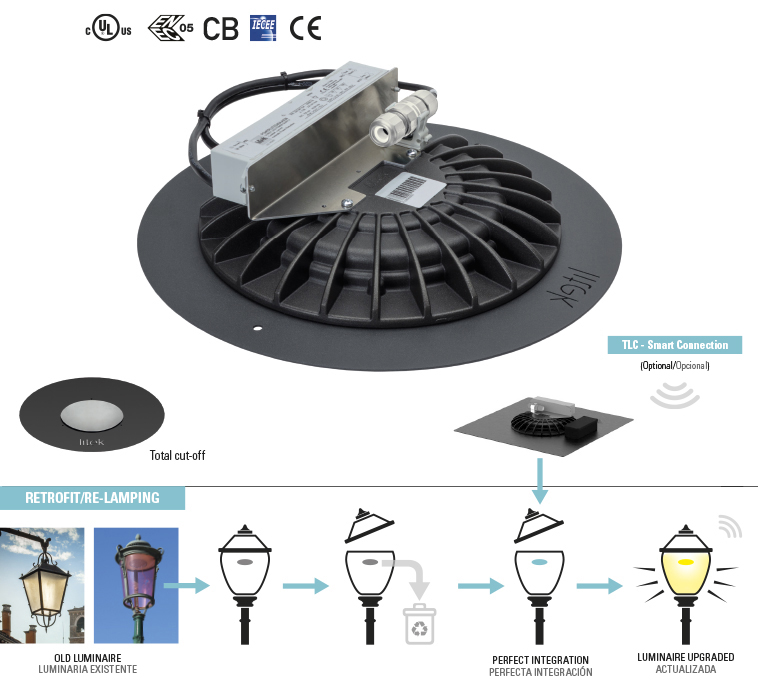

Independent LED module (design R&D Litek) both from an electrical and mechanical point of view, with very high performance, for requalification of existing luminaires/ lanterns specifically designed for LED technology. Die-cast aluminium mould with long-lasting protective anodized aluminium treatment and subsequent external “Anthracite” RAL 7016 embossed polyester powder coated (“Silver” RAL 9006 embossed, or other colours on request) and custom-made anodized aluminium face plate and long-lasting anthracite polyester powder coated, with a potective screen in extra-clear 4 mm tempered glass (excluding 3D version). Neutral light colour 4000 K (available on request: warm 3000 K, warmer 2700 K, and very warm 2200 K), totally cut-off certified light emission according to Standards against light pollution. Optics are made of a ceramic- based high power LED MULTICHIP in the STANDARD version, and high-power MULTIDIE in the ECO versions, with direct welding on 15/10 pure aluminium circuits; LEDs are electrically isolated from the heat dissipation system, Vdc constant current LED driving system (from 350 to 700 mA). Several types of functionalities/ignition (RO, OF, DMP, DM, TLC, DA, NFC, NEMA, LUMAWISE, CLO); high level LITEK heat dissipation system as TCS (Thermal Cooling System) with automatic safety temperature control. Power supply 110/240Volt 50/60Hz, power factor corrected to cos-fi ≥0.95, insulation class 2 (class 1 on request), electronic ballast with microprocessor control with very high efficiency and totally resin-coated (Made in Italy) with overvoltage protection up to 10kV both in common mode and in differential mode, max rated wattage at 46W; fast power connection joint. Impact protection degree IK08, IP66, stainless steel external bolts, weight 2/2,5 Kg. International certification CB, ENEC and CE marking. Luminaire and driver are Made in Italy.

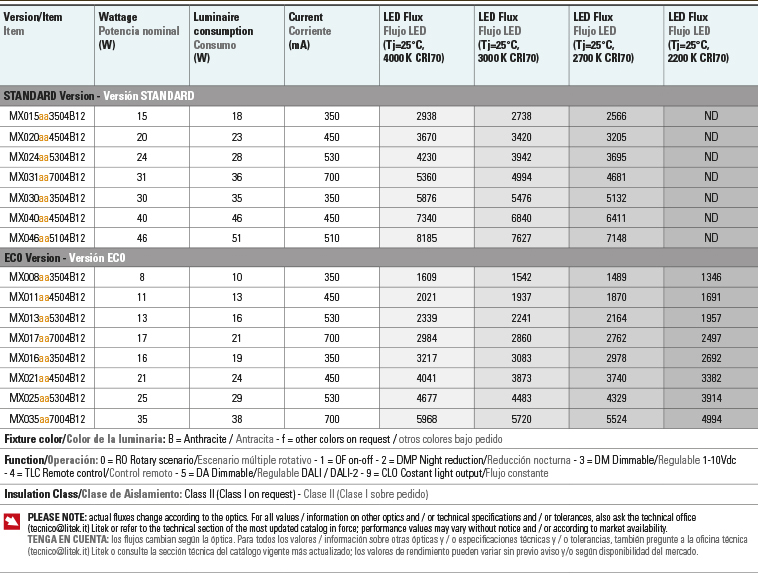

All above specifications are not binding. Litek reserves itself the right to make modifications at any time to apport product improvements. For any technical enquire, product data sheet or lighting schemes, Light Flux (Lm) please contact: tecnico@litek.it
